Swapping Connector Terminal for Energy Storage Energy Storage Connector Power 300A

Swapping Connector Terminal for Energy Storage Energy Storage Connector Power 300A

FOB Reference Price: Get Latest Price

≥20 Pieces

US $9.99

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Metabee

Model Number:: Energy Storage Battery Connectors

Contact Material:: Copper / Copper alloy

Material:: Pa66 Nylon Zinc Rubber Brass Metal Plastic

Insulation material:: PVC PE

Conductor material:: Aluminum

Number of cores:: Single-core

Rated Current:: 60A 100A 120A 150A 200A 250A 350A

Contact Size:: 6mm / 8mm / 12mm / 14mm

Rated Voltage:: 1500V DC Max

Certificate:: CE ROHS ISO9001

Quick Details

Type:: HV Connector

Application:: Automotive

Gender:: Female

Place of Origin:: Guangdong, China

Brand Name:: Metabee

Model Number:: Energy Storage Battery Connectors

Contact Material:: Copper / Copper alloy

Material:: Pa66 Nylon Zinc Rubber Brass Metal Plastic

Insulation material:: PVC PE

Conductor material:: Aluminum

Number of cores:: Single-core

Rated Current:: 60A 100A 120A 150A 200A 250A 350A

Contact Size:: 6mm / 8mm / 12mm / 14mm

Rated Voltage:: 1500V DC Max

Certificate:: CE ROHS ISO9001

180 ⁺ Countries

30,000 ⁺ Project Cases

Products Description

Connector for Energy Storage Systems

1. Ensuring Safety in Energy Storage Systems
2. Professional Design Meeting Technical Requirements
3. Flexibility to Meet Specific Application Needs
4. 360-Degree Rotation for Optimal Cable Arrangement
5. Convenient Drawer-Style Slide-In Connection

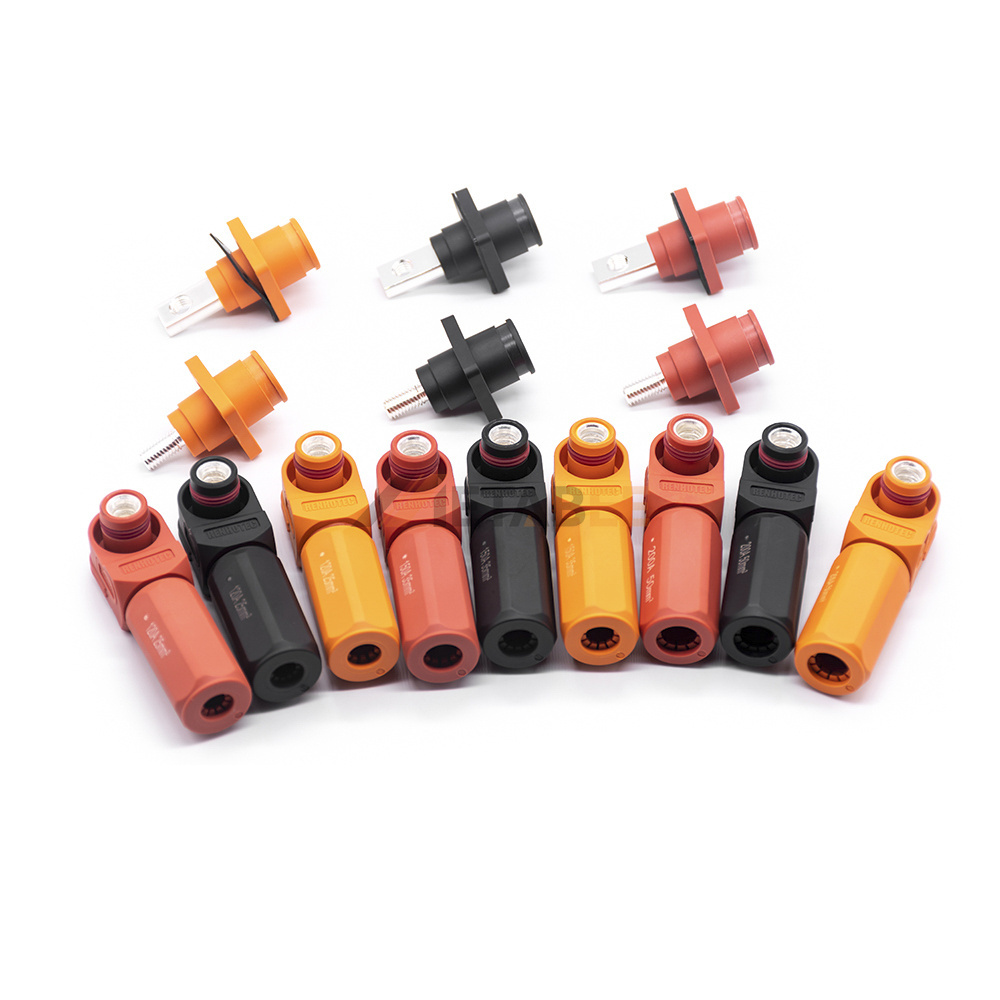

S uitable for Installation Environment , Three Colors Available

To adapt to various installation scenarios, energy storage connector plugs are typically curved. However, we can also provide straight plugs upon request. Our connectors are available in orange, red, and black.

Custom Wire Harnesses

We provide customizable energy storage connector harnesses ranging from 60A to 350A rated current and 10mm² to 95mm² wire sizes.

Three Types of Terminals are Available

Energy storage connector receptacles are available with three terminal types: copper plate thread, female thread, and male thread.

Choose the socket with the appropriate terminal block based on your specific installation environment.

Unique Contact Piece Design

Our connectors use the Flexcoils finger technology, small size, high current carrying capacity, compared to the same size of the terminal, can have more current.

Anti-mistake Touch & 360°Rotation & Slide-in Connection

When the plug is inserted into the socket, you will hear a 'click' . Press the button to pull out the plug.

MeManufacturer	Metabee
Type	Plug / Socket
Orientation	Straight / Right Angled
Contact Size	6mm / 8mm / 12mm / 14mm
Rated Current	60A - 350A (MAX)
Insulation Resistance	≥1000MΩ
Rated Voltage	1000V DC
Withstand Voltage	2500V AC
Shielding	Shielded / Unshielded
Contact Finish	Silver
Protection Rating	IP54 / IP67
Color	Orange / Red / Black
Contact Material	Cooper Alloy , Silver Plating
Temperature Range	-40°C~ +105°C
