Quick Details
-
Automatic Grade:
-
Manual
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Swing over gap:
-
476mm
-
Spindle taper:
-
M.T.5
-
Step of speed:
-
1000mm
-
Step of spindle speed:
-
8
-
Cross travel:
-
170mm
-
Function:
-
Metal Turning
-
Barrel diameter:
-
32mm
-
Width of bed:
-
186mm
-
Power(W):
-
1.5KW
-
Max. Swing Diameter:
-
330mm
-
Certification:
-
CE, ISO9001, BV
-
Power (kW):
-
3
Quick Details
-
Max. Length of Workpiece (mm):
-
1000
-
Place of Origin:
-
Jiangsu, China
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Swing over gap:
-
476mm
-
Spindle taper:
-
M.T.5
-
Step of speed:
-
1000mm
-
Step of spindle speed:
-
8
-
Cross travel:
-
170mm
-
Function:
-
Metal Turning
-
Barrel diameter:
-
32mm
-
Width of bed:
-
186mm
-
Power(W):
-
1.5KW
-
Max. Swing Diameter:
-
330mm
-
Certification:
-
CE, ISO9001, BV
-
Power (kW):
-
3
Machine Features for Hoston Chinese Manufacturer Jet Metal Lathe Craigslist For Sale
• Supersonic frequency hardened bed ways
•Precision roller bearing for spindle
• High quality steel, ground and hardened gear inside headstock
• Easy and fast operating gearbox
• Enough strong power motor
• ASA D4 camlock spindle nose
• Various threads cutting functions available
Technical Parameter for Hoston Chinese Manufacturer Jet Metal Lathe Craigslist For Sale
|
Model |
CZ1340G/1 /CZ1440G/1 |
CZ1340G/CZ1440G |
|
|
Swing over bed |
Φ330mmΦ355mm |
Φ330mm /Φ355mm |
|
|
Swing over carriage |
Φ195mm /Φ220mm |
Φ195mm/Φ220mm |
|
|
Swing Over gap |
Φ476mm/Φ500mm |
Φ476mm/Φ500mm |
|
|
Width of bed-way |
186mm |
186mm |
|
|
Distance between centers |
1000mm |
1000mm |
|
|
Taper of spindle |
M.T.5 |
M.T.5 |
|
|
Spindle diameter |
Φ38mm (Φ51 mm) |
Φ38mm (Φ51 mm) |
Φ38mm |
|
Step of speed |
8 |
8 |
8 |
|
Range of speed |
70~2000rpm |
84-1850rpm |
70-2000rpm |
|
Head nose |
D1-4 |
D5 with D5' chuck |
D1-4 |
|
Metric thread |
26kinds (0.4~7mm) |
23kinds (0.25-11mm) |
|
|
Inch thread |
34kinds (4-56T.P.I) |
40kinds(4 ~ 112T.P.I) |
|
|
Module thread |
16kinds(0.35-5M.P) |
/ |
|
|
Diametral thread |
36kinds (6-104D.P) |
/ |
|
|
Longitudinal thread |
0.052~1.392mm/r (0.002"~0.0548") |
0.091~2.533mm/r (0.0036"~0.1005") |
0.091~2.533mm/r (0.0036"~0.1005") |
|
Cross feeds |
0.014~0.38mm/r (0.00055"~0.015") |
0.025~0.69mm/r (0.0012"~0.00345") |
0.025 ~ 0.69m m/ r (0.0012" ~ 0.00345” ) |
|
Diameter lead screw |
Φ22mm(7/8") |
Φ22mm(7/8") |
Φ22mm(7/8") |
|
Pitch of lead screw |
3mm or 8T.P.I |
3mm or 8T.P.I |
3mm or 8T.P.I |
|
Saddle travel |
1000mm |
1000mm |
1000mm |
|
Cross travel |
170mm |
160mm |
170mm |
|
Compound travel |
74mm |
70mm |
74mm |
|
Barrel travel |
95mm |
95mm |
95mm |
|
Barrel diameter |
Φ32mm |
Φ32mm |
Φ32mm |
|
Taper of center |
M.T.3 |
M.T.3 |
M.T.3 |
|
Motor power |
1.5KW(2HP) |
1.5KW(2HP) |
1.5KW(2HP) |
|
Coolant motor |
0.04KW(0.055HP) |
0.04KW(0.055HP) |
0.04KW(0.055HP) |
|
Packing size |
1920x760x760 (mm) |
1920x760x760 (mm) |
1920x750x760 (mm) |
|
Main machine |
440x410x700 (mm) |
440x410x700 (mm) |
440x410x700 (mm) |
|
Machine stand |
370x410x700 (mm) |
370x410x700 (mm) |
370x410x700 (mm) |
|
Main machine weight |
505/565kgs |
505/565kgs |
495/555kgs |
|
Stand weight |
70/75kgs |
70/75kgs |
70/75kgs |
|
Loading qty./20" |
22pcs/20'container |
22pcs/20'container |
27pcs/20'container |

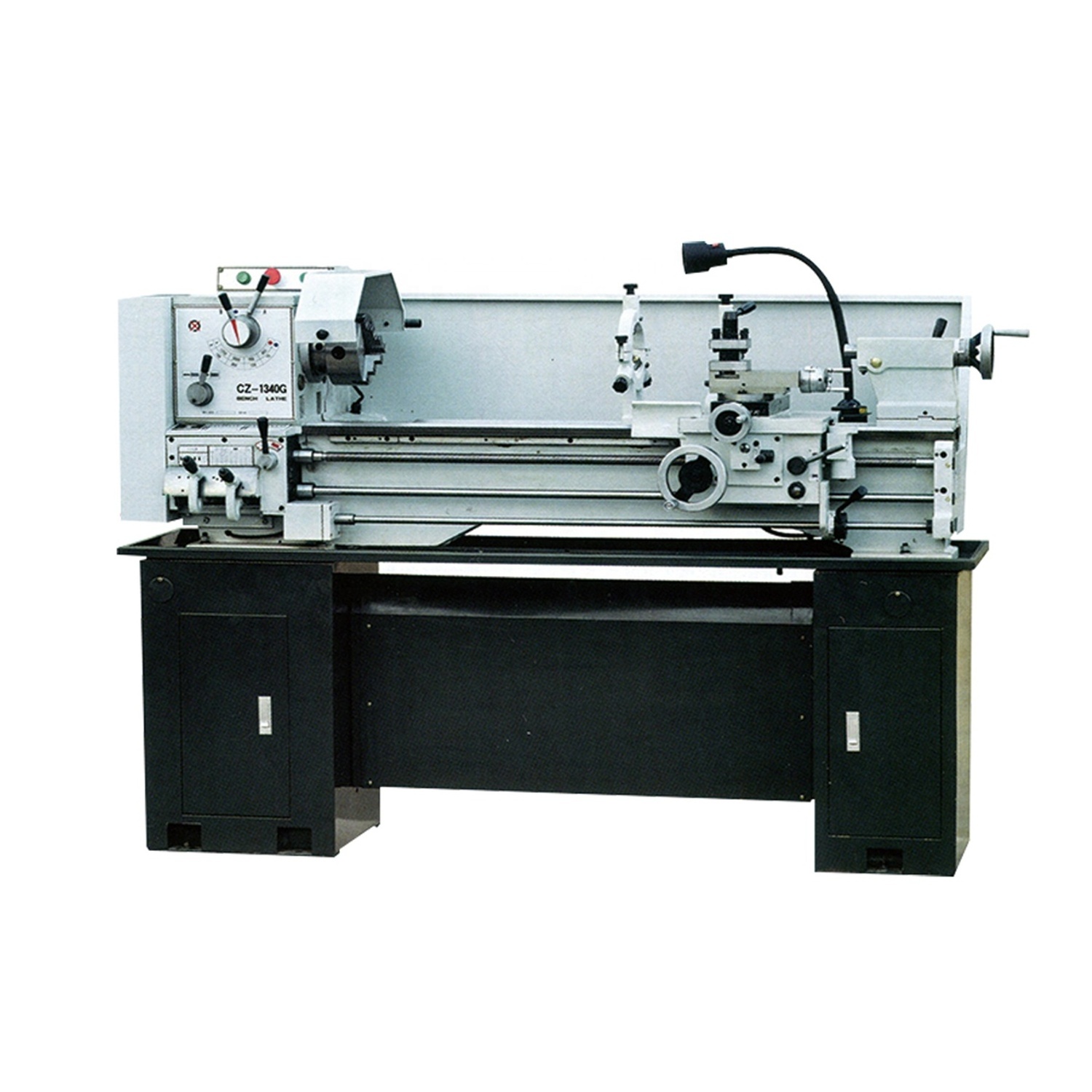

Product Pictures for Hoston Chinese Manufacturer Jet Metal Lathe Craigslist For Sale
