The unique flow channel structure design can make the water flow in the centrifugal filter
generate centrifugal force. Heavy silt and other impurities will sink. Clean water will flow from the outlet at the top. If
necessary, the sand tank at the bottom can be cleaned.
- Product Details
- {{item.text}}
Quick Details
-
Color:
-
blue and black
-
Size:
-
2 inch
-
Package:
-
1pc/1bag/ctn
-
Weight:
-
21 kg-30 kg
-
Description:
-
Centrifugal sand filter, Including flange
-
Volume:
-
16-27 L
-
Function:
-
sand & inorganic particle separator
-
Application:
-
Agriculture Irrigaiton
-
Max. flow:
-
50~100 m3/h
-
Max. pressure:
-
8 bar
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ARCK
-
Weight (KG):
-
26 kg
-
Color:
-
blue and black
-
Size:
-
2 inch
-
Package:
-
1pc/1bag/ctn
-
Weight:
-
21 kg-30 kg
-
Description:
-
Centrifugal sand filter, Including flange
-
Volume:
-
16-27 L
-
Function:
-
sand & inorganic particle separator
-
Application:
-
Agriculture Irrigaiton
-
Max. flow:
-
50~100 m3/h
-
Max. pressure:
-
8 bar

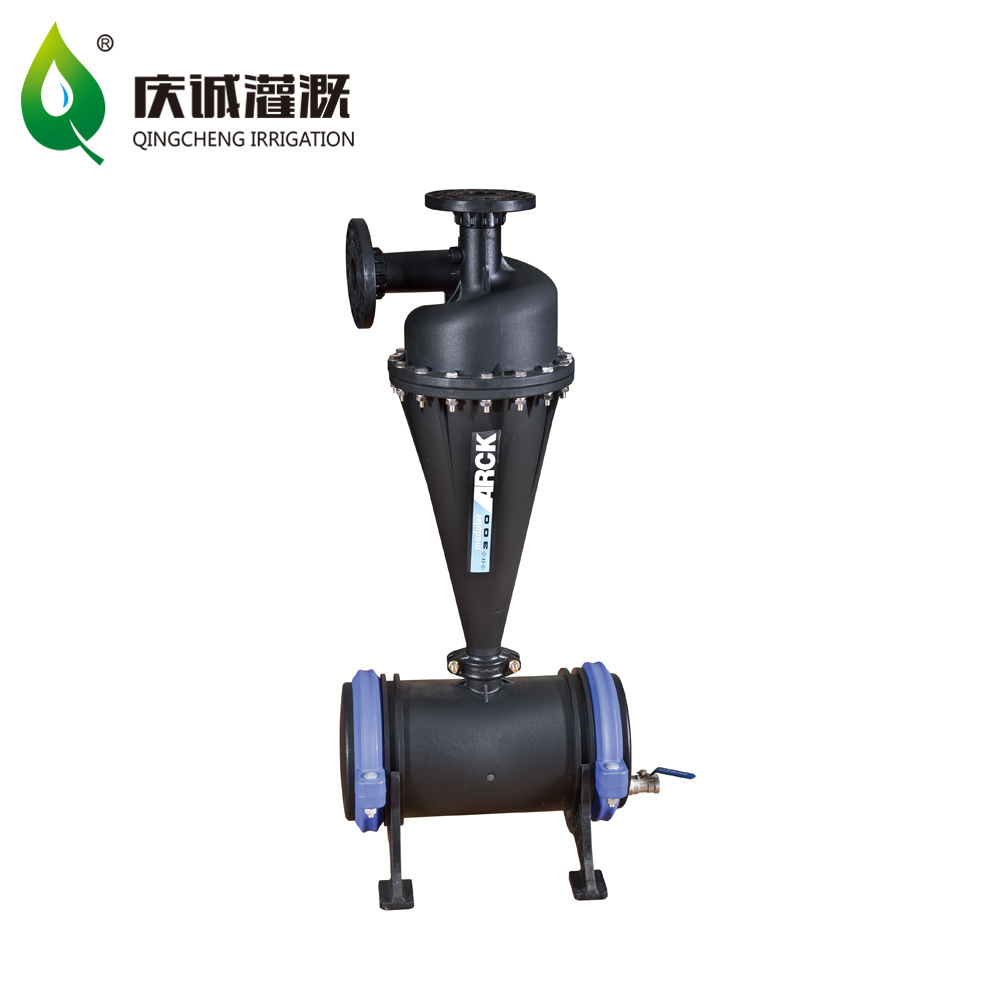

ARCK'S CENTRIFUGAL FILTER
ARCK's centrifugal filters separate particles of different densities by gravity and centrifugation and have excellent performance for large particle filtration. The PA material is resistant to corrosion, acid and alkali, and is durable. It overcomes the problem of rusting and perforation of steel materials under the impact of sediment. The bottom is designed with a sand settling tank, which is convenient for users to clean up the filter.
APPLICATION SCENARIOS
Well Water Filtration --
Coarse filtration of sediment in well water pumped out by deep
pumps.
Irrigation System --
Coarse filtration of sand and gravel in river and lake water.
Industrial Filtration --
Filtration of solid and heavy particulate impurities when recirculating water is reused.
WORKING PRINCIPLE & PRODUCT FEATURES
HOW IT WORKS
PRODUCT
FEATUR
ES
1.Filtration using the principles of gravity and centrifugal force.
2.PA material, corrosion resistance, acid and alkali resistance, wear resistance, sturdy
and durable.
3.The sand tank is designed at the bottom for easy cleaning.
4.Three models are available to meet different flow requirements.
MODEL & TECHNICAL DATA
|
MODEL & TECHNICAL DATA
|
|
|
|
Model
|
LX050F
|
|
|
Connection Size
|
2"
|
|
|
Max. Flow (m
3
/h)
|
30
|
|
|
Max. Pressure (bar)
|
8
|
|
|
Sand Bed Volume (L)
|
16
|
|
|
MODEL & TECHNICAL DATA
|
|
|
|
Model
|
LX050FL
|
|
|
Connection Size
|
2"
|
|
|
Max. Flow (m
3
/h)
|
30
|
|
|
Max. Pressure (bar)
|
8
|
|
|
Sand Bed Volume (L)
|
16
|
|
|
MODEL & TECHNICAL DATA
|
|
|
|
Model
|
LX065FL
|
|
|
Connection Size
|
2.5"
|
|
|
Max. Flow (m
3
/h)
|
30
|
|
|
Max. Pressure (bar)
|
8
|
|
|
Sand Bed Volume (L)
|
16
|
|
|
MODEL & TECHNICAL DATA
|
|
|
|
Model
|
LX090F
|
|
|
Connection Size
|
3"
|
|
|
Max. Flow (m
3
/h)
|
50
|
|
|
Max. Pressure (bar)
|
8
|
|
|
Sand Bed Volume (L)
|
16
|
|
|
MODEL & TECHNICAL DATA
|
|
|
|
Model
|
LX110F
|
|
|
Connection Size
|
4"
|
|
|
Max. Flow (m
3
/h)
|
30
|
|
|
Max. Pressure (bar)
|
100
|
|
|
Sand Bed Volume (L)
|
27
|
|
|
MODEL & TECHNICAL DATA
|
|
|
|
Model
|
LX110FL
|
|
|
Connection Size
|
4"
|
|
|
Max. Flow (m
3
/h)
|
100
|
|
|
Max. Pressure (bar)
|
8
|
|
|
Sand Bed Volume (L)
|
27
|
|
