Quick Details
-
Power:
-
425kw
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
20000 kg
-
Theoretical feeding amount:
-
50-150t/h
-
Output:
-
40-135t/h
-
Sand making machine power:
-
264kw, 400kw, 630kw
-
Maximum aggregate particle size:
-
40mm
-
Moisture content of raw materials:
-
Less than 1%
-
Control system:
-
Automatic
-
Applicaton:
-
construction, roads, bridges and other fields
-
After Warranty Service:
-
Online support
-
Advantage:
-
high quality finished product
-
Processed Materials:
-
Tailings, waste materials, construction waste, stone chips, etc.
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Chenli
-
Voltage:
-
Customized
-
Power:
-
425kw
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
20000 kg
-
Theoretical feeding amount:
-
50-150t/h
-
Output:
-
40-135t/h
-
Sand making machine power:
-
264kw, 400kw, 630kw
-
Maximum aggregate particle size:
-
40mm
-
Moisture content of raw materials:
-
Less than 1%
-
Control system:
-
Automatic
-
Applicaton:
-
construction, roads, bridges and other fields
-
After Warranty Service:
-
Online support
-
Advantage:
-
high quality finished product
-
Processed Materials:
-
Tailings, waste materials, construction waste, stone chips, etc.

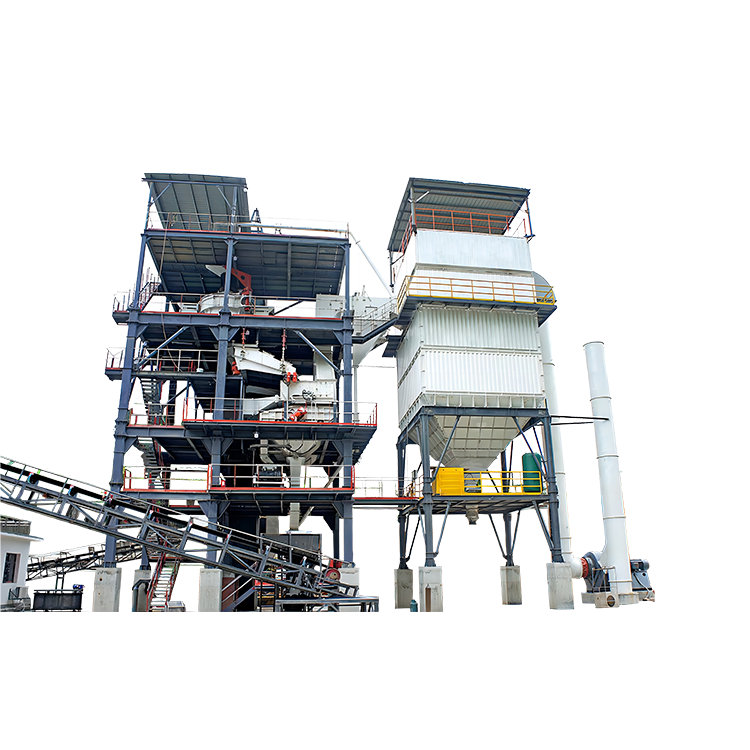

Hot Sale Vertical Sand Making Machine Tower Type Crushing Plant
vertical sand making machine
, also known as the tower sand making machine production line, is a modern advanced sand making machine system. The use of certificate closed state, relying on neutral conveying, can greatly reduce energy consumption, improve the operation effect, and ensure environmental protection. Although the vertical sand making machine requires a large number of steel structures, and the construction cost is slightly higher than that of the tiled production line, the space utilization rate is very high. The closed workshop can effectively control the dust, and the production is more environmentally friendly, which is more in line with the production standards of modern environmentally friendly sand making.
Working principle
1. The material is crushed by sand making machine, eliminating the needle-shaped material, removing the sharp edges and corners of the sand, so that the grain size reaches the required size.
2. The crushed material is evenly transported to the mold-controlled sieve through the conveyor and vibrating feeder, the material is graded, and the grading of the sand is finely controlled. The unqualified material is returned to the sand making machine for crushing, and the excess stone powder is removed by a dust removal collector.
3. Separate the qualified finished product into the humidifying agitator, and then mix and wet to control the moisture content of the finished sand to further ensure the quality of the finished sand.
4. The excess stone powder produced in the production is collected by the pulse dust collector, sent to the finished material tank by the pneumatic conveying system, and then packaged and transported.
| Model | LZS70 | LZS100 | LZS150 |
| Theoretical feeding amount(t/h) | 50-70 | 80-100 | 125-150 |
| Output(t/h) | 40-60 | 70-90 | 110-135 |
| Sand making machine power(kw) | 264 | 400 | 630 |
| Maximum aggregate particle size(mm) | 40 | 40 | 40 |
| Moisture content of raw materials | <1% | <1% | <1% |
| Stone powder content of finished sand | 5%-15% | 5%-15% | 5%-15% |
| Finished sand fineness modulus | 2.3-3.0 | 2.3-3.0 | 2.3-3.0 |
| Equipment installed power(kw) | 425 | 615 | 910 |
| Remark: The theoretical maximum feeding amount of vertical sand making machine refers to the amount of manufactured sand input when using limestone with a particle size less than 15mm and a compressive strength of 100MPa as raw material to produce a fineness modulus of 3.0. | |||
The parameters in the table are incomplete. Click here for more details.
The dry vertical sand making machine independently developed by Chenli adopts a fully enclosed tower layout, efficient single-machine performance and reasonable process connection, making the finished sand full in shape, reasonable in gradation, and controllable in weight. The indicators of machine-made sand are comparable to those of natural sand, and can meet the application requirements of different occasions such as concrete batching plants, mortar plants, sand and gravel yards.
vertical sand making machine plays an important role in many application areas. vertical sand making machine provides high-quality sand for building, infrastructure construction, road construction and concrete production. The sand produced by vertical sand making machine is widely used in the manufacture of concrete, blocks, mortars and pavement materials to provide a strong and reliable foundation for buildings and infrastructure. In addition, the sand from the vertical sand making machine can also be used in cement manufacturing, glass industry and other industrial fields.
Tai'an Chenli Construction Machinery Co., Ltd. is a technology-based company focusing on the development, design, manufacturing, engineering and service of intelligent complete equipment for building materials. Based on a deep understanding of building intelligent equipment, Taian Chenli is committed to providing users with "practical, efficient, low-carbon, environmentally friendly, intelligent and advanced" intelligent equipment products. In line with the product concept of "excellence in quality, simplicity to the extreme", committed to the high-tech development and application of intelligent equipment, energy-saving and environmentally friendly equipment for new building materials. The current leading products are cement concrete batching plants, mortar production lines, vertical sand making machine, and environmental protection equipment for batching plants. The products win the trust of the market with high standards and high reliability, and are deeply trusted by users.
