Silent 100kw 125kva stirling engine generator price powered by China SDEC engine SC4H160D2

Silent 100kw 125kva stirling engine generator price powered by China SDEC engine SC4H160D2

FOB Reference Price: Get Latest Price

≥1 Sets

US $5200

≥3 Sets

US $5000

≥5 Sets

US $4800

≥10 Sets

US $4500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Diesel generator:: 100KW/125KVA

Alternator:: Stamford/Marathon/Leroy somer/Mecc-alte/TWGII/ENGGA

Control panel:: Deepsea/ComAp/Smartgen/Harsen

Cooled type:: Radiator/water and fan

Base fuel tank:: 8 hours

Type:: Silent/Open/Trailer/Canopy/Container

Optional:: Automatic Transfer Switch

Spare parts:: All available

Warranty:: 12 months

Manufacturer:: Sutech Power

Quick Details

Rated Voltage:: 230V/400V

Rated Current:: 180A

Frequency:: 50/60HZ

Place of Origin:: Jiangsu, China

Diesel generator:: 100KW/125KVA

Alternator:: Stamford/Marathon/Leroy somer/Mecc-alte/TWGII/ENGGA

Control panel:: Deepsea/ComAp/Smartgen/Harsen

Cooled type:: Radiator/water and fan

Base fuel tank:: 8 hours

Type:: Silent/Open/Trailer/Canopy/Container

Optional:: Automatic Transfer Switch

Spare parts:: All available

Warranty:: 12 months

Manufacturer:: Sutech Power

Silent 100kw 125kva stirling engine generator price powered by China SDEC engine SC4H160D2

Related Products

100kw diesel generator (The following engine brands, alternator brands and Control panel for optional)

Rated power	Engine	Alternator	Control panel
20 kw~1300kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
8kw~1600kw	Perkins
68kw~504kw	Volvo
20 kw~500kw	Deutz
220 kw-2400kw	MTU
280kw-800kw	MAN
600kw-1800kw	Mitsubishi
50kw-650kw	Doosan
2kw~2500kw	Chinese engine

Product Description

Engine: Silent 100kw 125kva stirling engine generator price powered by China SDEC engine SC4H160D2

Engine Model	SC4H160D2
Engine manufacturer	Shangchai
Number of Cylinders	4 cylinders
Cylinders arrangement	Vertical in line Cycle
Cylinder	4 stroke
Aspiration	Naturally
Bore×Stroke	105mm x124mm
Displacement	4.3L
Compression ratio	16:1
Prime Power/Speed	116KW/1500rpm
Speed Governor	electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Coolant capacity	6.8L
Fuel Consumption at 100% Load	<0.3 g/kw.h
Starter Motor	DC24V
Alternator	DC24V

Alte rnator: Silent 100kw 125kva stirling engine generator price powered by China SDEC engine SC4H160D2

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	100KW
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

100kw diesel generator (Control panel)

Brand

Deepsea/ComAp/SmartGen

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

Optional-addtional parts

Engine	Fuel System	Cooling system	Exhaust system
Coolant Heater Lube oil heater Electronic governor Engine oil temperature	External Tank Water Separator	50-60 Radiator, Remote radiator Cooling tower	Heavy Duty air filter Silencer Enclosures
Alternator	Control System	Others	Voltage Connections
Anti Condensation Heater Permanent Magnet Generator-PMG Drop CT-for paralleling	Remote Control Panel Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet	Rainproof Type Soundproof Type Containerized Type Trailer Type Spare Parts	480/277V 440/254V 416/240V 400/230V 380/220V 240/139V 220/127V 208/120V
High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available

Product Overviews

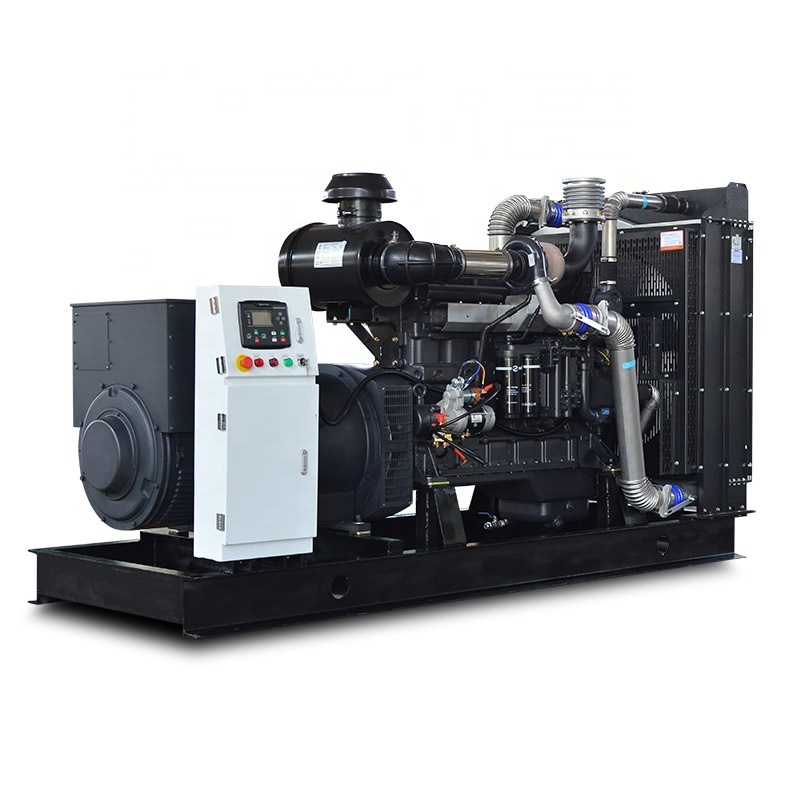

100kw diesel generator with Shangchai engine

100kw diesel generator price with Shangchai engine

Silent 100kw diesel generator

Application

24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.

Sutech Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.

In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.

Sutech Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.

Lower noise level is important.

Sutech power generators are made to be environment friendly with low emission and lower noise level

Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.
