Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HLT
-
Weight:
-
1500 KG, 700-1500
-
Capacity:
-
10-50cpm
-
Power:
-
2.2kw
-
Thickness:
-
<0.4mm
-
Specification:
-
Customized
-
Product Name:
-
Square Can/Round Tin Sealing Palm Oil Can Machinery^
-
Marketing Type:
-
New Product 2022
Quick Details
-
Application:
-
Food, Tin can production
-
Packaging Material:
-
Wood
-
Voltage:
-
220V 50HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HLT
-
Weight:
-
1500 KG, 700-1500
-
Capacity:
-
10-50cpm
-
Power:
-
2.2kw
-
Thickness:
-
<0.4mm
-
Specification:
-
Customized
-
Product Name:
-
Square Can/Round Tin Sealing Palm Oil Can Machinery^
-
Marketing Type:
-
New Product 2022

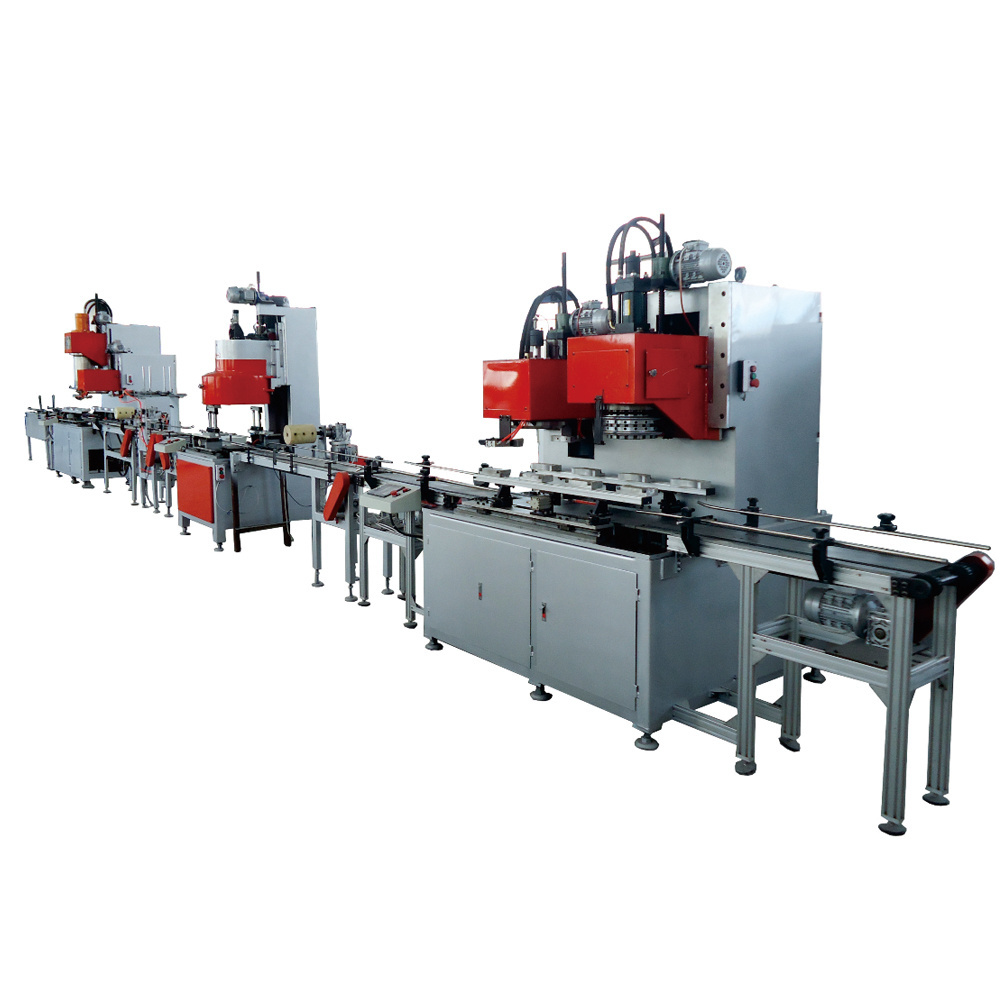

4L 18L 25L Square Can/Round Tin Sealing Palm Oil Can Production Making Machinery^
Product Description
Specification
Production Flow
Proposal of Production line
Proposal for 18Liter Automatic Square Can Production Line
1. R-40 Shearing machine
Function: cut tinplate sheets into small pieces
Production------------- 1.6metre/second
Suitable thickness----Max. 0.5mm
Suitable width---------40-1050mm
Suitable height--------Max. 440mm
Power consumption-1.1kw
Dimensions -----------1700×1100×100mm
Weight------------------About 1000kg
2. Automatic big can body seam welding machine
Model--------------FBZ-A
Power--------3N380V/50Hz 40KVA
Welding speed------------6-18m/min
Capacity -------------20-30pcs/min
Diameter Range--------Φ250-Φ290mm
Height Range-----------180-450mm
Overlap--------------0.8-1.2mm
Thickness------------------0.28-0.4mm
Copper wire--------------------Φ1.5mm
Compressor air-------0.5MPa 900L/min
Cooling water------0.3Mpa 8-10L/min
Net Weight-----------------------2000 kg
Dimension--------------2100*1900*1900 mm
3. Automatic 5 work station square forming& embossing and flanging machine
Production capability-----------19cans/min
Suitable thickness----------------- 0.2-0.4mm
Suitable range--------------10-18L square can
Power consumption---------- 14kw
Dimensions/ Weight----- 30000x1300 x2400mm
Weight------------6800kgs
4. Automatic big square can seaming machine with auto lid placing device
Production capability-----------18-19cans/min
Suitable thickness----------------- 0.2-0.4mm
Suitable range--------------10-18L square can
Power consumption------------------4kw
Applicable electric power----------380V 50HZ
Dimensions/ Weight---------2800x1100 x1900mm
Weight------------------1300kgs
Function: square can lid and bottom seaming automatically
5. Turner
6. 18L square can single head handle welding machine
Production----------------23-25pcs/min
Suitable thickness-------- Max. 0.4mm
Power---------------------------63KVA
Dimension-------------1900 X 1550 X 1500mm
Weight----------------------- about 1200kgs
7. Dies
Die for bottom------------------1 set
Die for punch hole-----------------1 set
Die for catcher handle-------------1 set
8. JH21-45 punch machine
Capacity---------------------------450
Nominal Force------------------- 4mm
Slide Stroke----------------------100
Max. Die Height:-----------------270
Die Height Adjustment----------60
Between Slide Center & Frame------230
Bolster (FB×LR)-------------------440*810
Bolster Thickness---------------110
Slide Area (FB×LR)------------ 300*300
Shank Hole (Dia.×Dpth)--------Φ40×60
Between Columns------------------550
Motor Power-------------------------5.5KW
9. J23-16B press machine
Capacity------------------------------160
Nominal Force-----------------------5mm
Slide Stroke---------------------------55
Max. Die Height---------------------125
Die Height Adjustment-------------45
Between Slide Center & Frame--160
Workable dimension----------300×450
Dimension od workable hole-----Φ100
Thickness of bloster----------40
Hole size in bed (Dia.×FB×LR)--------------Φ210×160×240
Slide Area (FB×LR)-------180×200
Size of handle Hole (Dia.×Depth)--------------Φ40×60
Max. Inclined Angle-------25°
Between Columns-------- 220
Motor Power---------------1.5KW
Outline Size -------------1150×900 ×191
10. Automatic feeder
Production-------------------------30pcs/min
Suitable thickness--------------- Max. 0.5mm
Suitable size----------------10-20L square can
Main Power consumption-------------1.5kw
Dimensions------------------1500×800×1600mm
Weight-----------------------------400kg
11.Automatic square lid lining & oven machine(with turner, curling and lids collection device)
Function: edge curling can bottom
Production-------------------------30pcs/min
Suitable thickness--------------- Max. 0.5mm
Suitable size----------------10-20L square can
Main Power consumption-------------1.5kw
Dimensions------------------3200×1000×1500mm
Weight-----------------------------600kg
Function: cut tinplate sheets into small pieces
Production------------- 1.6metre/second
Suitable thickness----Max. 0.5mm
Suitable width---------40-1050mm
Suitable height--------Max. 440mm
Power consumption-1.1kw
Dimensions -----------1700×1100×100mm
Weight------------------About 1000kg
2. Automatic big can body seam welding machine
Model--------------FBZ-A
Power--------3N380V/50Hz 40KVA
Welding speed------------6-18m/min
Capacity -------------20-30pcs/min
Diameter Range--------Φ250-Φ290mm
Height Range-----------180-450mm
Overlap--------------0.8-1.2mm
Thickness------------------0.28-0.4mm
Copper wire--------------------Φ1.5mm
Compressor air-------0.5MPa 900L/min
Cooling water------0.3Mpa 8-10L/min
Net Weight-----------------------2000 kg
Dimension--------------2100*1900*1900 mm
3. Automatic 5 work station square forming& embossing and flanging machine
Production capability-----------19cans/min
Suitable thickness----------------- 0.2-0.4mm
Suitable range--------------10-18L square can
Power consumption---------- 14kw
Dimensions/ Weight----- 30000x1300 x2400mm
Weight------------6800kgs
4. Automatic big square can seaming machine with auto lid placing device
Production capability-----------18-19cans/min
Suitable thickness----------------- 0.2-0.4mm
Suitable range--------------10-18L square can
Power consumption------------------4kw
Applicable electric power----------380V 50HZ
Dimensions/ Weight---------2800x1100 x1900mm
Weight------------------1300kgs
Function: square can lid and bottom seaming automatically
5. Turner
6. 18L square can single head handle welding machine
Production----------------23-25pcs/min
Suitable thickness-------- Max. 0.4mm
Power---------------------------63KVA
Dimension-------------1900 X 1550 X 1500mm
Weight----------------------- about 1200kgs
7. Dies
Die for bottom------------------1 set
Die for punch hole-----------------1 set
Die for catcher handle-------------1 set
8. JH21-45 punch machine
Capacity---------------------------450
Nominal Force------------------- 4mm
Slide Stroke----------------------100
Max. Die Height:-----------------270
Die Height Adjustment----------60
Between Slide Center & Frame------230
Bolster (FB×LR)-------------------440*810
Bolster Thickness---------------110
Slide Area (FB×LR)------------ 300*300
Shank Hole (Dia.×Dpth)--------Φ40×60
Between Columns------------------550
Motor Power-------------------------5.5KW
9. J23-16B press machine
Capacity------------------------------160
Nominal Force-----------------------5mm
Slide Stroke---------------------------55
Max. Die Height---------------------125
Die Height Adjustment-------------45
Between Slide Center & Frame--160
Workable dimension----------300×450
Dimension od workable hole-----Φ100
Thickness of bloster----------40
Hole size in bed (Dia.×FB×LR)--------------Φ210×160×240
Slide Area (FB×LR)-------180×200
Size of handle Hole (Dia.×Depth)--------------Φ40×60
Max. Inclined Angle-------25°
Between Columns-------- 220
Motor Power---------------1.5KW
Outline Size -------------1150×900 ×191
10. Automatic feeder
Production-------------------------30pcs/min
Suitable thickness--------------- Max. 0.5mm
Suitable size----------------10-20L square can
Main Power consumption-------------1.5kw
Dimensions------------------1500×800×1600mm
Weight-----------------------------400kg
11.Automatic square lid lining & oven machine(with turner, curling and lids collection device)
Function: edge curling can bottom
Production-------------------------30pcs/min
Suitable thickness--------------- Max. 0.5mm
Suitable size----------------10-20L square can
Main Power consumption-------------1.5kw
Dimensions------------------3200×1000×1500mm
Weight-----------------------------600kg
