Quick Details
-
Brand Name:
-
Heguo/CJSE
-
Dimension(L*W*H):
-
8574 x 2916 x 2916mm
-
Weight:
-
12650
-
Product name:
-
LNG storage tank container or Nitrogen Oxygen CO2 storage tanks
-
Material:
-
Stainless Steel, Carbon Steel
-
Usage:
-
Store Liquid Natural Gas
-
Cryogenic Tank type:
-
Vacuum insulated double layer tank
-
Medium:
-
LNG
-
Working pressure:
-
0.8/ 1.2Mpa
-
Color:
-
White
-
Keywords:
-
cryogenic vessel, low temperature storage tank
-
Working Years Design:
-
20years
Quick Details
-
Capacity:
-
30CBM LNG TANK, 30000L
-
Max Working Pressure(MPa):
-
0.86 MPa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Heguo/CJSE
-
Dimension(L*W*H):
-
8574 x 2916 x 2916mm
-
Weight:
-
12650
-
Product name:
-
LNG storage tank container or Nitrogen Oxygen CO2 storage tanks
-
Material:
-
Stainless Steel, Carbon Steel
-
Usage:
-
Store Liquid Natural Gas
-
Cryogenic Tank type:
-
Vacuum insulated double layer tank
-
Medium:
-
LNG
-
Working pressure:
-
0.8/ 1.2Mpa
-
Color:
-
White
-
Keywords:
-
cryogenic vessel, low temperature storage tank
-
Working Years Design:
-
20years
Specification
|
NO.
|
Model
|
Outline Size
|
Net Weight(KG)
|
Type
|
|
1
|
CFL-5/0.8
|
Φ1916*5040
|
3830
|
Vertical
|
|
2
|
CFL-10/0.8
|
Φ2316*5808
|
5465
|
|
|
3
|
CFL-15/0.8
|
Φ2316*7725
|
7530
|
|
|
4
|
CFL-20/0.8
|
Φ2416*8922
|
9375
|
|
|
5
|
CFL-30/0.8
|
Φ2920*8574
|
13060
|
|
|
6
|
CFL-50/0.8
|
Φ3120*1178
|
19505
|
|
|
7
|
CFL-60/0.8
|
Φ3020*14465
|
23935
|
|
|
8
|
CFL-100/0.8
|
Φ3424*17666
|
39135
|
|
|
9
|
CFL-150/0.8
|
Φ3928*19000
|
59300
|
|
|
10
|
CFL-30/1.2
|
Φ2920*8580
|
16020
|
|
|
11
|
CFL-60/01.2
|
Φ3020*14551
|
28300
|
|
|
12
|
CFL-100/1.2
|
Φ3324*18739
|
45620
|
|
|
13
|
CFW-5/0.8
|
Φ1916*4572
|
3950
|
Horizontal
|
|
14
|
CFW-10/0.8
|
Φ2316*5398
|
6050
|
|
|
15
|
CFW-15/0.8
|
Φ2316*7258
|
7845
|
|
|
16
|
CFW-20/0.8
|
Φ2416*864546
|
9480
|
|
|
17
|
CFW-30/0.8
|
Φ2916*8289
|
12800
|
|
|
18
|
CFW-50/0.8
|
Φ2916*12729
|
19160
|
|
|
19
|
CFW-60/0.8
|
Φ2916*14929
|
21760
|
|
|
20
|
CFW-100/0.8
|
Φ3424*16442
|
38460
|
|
|
21
|
CFW-120/0.8
|
Φ3424*5926
|
44200
|
|
|
22
|
CFW-150/0.8
|
Φ3824*19426
|
50945
|
|

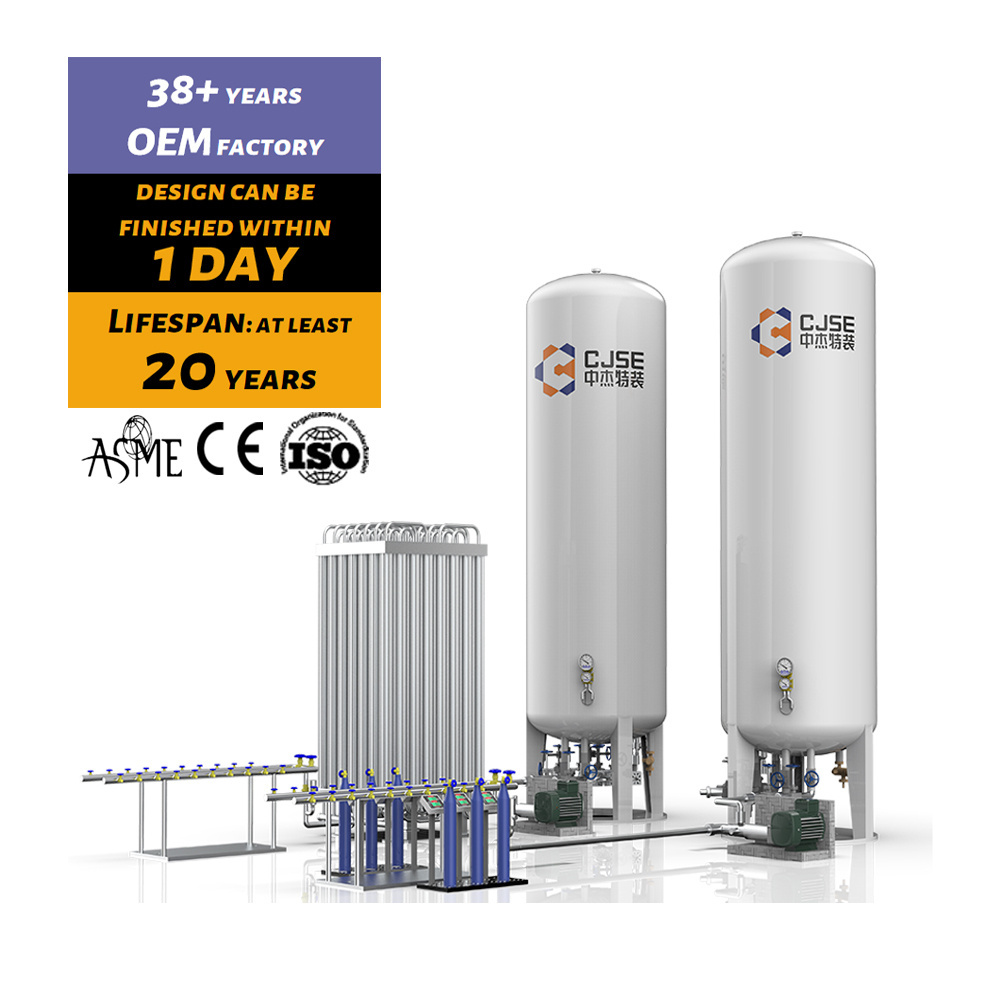

The fully refrigerated vacuum powder insulated storage tank containing LNG. It iscomposed of an inner container and an outer shell that maintains a vacuum insulation interlayer, and has a complete set of safety accessories, instrumentation and systems that meet operating requirements. The thermal insulation method of filling porous particulate thermal insulation material and vacuuming is adopted to realize the storage of LNG under low temperature and normal pressure.
