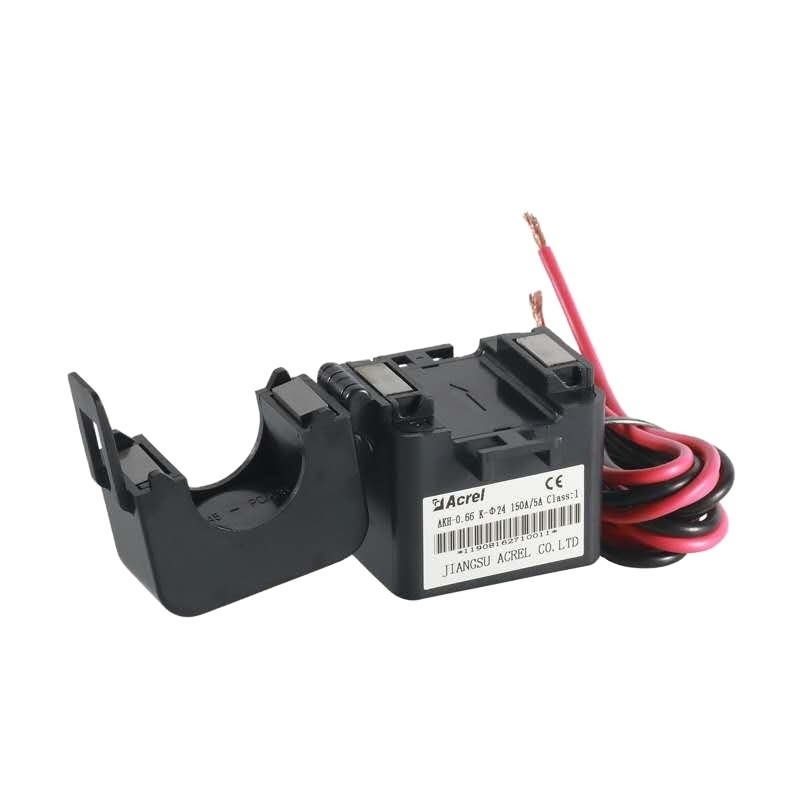

AKH-0.66/K-Φ series split current transformers are mainly used in reconstructing projects of urban and rural power grids. Product
has the advantages of small size, high accuracy, strong load capacity, easy installation, etc. They save the manpower, material
resources and financial resources and improve the efficiency of users.
* Aperture: 24mm
* Rated secondary current: 5A/1A
* Rated primary current: 100A-300A
* Maximum system voltage: 720V AC
* Rated frequency: 50/60Hz
* Protection level: IP30
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
AKH-0.66/K
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Acrel, Acrel
-
Theory:
-
analog
-
Output:
-
1/5A
-
installation:
-
split core
-
Accuracy:
-
Class 0.5
-
Primary Current Input:
-
60~400A AC
-
Rated Voltage:
-
660V AC
-
Rated Frequency:
-
50~60Hz
-
Loop Count:
-
1 Loop
Quick Details
-
Use:
-
current detect
-
Mounting Type:
-
NA
-
Description:
-
NA, current transformer
-
Model Number:
-
AKH-0.66/K
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Acrel, Acrel
-
Theory:
-
analog
-
Output:
-
1/5A
-
installation:
-
split core
-
Accuracy:
-
Class 0.5
-
Primary Current Input:
-
60~400A AC
-
Rated Voltage:
-
660V AC
-
Rated Frequency:
-
50~60Hz
-
Loop Count:
-
1 Loop
Product Description
AKH-0.66/K-Φseries open type current transformer
Specification
|
Model Name
|
Current Ratio (Primary/Secondary)
|
Accuracy Class
|
Rated Load (VA)
|
Perforation Hole Size (mm)
|
|
AKH-0.66/K-φ10
|
5A/1.25mA
|
0.5
|
10
|
φ10
|
|
|
(10~20)A/5mA
|
|
|
|
|
|
(40~60)A/20mA
|
|
|
|
|
AKH-0.66/K-φ16
|
(20~50)A/10mA
|
|
|
φ16
|
|
|
(40~100)A/20mA
|
|
|
|
|
|
100A/40mA
|
|
|
|
|
|
100A/333mV
|
|
|
|
|
AKH-0.66/K-φ24
|
(60~200)A/20mA
|
|
|
φ24
|
|
|
(100~250)A/40mA
|
|
|
|
|
|
400A/100mA
|
|
|
|
|
|
(150~200)A/5(1)A
|
|
|
|
|
|
(250~300)A/5(1)A
|
|
|
|
|
AKH-0.66/K-φ36
|
(100~200)A/10mA
|
|
|
φ36
|
|
|
(200~400)A/20mA
|
|
|
|
|
|
(300~600)A/100mA
|
|
|
|
|
|
400A/40mA
|
|
|
|
|
|
400A/333mV
|
|
|
|
|
|
600A/75mA
|
|
|
|
|
|
(300~400)A/5(1)A
|
|
|
|
|
|
(500~600)A/5(1)A
|
|
|
|
|
AKH-0.66/K-φ50
|
(600~800)A/100mA
|
|
|
φ50
|
|
|
(500~1000)A/5(1)A
|
|
|
|
|
|
1000A/333mV
|
|
|
|
Customized service
If you have any special requirements, for example another current input and analog output or special power supply and size ,please feel free to contact us.
Dimensions
|
Model Name
|
Outline Size (mm)
|
|
|
|
|
Perforation Size (mm)
|
|
Tolerance (mm)
|
|||||
|
|
W
|
H
|
D
|
M
|
N
|
φ1
|
φ2
|
|
|||||
|
AKH-0.66/K-φ10
|
27
|
40
|
26
|
24
|
36
|
10
|
9
|
|
|||||
|
AKH-0.66/K-φ16
|
31
|
50
|
29
|
28
|
42
|
16
|
17
|
|
|||||
|
AKH-0.66/K-φ16
|
39
|
71
|
46
|
36
|
52
|
24
|
23.5
|
|
|||||
|
AKH-0.66/K-φ36
|
42.5
|
82
|
58
|
40
|
56
|
33.5
|
35
|
|
|||||
|
AKH-0.66/K-φ50
|
46.5
|
110
|
90
|
54
|
66.5
|
47
|
52
|
|
|||||
Certifications
CE
IEC
ROHS
