- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Type:
-
Sliding
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINOMATIC
-
Model Number:
-
SL600AC
-
Power supply:
-
220V,50Hz;110V,60Hz
-
Max loading weight:
-
600 Kgs
-
Motor Power:
-
280W
-
Gate Moving Speed:
-
11~13m/min
-
Limit Switch:
-
Spring (mechanical) / magnetic
-
Recording of up Remotes:
-
20 pcs / 44 pcs
-
Decoding / Frequency:
-
Rolling code / 433.92MHz
-
Work Duty:
-
S2 15min
-
Work Temperature:
-
-20°C~70°C
-
Gross weight:
-
9 KG
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Villa
-
Type:
-
Sliding
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINOMATIC
-
Model Number:
-
SL600AC
-
Power supply:
-
220V,50Hz;110V,60Hz
-
Max loading weight:
-
600 Kgs
-
Motor Power:
-
280W
-
Gate Moving Speed:
-
11~13m/min
-
Limit Switch:
-
Spring (mechanical) / magnetic
-
Recording of up Remotes:
-
20 pcs / 44 pcs
-
Decoding / Frequency:
-
Rolling code / 433.92MHz
-
Work Duty:
-
S2 15min
-
Work Temperature:
-
-20°C~70°C
-
Gross weight:
-
9 KG
Products Description

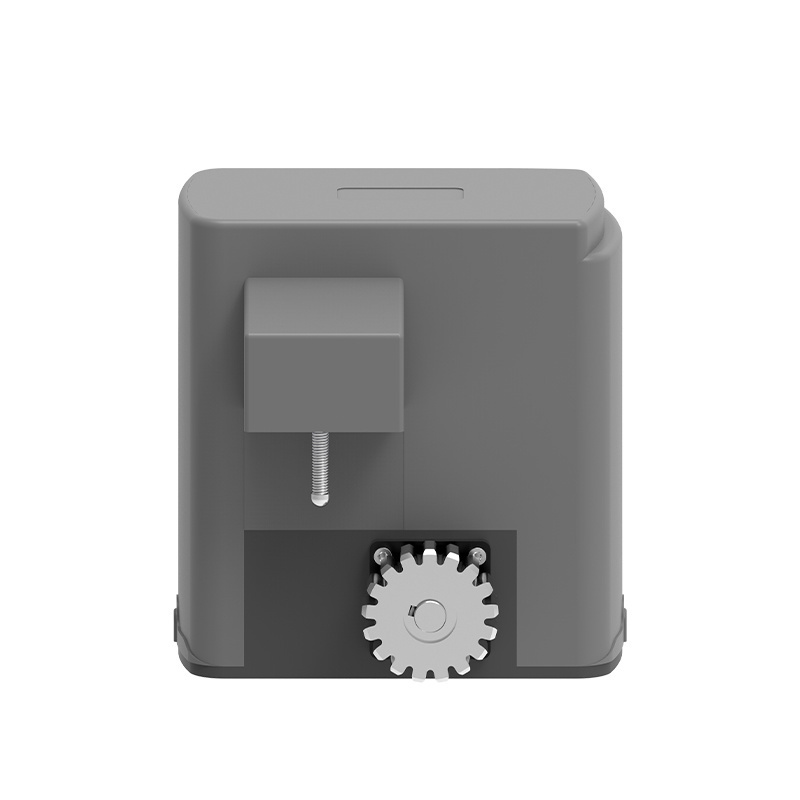

The SL600AC gate opener designed for residential use, weight up to 600 Kg and operating distance up to 8 meters.
MAIN FEATURES
Compact structure, cost-effective.
Built in control board
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
User can select auto-close function.
Optional for spring limit switch and magnetic limit switch
Manual key release design for emergency purposes.
Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)
MAIN FEATURES
Compact structure, cost-effective.
Built in control board
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
User can select auto-close function.
Optional for spring limit switch and magnetic limit switch
Manual key release design for emergency purposes.
Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)
Product display
Functions & Features
1.Particularly simple installation, just two power line can solve all problems.
2.Aluminum base, copper worm-gear, reliable and good quality.
3.MCU is supplied to control the gate operator.
Keypad / single button interface.
Photo beam safety beam interface.
4.Auto-close function is adjustable, set gate to auto-close within 15s, 45s, 60s
5.Manual key release design for emergency purposes.
6.A comprehensive interface: Infrared,, external buttons, etc.
2.Aluminum base, copper worm-gear, reliable and good quality.
3.MCU is supplied to control the gate operator.
Keypad / single button interface.
Photo beam safety beam interface.
4.Auto-close function is adjustable, set gate to auto-close within 15s, 45s, 60s
5.Manual key release design for emergency purposes.
6.A comprehensive interface: Infrared,, external buttons, etc.
Product Specs
|
Unit Model
|
SL600AC
|
DKC800DC
|
|
|
Power Supply
|
220V,50Hz;110V,60Hz;
|
|
|
|
Max. Gate Weight
|
600KG
|
800KG
|
|
|
Motor Power
|
280W
|
DC24V,170W
|
|
|
Gate Moving Speed
|
11-13 m/min
|
18 m/min
|
|
|
Limit Switch
|
Spring (mechanical) / magnetic
|
|
|
|
Recording of up Remotes
|
20 pcs / 44 pcs
|
|
|
|
Decoding / Frequency
|
Rolling code / 433.92MHz
|
|
|
|
Work Duty
|
S2 15min
|
|
|
|
Noise
|
≤58dB
|
|
|
|
Work Temperature
|
-20°C~70°C
|
|
|
|
Gross Weight
|
9 KG
|
|
|
Product dimension
Product packaging
