Quick Details
-
Place of Origin:
-
Shandong, China
-
Laser power:
-
LXW-500/1000W
-
Center wavelength:
-
1070+-5nm
-
Output power stability:
-
<2%
-
Laser frequency:
-
50Hz-5KHz
-
Adjustable power range:
-
5-95%
-
Beam quality:
-
1.1
-
Optimal operating environment:
-
Temperature 10-35 ° C, humidity 20% -80%
-
Electricity demand:
-
AC220V
-
Output fiber length:
-
5/10/15m (Optional)
-
Cooling method:
-
Water Cooling
Quick Details
-
Max. Output Power:
-
1000w
-
Use:
-
metal welding
-
Laser Source Brand:
-
Coherent
-
Place of Origin:
-
Shandong, China
-
Laser power:
-
LXW-500/1000W
-
Center wavelength:
-
1070+-5nm
-
Output power stability:
-
<2%
-
Laser frequency:
-
50Hz-5KHz
-
Adjustable power range:
-
5-95%
-
Beam quality:
-
1.1
-
Optimal operating environment:
-
Temperature 10-35 ° C, humidity 20% -80%
-
Electricity demand:
-
AC220V
-
Output fiber length:
-
5/10/15m (Optional)
-
Cooling method:
-
Water Cooling

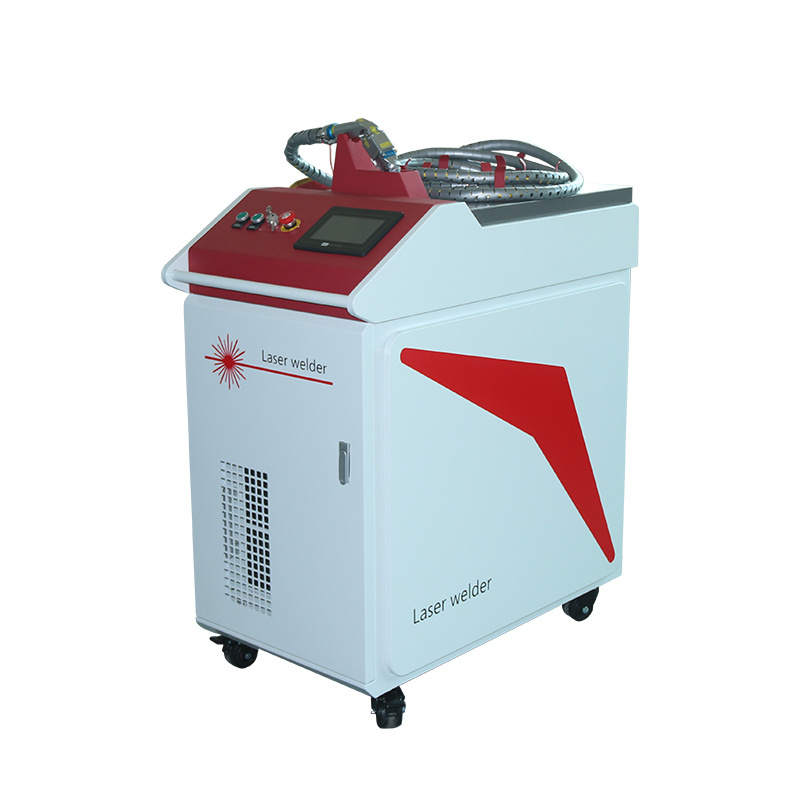

New production metal fiber laser welding head welding machine
This machine is suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
|
Laser power |
LXW-500/1000W |
|
Center wavelength |
1070+-5nm |
|
Output power stability |
<2% |
|
Laser frequency |
50Hz-5KHz |
|
Adjustable power range |
5-95% |
|
Beam quality |
1.1 |
|
Optimal operating environment |
Temperature 10-35 ° C, humidity 20% -80% |
|
Electricity demand |
AC220V |
|
Output fiber length |
5/10/15m (Optional) |
|
Cooling method |
Water Cooling |
|
Dimensions |
93*60*88cm |
|
Weight |
200kg |
|
Cooling water temperature |
20-25 ° C |
|
|
2000/4000W |
