Quick Details
-
Brand Name:
-
CHUNQIU
-
Model Number:
-
XG07/10/15/20/30/40
-
Certification:
-
ISO9001
-
Name:
-
FRONT LINKAGE AND FRONT PTO
-
Color:
-
Red/Blue/YELLOW
Quick Details
-
Type:
-
Farm Equipment
-
Use:
-
Agriculture
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CHUNQIU
-
Model Number:
-
XG07/10/15/20/30/40
-
Certification:
-
ISO9001
-
Name:
-
FRONT LINKAGE AND FRONT PTO
-
Color:
-
Red/Blue/YELLOW
Product Description

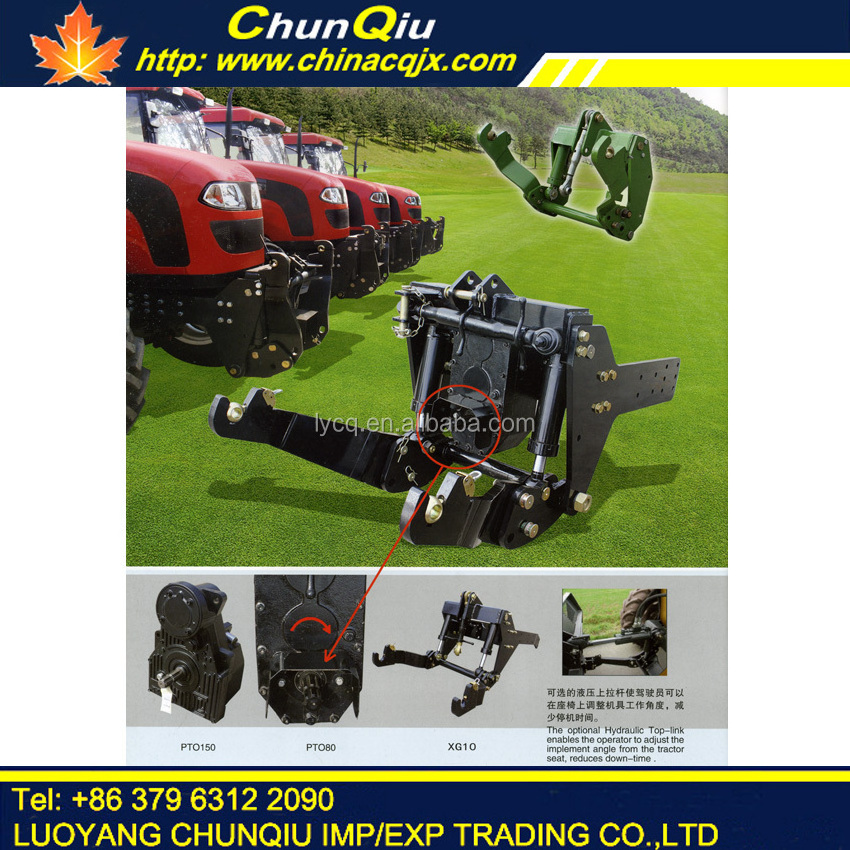

XG FRONT LINKAGE AND FRONT PTO
| Model | XG07 | XG10 | XG15 | XG20 | XG30 | XG40 |
| Matching Tractor(hp) | 20-50 | 40-70 | 60-90 | 80-130 | 120-180 | >180 |
| Lifting power at catch hook kN(kg) | 7(700) | 10(1000) | 15(1500) | 20(2000) | 30(3000) | 40(4000) |
| Lifting Height H(mm) | 620 | 720 | 750 | 800 | ||
| Double-acting Cylinders | Standard | |||||
| Type of Catch Hooks | cat.2 | cat.3 | ||||
| Type of Top Link | cat.2 | |||||
| Weight(kg) | 140 | 160 | 280 | 350 | 550 | 700 |
| Reversing Valve | Option | |||||
| Hydraulic Lock | Option | |||||
| Shock Eliminator System | No | option | ||||
| Front PTO | No | No | option | |||
| Max.PTO power(hp) | 80 | 150 | ||||
| Front PTO shaft speed (rpm) | 1000/540 | 540 | ||||
| Direction of rotation(from cab seat) | option | anti-clockwise | ||||
| PTO shaft profile (DIN 9611) | 1-3/8″-6splines | |||||
