Quick Details
-

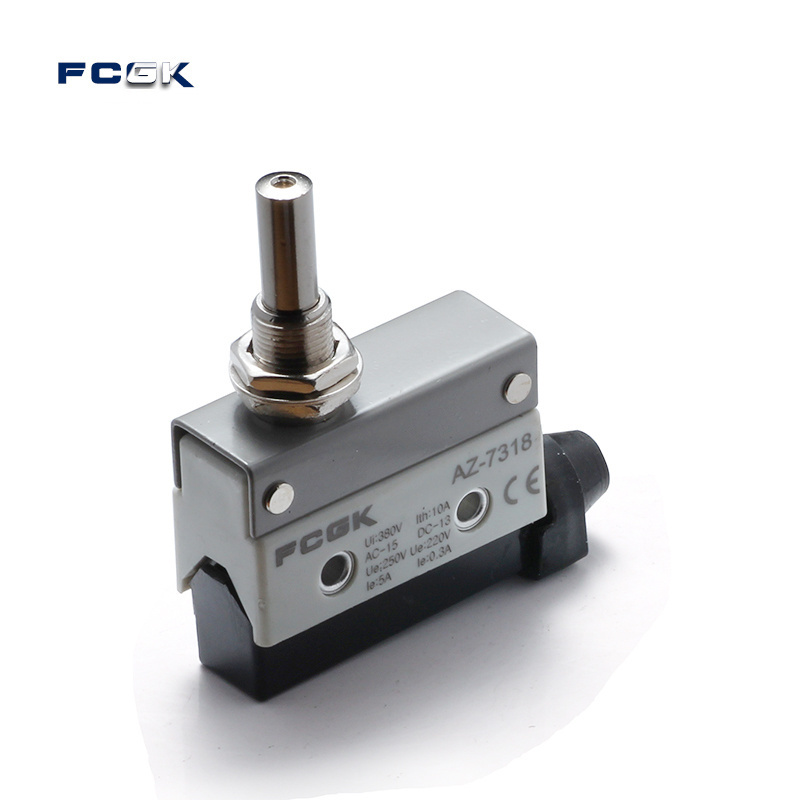

Model Number:
-
AZ-7318
-
Protection Level:
-
IP40
-
Operating Temperature:
-
-20°~+80°C
-
Max. Current:
-
10A
-
Certification:
-
CCC
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FCGK
-
Model Number:
-
AZ-7318
-
Protection Level:
-
IP40
-
Operating Temperature:
-
-20°~+80°C
-
Max. Current:
-
10A
-
Certification:
-
CCC
|
Rating data |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Rated Voltage | Non-inductive Load (A) | Inductive Load (A) | Inrush Cu rrent (A) | ||||||
| Resistance Load | Lamp Load | Inductive Load | Motor Load | ||||||
| NC | NO | NC | NO | NC | NO | NC | NO | NC | NO |
|
125VAC 250VAC 500VAC |
15 15 3
|
3 2.5 1.5 |
15 15 2.5 |
5 3 1.5 |
2.5 1.5 0.75 |
30 Max. | 15 Max. | ||
|
8VDC 14VDC 30VDC 125VDC 250VDC |
15 15 6(2) 0.4 0.2
|
3 3 3 0.4 0.2 |
15 10 5 0.05 0.03
|
5 5 5 0.05 0.03 |
2.5 2.5 2.5 0.05 0.03 |
| Characteristics | |
| Operation speed | 0.01mm-1m/sec |
| Operating frequency | Mechanical:240 operations/Min. Electical: 20 operations/Min. |
| Contact resistance | 15MΩ Max. (Initial value) |
| Insulation resistance | 100M Ω Max. (at 500VDC) |
| Dielectric strength | 100VAC, 50/60 Hz for 1 minute between terminals of same polaritg |
| 1500 VAC, 50/60 Hz for 1 minute between current-carrging and non-current-carrging metal parts | |
| 1500VAC,50/60Hz for 1 minute between each terminal and ground | |
| Vibration | 10-55Hz,1.5mm double amplitude |
| Shock |
Mechanical durable:1,000/Sec 2 (Approximately 10G'S) Malfunction:300/Sec 2 ( A pproximately 30G'S) |
| Amient temperature | -10~+80 ℃(No frozen) |
| Humidity | < 95% RH |
| Weight | 60g |
| Degree of Protection |
IP40 |
| Model | OF(Max) | RF(Min) | PT(Max) | OT(Min) | MD(Max) | OP | FP |
|
AZ-7100 |
5.88N | 0.98N | 2.0mm | 0.8mm | 0.8mm | 30.5 ± 0.8mm | |
| AZ-7110 | 5.88N | 0.98N | 2.0mm | 5.0mm | 0.8mm | 44 ± 1.2mm | |
| AZ-7310 | 5.88N | 0.98N | 2.0mm | 6.0mm | 0.8mm | 21.8 ± 1.2mm | |
| AZ-7 311 | 5.88N | 0.98N | 2.0mm | 6.0mm | 0.8mm | 33.3 ± 1.2mm | |
| AZ-7 312 | 5.88N | 0.98N | 2.0mm | 6.0mm | 0.8mm | 33.3 ± 1.2 mm | |
| AZ-7120 | 1.47N | 0.392N | 13.5mm | 4.0mm | 3.2mm | 25 ± 1 mm | 35 mm |
| AZ-7 140 | 2.156N | 0.588N |
8.5mm |
2.5mm | 2.0mm | 25 ± 1 mm | 32 mm |
| AZ-7121 | 1.764N | 0.49N | 11.0mm | 3.0mm | 2.4mm | 40 ± 1mm | |
| AZ-7 141 | 2.352N | 0.784N | 6.5mm | 2.0mm | 1.5mm | 40 ± 1 mm | 46 mm |
| AZ-7124 | 1.96N | 0.588N | 11mm | 3.0mm | 2.4mm | 50 ± 1.2 mm | |
| AZ-7144 | 2.744N | 0.98N | 6.5mm | 2.0mm | 1.5mm | 50 ± 1.2 mm | 56 mm |
| AZ-7166 | 1.176N | 250mm | 11mm |
