The ball pressing machine can press and shape various mineral powders, metal powders, coal powders, coke powders and other materials. Due to the forced extrusion of the rollers, the products produced have the characteristics of high density, high strength and high hardness, and the pressure roller of this machine is made of 650mn hard material, which has good wear resistance. Effectively improve the service life of the pressure roller.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Flysun
-
Dimension(L*W*H):
-
1320*1200*1520
-
Name:
-
Charcoal briquette making machine
-
Keyword:
-
Coal Briquette Machine
-
Applicable raw materials:
-
metal powders, coal powders, coke powders
-
Capacity:
-
1000-1500kg/h
-
Power:
-
5.5-75kw
-
Final product:
-
ball briquette
-
Application are:
-
coal,metallurgy,mining,chemical industry
-
Briquette shape:
-
Round
Quick Details
-
Weight (KG):
-
800
-
Marketing Type:
-
Hot Product 2023
-
Production Capacity:
-
1000-1500kg/h
-
Place of Origin:
-
China
-
Brand Name:
-
Flysun
-
Dimension(L*W*H):
-
1320*1200*1520
-
Name:
-
Charcoal briquette making machine
-
Keyword:
-
Coal Briquette Machine
-
Applicable raw materials:
-
metal powders, coal powders, coke powders
-
Capacity:
-
1000-1500kg/h
-
Power:
-
5.5-75kw
-
Final product:
-
ball briquette
-
Application are:
-
coal,metallurgy,mining,chemical industry
-
Briquette shape:
-
Round

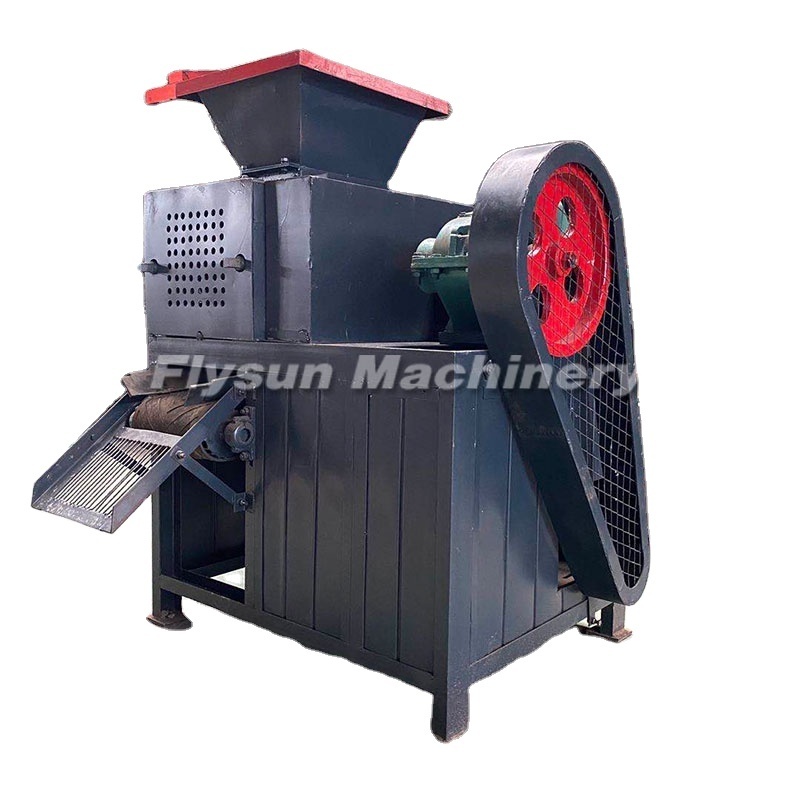

High Quality Charcoal briquette making machine Roller Press Coal Briquette Machine
Products Description
Charcoal briquette making machine
Product Applications
Working Principle
Charcoal briquette making machine orking Principle
In order to make the material into a ball at high pressure, the pre-compression screw of the charcoal briquette making machine is used to force the material to be formed into the middle of the roller. Due to the constant speed and reverse rotation, the material is compressed and formed. The unit pressure is from small to large until the center line of the roller is "0-0". At this point, the molding unit pressure reaches the maximum value. As the counter roller continues to rotate, the molding pressure continues to decrease, and it enters the ball-off state until the ball is off.
Technical Parameters
|
Model
|
Motor power(kw)
|
Capacity(charcoal)
(kg/h) |
Machine weight
(kg) |
Machine size
(mm) |
|
FS290
|
5.5
|
1000-1500
|
800
|
1320*1200*1520
|
|
FS360
|
7.5
|
2000
|
1100
|
1450*1470*1750
|
|
FS430
|
11
|
3000
|
2050
|
1630*1550*2350
|
|
FS550
|
18.5
|
5000
|
3200
|
2200*1850*2300
|
|
FS650
|
22
|
6000
|
5600
|
2400*1900*2500
|
|
FS850
|
75
|
10-15
|
7200
|
3100*2300*2600
|
Product Advantages
Features of Charcoal briquette making machine
1)The roller is made by hard material , with good wear resistance and long life time ;
2) Service life of wearing parts is up to 4000 hours ;
3) The charcoal forming equipment electricity cost reduces by 60%◇
4) Easy to operate and maintain ;
5) The molding material is energy - saving , easy to transport and higher utilization of waste ;
6) The final product is smokeless , non - toxic , none peculiar and environmental protection ;
7) The end products shapes include oval , round , square , bal egg - shaped and
pilow - shaped .
As the final products of the charcoal briquette making machine, the briquettes ball can be designed of oval shape, egg shape, pillow shape, star shape, square shape etc. We can also customize the size according to your required.
We can control the combustion effect of the charcoal briquette making machine by adjusting the formula of the binder. In other words, on the one hand, we can keep the burnt briquette in its original shape without spreading, on the other hand, we can also make it burned into ashes.
