Quick Details
-
Brand Name:
-
ZHEYONG
-
Model Number:
-
LXSG-15E-50E3
-
Color:
-
as is shown
-
Body Material:
-
Plastic
-
Q3/Q1:
-
R50/80/100
-
Size:
-
DN15mm to DN50mm
-
Feature:
-
Volumetric Rotary Piston, dry type
-
Standard:
-
ISO 4064 ClassB
-
Temperature:
-
30
-
Installation:
-
Horizonal
-
Product name:
-

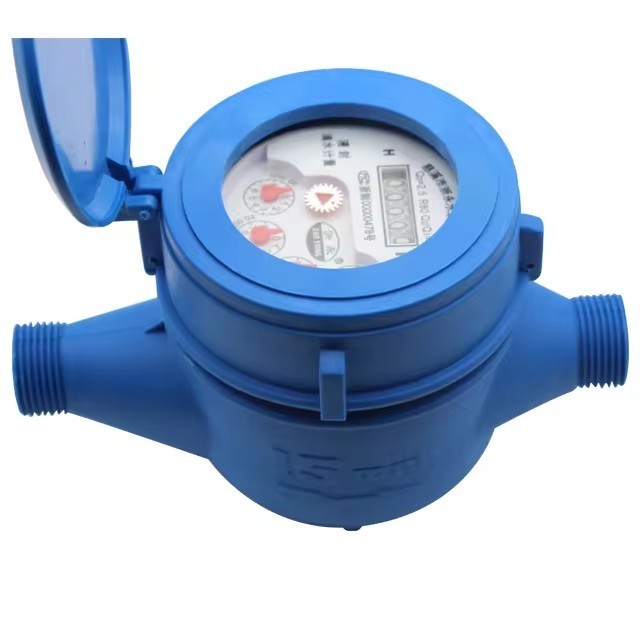

Rotary vane wheel multi jet dry type water meter
Quick Details
-
Warranty:
-
1 years
-
Type:
-
Multi-jet meters, Compound meters, Turbine meters, Electromagnetic meters, Ultrasonic meters, Prepaid water meters
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHEYONG
-
Model Number:
-
LXSG-15E-50E3
-
Color:
-
as is shown
-
Body Material:
-
Plastic
-
Q3/Q1:
-
R50/80/100
-
Size:
-
DN15mm to DN50mm
-
Feature:
-
Volumetric Rotary Piston, dry type
-
Standard:
-
ISO 4064 ClassB
-
Temperature:
-
30
-
Installation:
-
Horizonal
-
Product name:
-
Rotary vane wheel multi jet dry type water meter
Home
Products Description
DESCRIPTION
This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.
Compliance with standard: ISO 4064 Class B
FEATURE
•Dry-dial, magnetic drive, Resistance to exterior magnet interference
•Multi-jet
•Brass body，Cast iron body，Plastic body，Stainless steel body
•Selected high quality materials for steady&reliable characteristic
•Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
•Measuring accuracy conform to ISO 4064 class B Standard
•universal Use. Easy For Interchange&maintenance
INDICATING ERROR
WORKING CONDITION
Cold Water temperature:≤30°C
Hot Water temperature:≤90°C
Working pressure:≤1.0Mpa
MAIN TECHNICAL DATA
|
Meter size
Dia DN (mm) |
Class
|
Q4 Overload Flow
|
Q3 Nominal Flow
|
Q2 Transitional Flow
|
Q1 Min Flow
|
Min Reading Lectura
|
Max Reading Lectura
|
|||
|
|
|
m3/h
|
|
1/h
|
|
m3
|
|
|||
|
15
|
80
|
3.123
|
2.5
|
50
|
31.25
|
0.0001
|
99999
|
|||
|
|
100
|
|
|
40
|
25
|
|
|
|||
|
20
|
80
|
5
|
4
|
80
|
50
|
0.0001
|
99999
|
|||
|
|
100
|
|
|
64
|
40
|
|
|
|||
|
25
|
80
|
7.875
|
6.3
|
126
|
78.75
|
0.0001
|
99999
|
|||
|
|
100
|
|
|
100.8
|
63
|
|
|
|||
DIMENSIONS AND WEIGHT
|
Meter size
Dia DN (mm) |
L
length |
B
Width |
H
Height |
Connecting Thread
D |
Weight
kg |
||
|
|
mm
|
|
|
|
|
||
|
15
|
165
|
99
|
104
|
G3/4"B
|
1.5
|
||
|
20
|
190
|
99
|
106
|
G1"B
|
1.7
|
||
|
25
|
225
|
104
|
120
|
G11/4"B
|
2.4
|
||
|
32
|
230
|
104
|
120
|
G11/2"B
|
2.7
|
||
|
40
|
245
|
125
|
155
|
G2"B
|
4.5
|
||
|
50
|
300
|
125
|
155
|
G21/2"B
|
7.2
|
||
|
|
280
|
165
|
175
|
Flange connecting conform to
GB4216.4 D=165 D1=125 |
14
|
||
