Quick Details
-
Brand Name:
-
WX Holly
-
Material:
-
EPDM, PP/ABS,NBR,Silicon
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity, DN 170, 215, 260,350(mm)
-
Power:
-
0.5~5.5
-
Weight (KG):
-
3 kg
-
Product name:
-
Bubble Disc Diffuser
-
Packaging:
-
Wooden Case/Carton Box
-
Application:
-
Fish Farming
-
Capacity:
-
customized
-
After-sales Service Provided:
-
On-line Support
-
Keywords:
-
Easy to operate
-
Color:
-
Black,White
-
Certification:
-
CE Certificate, IOS 9001
-
Type:
-
Disc,Tube,Plate
Quick Details
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
others
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WX Holly
-
Material:
-
EPDM, PP/ABS,NBR,Silicon
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity, DN 170, 215, 260,350(mm)
-
Power:
-
0.5~5.5
-
Weight (KG):
-
3 kg
-
Product name:
-
Bubble Disc Diffuser
-
Packaging:
-
Wooden Case/Carton Box
-
Application:
-
Fish Farming
-
Capacity:
-
customized
-
After-sales Service Provided:
-
On-line Support
-
Keywords:
-
Easy to operate
-
Color:
-
Black,White
-
Certification:
-
CE Certificate, IOS 9001
-
Type:
-
Disc,Tube,Plate

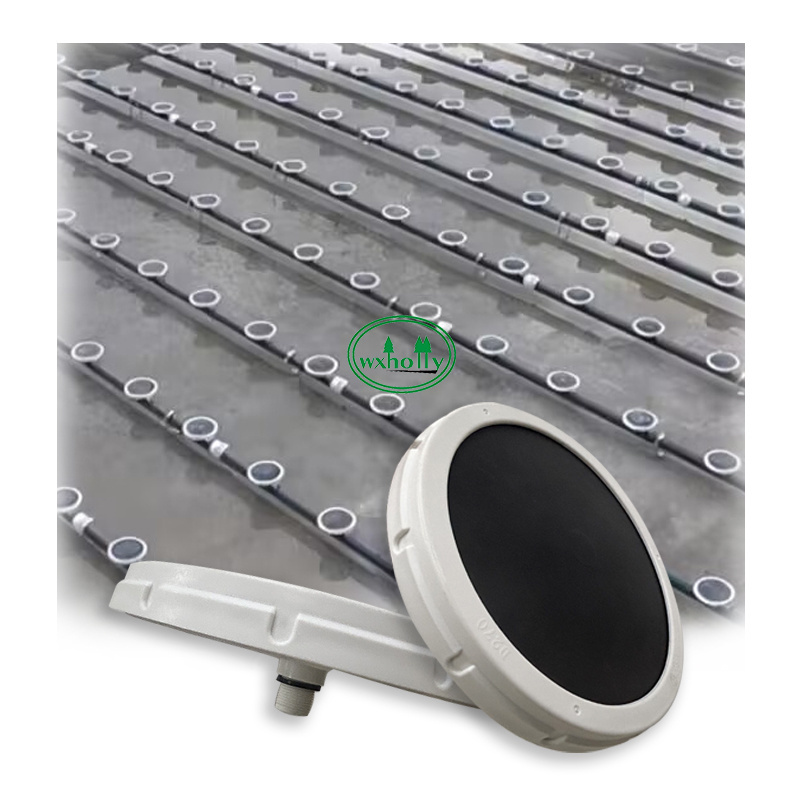

WX Holly Aeration's Fine Bubble Disc Diffusers for sale offer superior component quality and advanced engineering.As our most popular product, they fit a wide range of engineering specifications, system standards applications, and industries. We pride ourselves on their sophisticated, versatile design that keeps treatment systems running around the world
|
Model
|
HLBQ-215
|
HLBQ-270
|
HLBQ-350
|
HLBQ-650
|
|||
|
Bubble Type
|
Fine Bubble
|
|
|
|
|||
|
Size
|
8 inch
|
9 inch
|
12 inch
|
675*215mm
|
|||
|
MOC
|
EPDM/Silicone/PTFE – ABS/Strengthened PP-GF
|
|
|
|
|||
|
Connector
|
3/4''NPT male thread
|
|
|
|
|||
|
Membrane Thickness
|
2mm
|
|
|
|
|||
|
Bubble Size
|
1-2mm
|
|
|
|
|||
|
Design Flow
|
1.5-2.5m3/h
|
3-4m3/h
|
5-6m3/h
|
6-14m3/h
|
|||
|
Flow Range
|
1-6m3/h
|
1-8m3/h
|
1-12m3/h
|
1-16m3/h
|
|||
|
SOTE
|
≥38%
|
≥38%
|
≥38%
|
≥40%
|
|||
|
|
（6m submerged）
|
|
|
|
|||
|
SOTR
|
≥0.31kg O2/h
|
≥0.45kg O2/h
|
≥0.75kg O2/h
|
≥0.99kg O2/h
|
|||
|
SAE
|
≥8.9kg O2/kw.h
|
≥8.9kg O2/kw.h
|
≥8.9kg O2/kw.h
|
≥9.2kg O2/kw.h
|
|||
|
Headloss
|
1500-4300Pa
|
|
|
2000-3500Pa
|
|||
|
Service Area
|
0.2-0.64m2/pcs
|
0.25-1.0m2/pcs
|
0.4-1.5m2/pcs
|
0.5-0.25m2/pcs
|
|||
|
Service Life
|
＞5 years
|
|
|
|
|||
