Quick Details
-
Max airflow:
-
265/315m3/h
-
Max pressure:
-
220/230mbar
-
Max vacuum:
-
-235/-245mbar
-
Color:
-
Silver
-
Material:
-
Aluminum alloy
-
Net Weight:
-
28KG
-
Usage:
-
High suction air and high pressure blowing
-
Product name:
-
single phase side channel blower
-
Motor material:
-
100% copper coil
Quick Details
-
Pressure:
-
High Pressure
-
Place of Origin:
-
Guangdong, China
-
Frequency:
-
50/60 Hz
-
Max airflow:
-
265/315m3/h
-
Max pressure:
-
220/230mbar
-
Max vacuum:
-
-235/-245mbar
-
Color:
-
Silver
-
Material:
-
Aluminum alloy
-
Net Weight:
-
28KG
-
Usage:
-
High suction air and high pressure blowing
-
Product name:
-
single phase side channel blower
-
Motor material:
-
100% copper coil

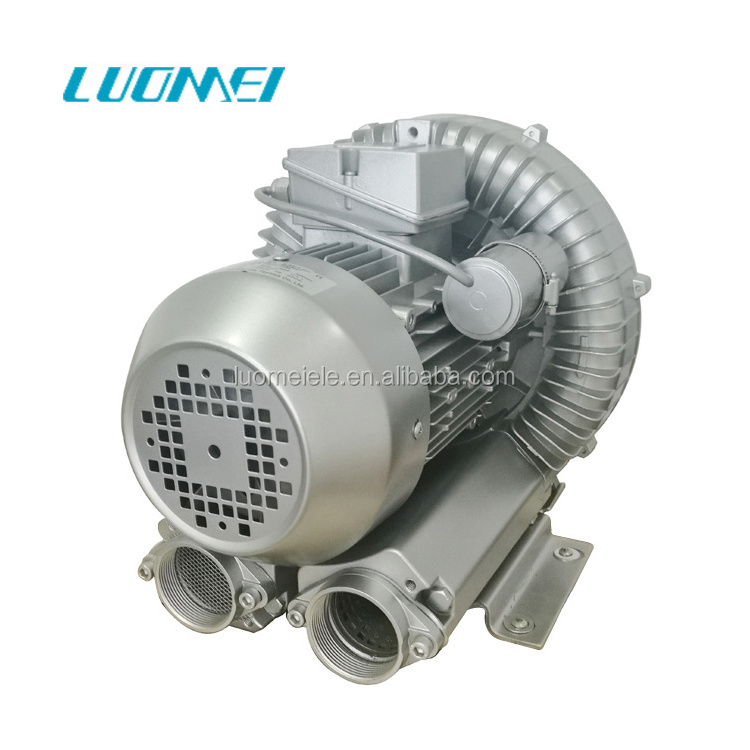

2.2KW 3HP Single Phase 1 Stage Ring Blower Side Channel Air Blower
1. Technical Paramater
Model: 2LM610-A11
Power: 2.2/2.55KW
Voltage: 220-240V
Phase: 1 (single)
Frequency: 50/60Hz
Max airflow: 265/315 m3/h
Max pressure: +220/+230 mbar
Max vacuum: -235/-245mbar
Net weight: 28KG
Inlet/Outlet diameter: G 2" (55mm)
Diameter: 360*366*366mm
2. Other main model
Model | Phase |
Frequency (Hz) |
Power (KW) |
Voltage (V) |
Max airflow (m3/h) |
Max pressure (mbar) |
Max vacuum (mbar) |
Weight (KG) |
Single Stage Ring Blower | ||||||||
2LM210-A11 | 1 | 50 | 0.37 | 220-240 | 80 | 110 | -110 | 11 |
60 | 0.45 | 220-240 | 96 | 140 | -130 | |||
2LM410-A01 | 1 | 50 | 0.7 | 220-240 | 145 | 120 | -120 | 14 |
60 | 0.83 | 220-240 | 175 | 130 | -130 | |||
2LM510-A21 | 1 | 50 | 1.5 | 220-240 | 210 | 200 | -190 | 24 |
60 | 1.75 | 220-240 | 255 | 180 | -188 | |||
2LM210-H16 | 3 | 50 | 0.4 | 200-240/345-415 | 80 | 130 | -120 | 10 |
60 | 0.5 | 220-275/380-480 | 98 | 160 | -150 | |||
2LM410-H06 | 3 | 50 | 0.7 | 200-240/345-415 | 145 | 120 | -120 | 13 |
60 | 0.83 | 220-275/380-480 | 175 | 130 | -130 | |||
2LM510-H26 | 3 | 50 | 1.5 | 200-240/345-415 | 210 | 190 | -200 | 23 |
60 | 2.05 | 220-275/380-480 | 255 | 210 | -220 | |||
2LM510-H36 | 3 | 50 | 2.2 | 200-240/345-415 | 210 | 270 | -220 | 25 |
60 | 2.55 | 220-275/380-480 | 255 | 290 | -260 | |||
2LM710-H26 | 3 | 50 | 3.0 | 200-240/345-415 | 318 | 290 | -270 | 36 |
60 | 3.45 | 220-275/380-480 | 376 | 230 | -250 | |||
2LM710-H37 | 3 | 50 | 4.0 | 345-415/600-720 | 318 | 330 | -290 | 40 |
60 | 4.6 | 380-480/660-720 | 376 | 330 | -330 | |||
2LM810-H17 | 3 | 50 | 5.5 | 345-415/600-720 | 530 | 300 | -300 | 63 |
60 | 6.3 | 380-480/660-720 | 620 | 280 | -300 | |||
2LM810-H27 | 3 | 50 | 7.5 | 345-415/600-720 | 530 | 430 | -320 | 66 |
60 | 8.6 | 380-480/660-720 | 620 | 400 | -350 | |||
2LM910-H17 | 3 | 50 | 12.5 | 345-415/600-720 | 1050 | 270 | -280 | 93 |
60 | 14.5 | 380-480/660-720 | 1250 | 260 | 270 | |||
Double Stage Ring Blower | ||||||||
2LM420-H36 | 3 | 50 | 1.5 | 200-240/345-415 | 150 | 280 | -280 | 25 |
60 | 2.05 | 220-275/380-480 | 180 | 310 | -320 | |||
2LM420-H46 | 3 | 50 | 2.2 | 200-240/345-415 | 150 | 440 | -330 | 27 |
60 | 2.55 | 220-275/380-480 | 180 | 420 | -350 | |||
2LM720-H47 | 3 | 50 | 5.5 | 345-415/600-720 | 320 | 500 | -440 | 66 |
60 | 6.3 | 380-480/660-720 | 380 | 500 | -440 | |||
2LM820-H27 | 3 | 50 | 7.5 | 345-415/600-720 | 520 | 440 | -400 | 86 |
60 | 8.6 | 380-480/660-720 | 620 | 330 | -360 | |||
2LM820-H37 | 3 | 50 | 11 | 345-415/600-720 | 520 | 600 | -430 | 104 |
60 | 12.6 | 380-480/660-720 | 620 | 600 | -460 | |||
2LM820-H47 | 3 | 50 | 15 | 345-415/600-720 | 520 | 670 | -460 | 120 |
60 | 17.3 | 380-480/660-720 | 620 | 750 | -490 |
We have many other model for you choose, if you want, please contact with me ,so we can send catalog to you.
3. Dimensions:
Size( L*W*H ): 360*366*366mm, Inlet and outlet diameter: 56mm.
4. Features:
- Beautiful surface,Easy installation,Low noise level
- No vibration, and therefore complete dynamic stability
- Pulsation-free discharge,free maintenance
- Higher pressure ratio,100% oil free
- High temperature-resistant bearings with longer grease life
- Suitable for environmental protection
- Wide frequency motor with IP54,CALSS F
- Passed CE,CCC,test
- Air capacity:from 40m 3 /h to 2500m 3 /h
- Pressure:from 60mbar to 1040mbar
5. Accessories:
We also have some parts for your application, if you need, welcome to tell me.
Air filter : Filter the dust particles, apply to a bad environment.
Pressure relief valve : Control gas pressure, prevent excessive pressure, damage the machine.
Silencer : reduce blower noise 5-10db, apply to a quiet environment.
6. Application:
1. Pneumatic conveying systems.
2. Vacuum lifting systems.
3. Fish and shrimp pond oxygen supply.
4. Wastewater treatment and electroplating pool aeration.
5. Packing and printing machines.
6. Bottle drying system with air knife.
7. Dental vacuum suction machine and medical equipments.
8. Textile machines.
9. Smoke extraction in industry or kitchen.
10. Food processing drying .
11. Vegetable washing machine.
12. Industry vacuum clenaer.
13. Soil remediation
