Quick Details
-
Certification:
-
BHMA, UL, ANSI/BHMA
-
Warranty:
-
10 Years
-
Mortise:
-
ANSI Standard Mortise
-
Function:
-
Multi-function
-
Product Name:
-
Mortise lockset
-
Key:
-
Iron Key
-
Description:
-
Latchbolt retracted by knob/lever on either side
-
Material:
-
Aluminum Alloy
-
Keyword:
-
Door Lockset
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lawrence
-
Application Door:
-
Commercial
-
Certification:
-
BHMA, UL, ANSI/BHMA
-
Warranty:
-
10 Years
-
Mortise:
-
ANSI Standard Mortise
-
Function:
-
Multi-function
-
Product Name:
-
Mortise lockset
-
Key:
-
Iron Key
-
Description:
-
Latchbolt retracted by knob/lever on either side
-
Material:
-
Aluminum Alloy
-
Keyword:
-
Door Lockset

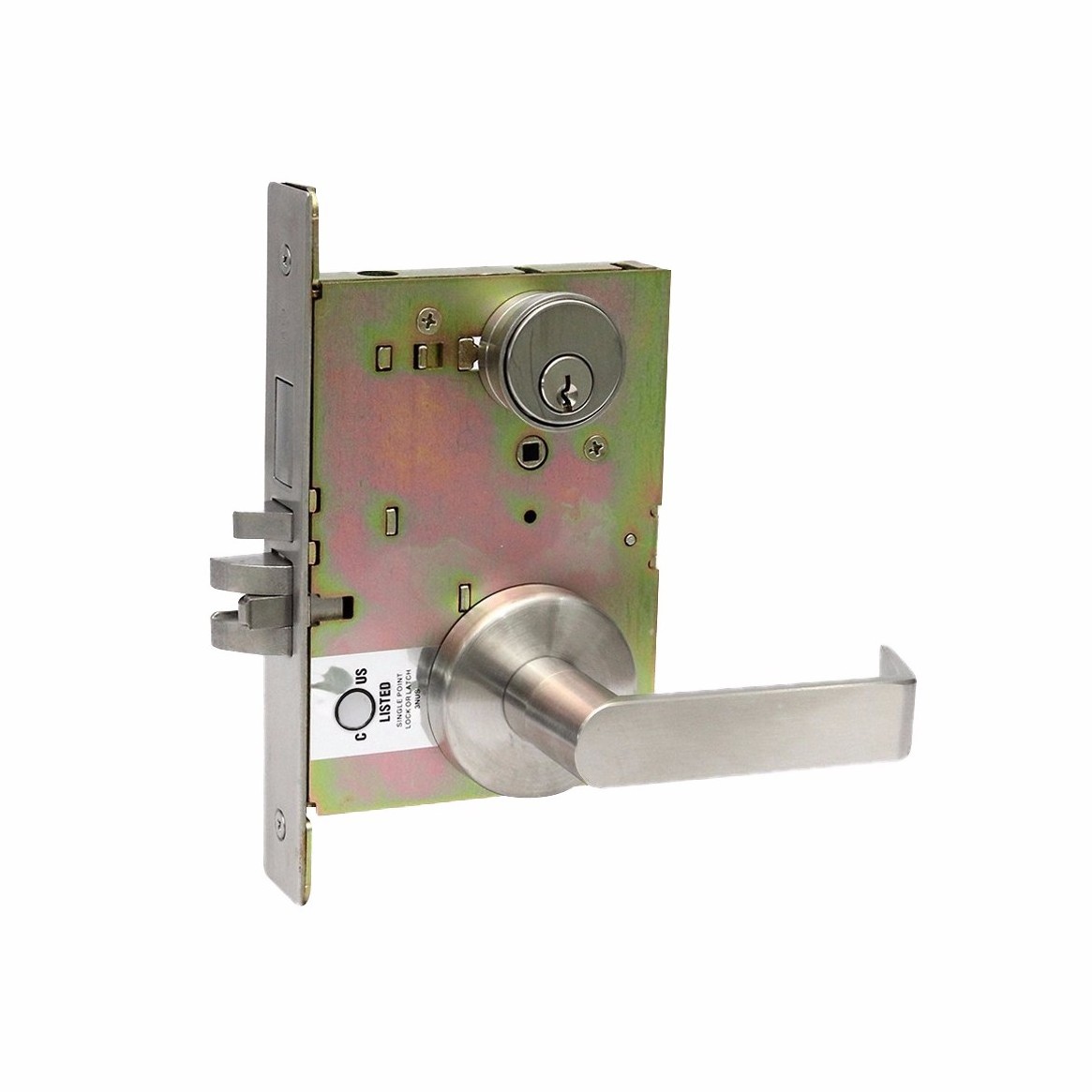

8700 Series Mortise Lockset Grade 1 Extra
FEATURES
Latchbolt and deadbolt are fabricated from stainless steel Internal parts are fabricated from high strength steel alloy
Mortise lock case and internal components are treated to ensure corrosion resistance Lockcase can be reversed without disassembling the lock body
High strength steel alloy cylinder retainer
Two piece anti friction latchbolt reduces wear and tear Hub blocking plate guards against spindle manipulation
CERTIFICATIONS
ANSI/BHMA A156.13 Series 1000 Grade 1 Operational and Security
ADA Compliant ANSI A117.1 Accessibility Code
cUL/UL Listed up to 3 hours UL10C Positive Pressure Rated UL10B Neutral Pressure Rated
SPECIFICATIONS
Case size 4-5/16” x 6” x 1” (110mm x 152mm x 25mm)
Armour Front 1-1/4” x 8” (32mm x 203mm)
Backset 2-3/4” (70mm) only
Preparation Conforms to ANSI A115.1
Door Range 1-3/4” (44mm). Specify if other door thickness required
Bevelled Doors Self adjusting tabs on case Deadbolt 1” (25mm) throw, stainless steel
Latchbolt 3/4” (19mm) throw, with anti-friction tongue, stainless steel
Deadlocking Non-handed, stainless steel
Through Bolts Through bolted trim aligns with mortise lock case Stop works Incorporated into thumbturn
Strike 1-1/4” x 4-7/8” Curved lip, square corner. Extended lip strikes available
Spindles Break-away under excessive torque. Preventing forced entry or lock damage Cylinder 6 pin cylinder standard, with two keys, “C” keyway
IC Core Interchangeable Core (IC) available
Cam All cylinder functions use standard butterfly style cam Cylinder Collar Compression ring and collar supplied standard
Fasteners Concealed under the rose or escutcheon
Standard Finishes Standard levers US32D (630), Designer levers US32D (630) and US15 (619) Other finishes available. Extended lead time required
8700 Series Standard Functions
NON KEYED WITHOUT DEADBOLT
PART NUMBER FUNCTION ANSI NUMBER
8701 Passage F01
8722 Privacy F22
KEYED WITHOUT DEADBOLT
|
8704 |
Office |
F04 |
|
8705 |
Classroom |
F05 |
|
8707 |
Storeroom |
F07 |
KEYED WITH DEADBOLT
|
8713 |
Corridor |
F13 |
|
8714 |
Storeroom |
F-- |
|
8720 |
Entrance |
F20 |
|
8721 |
Dormitory |
F21 |
DEADBOLT FUNCTIONS
8717 Deadbolt with turn F17
8718 Deadbolt w/o turn F18 Note: Other functions available upon request
8700 SERIES OPTIONS
Lead Lined Mortise Body Torx Plus Fasteners Coin Turn
Handicap thumb turn Occupied Indicator Anti microbial coating Tactile warning
8700 SERIES ELECTRICAL OPTIONS
Electrically locked, (Fail Safe) Electrically unlocked, (Fail Secure) REX - Request to Exit*
LBM - Latchbolt Monitor Electric Latch Retraction
Note: See electrical section for specifications
