High Quality Hammer
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1750*950*1550
-
Weight:
-
1300 kg
-
Marketing Type:
-
Factory Direct Supply
-
Application:
-
Poultry Farm
-
Product name:
-

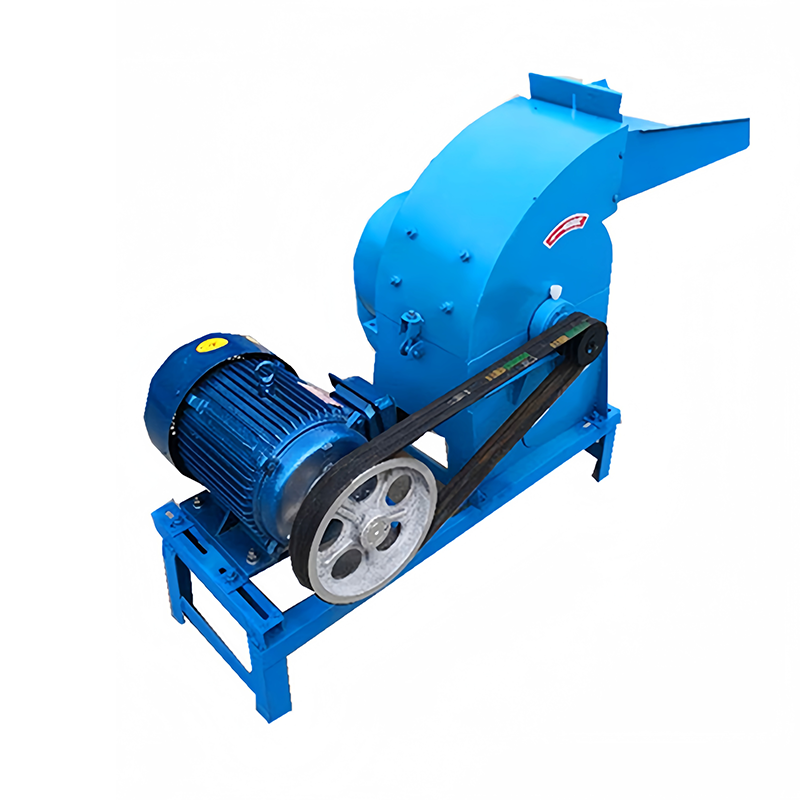

Hammer Mill
-
Usage:
-
Raw Material Grinding
-
Function:
-
Milling
-
Color:
-
Clients' Requirement
-
Advantage:
-
Easy Operation High Efficiency
-
Material:
-
Durable Carbon Steel
-
Feature:
-
Long Servicing Time
-
Processing Types:
-
Feed Mill Grinder
-
Spare parts:
-
Hammer Blades
Quick Details
-
Max. Capacity:
-
50-5000kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MAOSU
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1750*950*1550
-
Weight:
-
1300 kg
-
Marketing Type:
-
Factory Direct Supply
-
Application:
-
Poultry Farm
-
Product name:
-
Hammer Mill
-
Usage:
-
Raw Material Grinding
-
Function:
-
Milling
-
Color:
-
Clients' Requirement
-
Advantage:
-
Easy Operation High Efficiency
-
Material:
-
Durable Carbon Steel
-
Feature:
-
Long Servicing Time
-
Processing Types:
-
Feed Mill Grinder
-
Spare parts:
-
Hammer Blades
easy operation automatic corn cob wood pellet crusher hammer mill grinding machine
Product Description
Hammer Mill Hammer Mill+Cyclone
Electric Motor Diesel Engine
Structure and working principle of hammer mill
This machine is composed of a feeding hopper, upper and lower bodies, rotors, screens, fans, conveying pipes and other parts. Users can equip storage bags or storage bins according to their own needs. After the material enters the crushing chamber from the feed hopper, it is crushed by the impact of the high-speed rotating hammer. Driven by the airflow, the crushed objects are continuously crushed along the outer edge of the rotor by hitting, colliding and rubbing against hammers, tooth plates, and screens. The crushed powder particles are quickly transported to the storage bag or storage bin through the sieve due to the centrifugal pressure of the rotor and the suction force of the fan.
Widely Application
Grain Corn Beans
Medicinal Materials Woods H
ay
Corn Stalks Peanut Shells Coal Gangue
This series of hammer mills can crush all kinds of branches, bark, corn stalks, peanut shells, hay, cotton stalks, etc. This series of crushers has simple structure, high production efficiency, convenient operation, reliable use and easy maintenance; it is suitable for all kinds of users. In addition, this machine can also crush Chinese medicinal materials, quartz, coal, coal gangue, wood and other medical and industrial raw materials.
Our Advantages
A variety of sizes of screens are available, the screens can be replaced, and the thickness can be adjusted
Strong power, good heat dissipation, durable, energy-saving
Specification
|
Model
|
Power (kw)
|
Capacity(kg/h)
|
Weight(kg)
|
Dimension(mm)
|
|
9FQ-320
|
5.5 kw
|
300 -350
|
260
|
900 x 500 x 800
|
|
9FQ-420
|
7.5 kw
|
400 -500
|
350
|
1100 x 550 x 850
|
|
9FQ-500-28
|
15 kw
|
600 -800
|
450
|
1250 x 650 x 1000
|
|
9FQ-500-40
|
22 kw
|
900 -1000
|
750
|
1400 x 780 x 1250
|
|
9FQ-500-50
|
30 kw
|
1000- 1500
|
900
|
1600 x 850 x 1350
|
|
9FQ-500-60
|
37 kw
|
1500- 2000
|
1300
|
1750 x 900 x 1550
|
