Quick Details
-
Brand Name:
-
ZEYUZHONGGONG
-
Motor Power:
-
2*37kw
-
Charging Capacity:
-
3200L
-
Reclaiming capacity:
-
2000L
-
Speed of Mixing Drum:
-
23r/min
-
Water Supply Mode:
-
Water Pump Motor
-
Working Cycle Period:
-
30s-45s
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
5058*2250*2440mm
-
Weight (KG):
-
15000 kg
-
Product name:
-
Twin shaft concrete mixer 2 yard concrete mixer
-
Application:
-
Construction Industry
-
Color:
-
Customer's Requirement
-
Weight:
-
15000kg
-
Capacity:
-
100m3/h
-
Certificate:
-
CE/ISO9001
-
Mixer:
-
JS2000 Concrete Mixer Machine
-
Advantage:
-
Easy Operation
-
Discharge height:
-
3800mm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Mixing Power:
-
2*37kw
-
Productivity:
-
≤100m3/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZEYUZHONGGONG
-
Motor Power:
-
2*37kw
-
Charging Capacity:
-
3200L
-
Reclaiming capacity:
-
2000L
-
Speed of Mixing Drum:
-
23r/min
-
Water Supply Mode:
-
Water Pump Motor
-
Working Cycle Period:
-
30s-45s
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
5058*2250*2440mm
-
Weight (KG):
-
15000 kg
-
Product name:
-
Twin shaft concrete mixer 2 yard concrete mixer
-
Application:
-
Construction Industry
-
Color:
-
Customer's Requirement
-
Weight:
-
15000kg
-
Capacity:
-
100m3/h
-
Certificate:
-
CE/ISO9001
-
Mixer:
-
JS2000 Concrete Mixer Machine
-
Advantage:
-
Easy Operation
-
Discharge height:
-
3800mm
-
After Warranty Service:
-
Video technical support

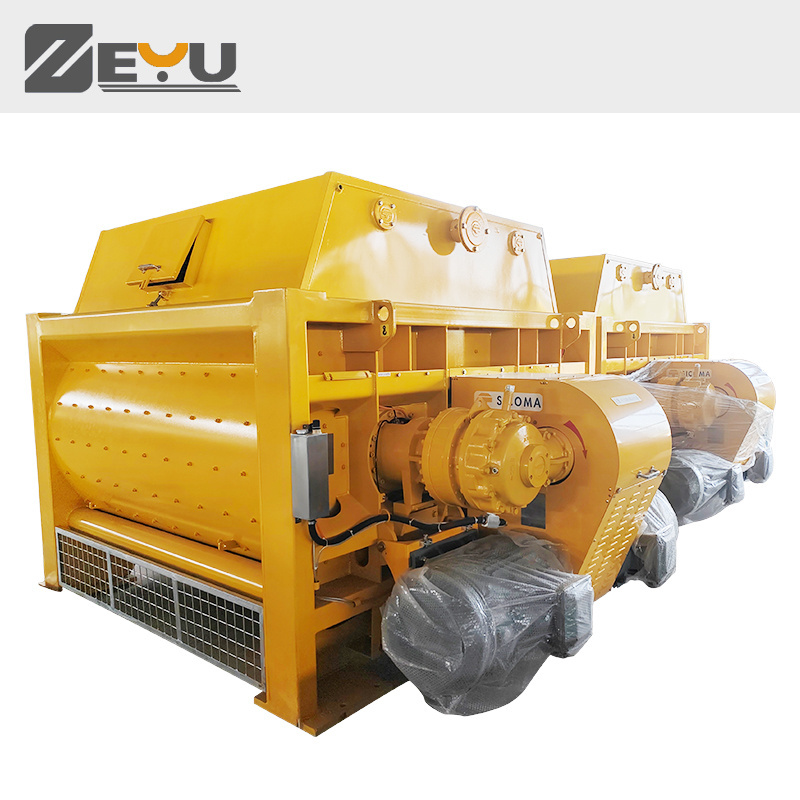

Twin shaft concrete mixer JS2000 2 yard concrete mixer
JS series twin shaft concrete mixer can be used for mixing kinds of the concretes, such as hard concrete, plastic concrete, fluid concrete,light aggregate concrete and other kinds of mortars.
Specification
It can be used alone or as a supporting host for concrete mixing stations (buildings)
Mainly Model No.Specification as Follows:
|
Items Model
|
|
JS500
|
JS750
|
JS1000
|
JS1500
|
JS2000
|
|
|
Loading volume(L)
|
|
800
|
1200
|
1600
|
2400
|
3200
|
|
|
Unloading volume(L)
|
|
500
|
750
|
1000
|
1500
|
2000
|
|
|
Productivity(m3/h)
|
|
≤25
|
≤35
|
≤50
|
≤75
|
≤100
|
|
|
Maximum aggregate size (egg / gravel mm)
|
|
80/60
|
80/60
|
80/60
|
80/60
|
80/60
|
|
|
Mixing blade
|
Revolving speed(r/min)
|
35
|
30.5
|
25.5
|
25.5
|
23
|
|
|
|
Quantity
|
14
|
18
|
20
|
22
|
20
|
|
|
Mixing motor
|
Model
|
Y180M-4-18.5
|
Y200L-4-30
|
Y200L1-6-18.5
|
Y225M-6-30
|
Y280S-6-37
|
|
|
Winding motor
|
Model
|
YEZ132S-4-5.5
|
YEZ132M-4-7.5
|
YEZ180M-4-18.5
|
YEZ200L1-6-22
|
|
|
|
Hopper lifting speed（m/min）
|
|
18
|
19.2
|
21.9
|
23
|
|
|
The components of the mixer includes the mixing equipment, driving device, discharging device, charging device, lubricating system,control system and so on.
Details show
JS series double-shaft forced concrete mixer feature:
1. JS series double-shaft forced concrete mixer is based on years of experience in the industry, learning Italian and German advanced technology, and has a stable operation, low noise, good mixing quality, high production efficiency, simple operation and convenient maintenance.
2.
Concrete mixer has the advantages of low energy consumption, long life and low cost of use. It can be used alone or as a supporting host for concrete batching plant.
3.It is suitable for roads, railways, bridges, water conservancy and hydropower, prefabricated fields, commercial concrete companies, etc.
