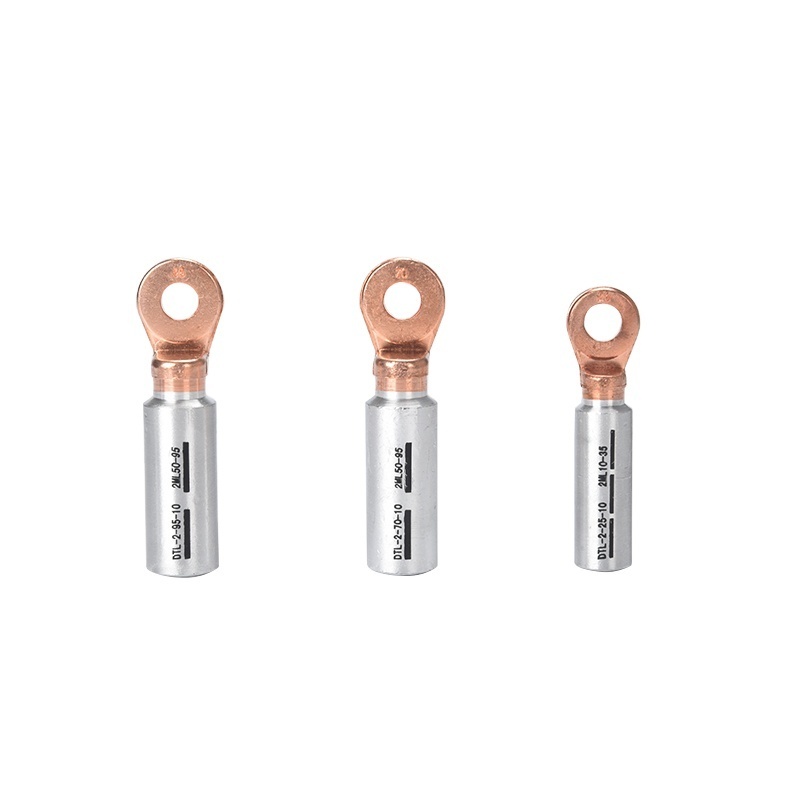

HOGN DTL-2/B Type Copper and Aluminium Electric Power Connector Terminals

HOGN DTL-2/B Type Copper and Aluminium Electric Power Connector Terminals

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Quality Rank:: Higher Than National Electric Criteria

Material:: Copper and Aluminium

Usage:: Overhead Transmission Line

Application:: Wire Connecting

Color:: Natural

Certificate:: ISO9001

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: HOGN

Model Number:: DTL-2/B

Quality Rank:: Higher Than National Electric Criteria

Material:: Copper and Aluminium

Usage:: Overhead Transmission Line

Application:: Wire Connecting

Color:: Natural

Certificate:: ISO9001

Type	Conductor Size(mm²)	L(mm)	d(mm)	B(mm)	Stud Size	Tool/Crimping Die
DTL-2-10-8/B	10	78	4.5	20	M8	2ML10-35
DTL-2-10-10/B	10	78	4.5	20	M10
DTL-2-16-8/B	16	78	5.7	20	M8
DTL-2-16-10/B	16	78	5.7	20	M10
DTL-2-25-8/B	25	78	6.5	20	M8
DTL-2-25-10/B	25	78	6.5	20	M10
DTL-2-35-8/B	35	78	8.1	20	M8
DTL-2-35-10/B	35	78	8.1	20	M10
DTL-2-50-10/B	50	86.5	9.1	24	M10	2ML50-95
DTL-2-50-12/B	50	86.5	9.1	24	M12
DTL-2-70-10/B	70	86.5	11	24	M10
DTL-2-70-12/B	70	86.5	11	24	M12
DTL-2-95-10/B	95	86.5	12.5	24	M10
DTL-2-95-12/B	95	86.5	12.5	24	M12
DTL-2-120-10/B	120	110	13.8	30	M10	2ML120-150
DTL-2-120-12/B		110	13.8	30	M12
DTL-2-120-16/B		110	13.8	30	M16
DTL-2-150-10/B	150	110	15.5	30	M10
DTL-2-150-12/B		110	15.5	30	M12
DTL-2-150-16/B		110	15.5	30	M16
DTL-2-185-10/B	185	116	17	35	M10	2ML185-240
DTL-2-185-12/B		116	17	35	M12
DTL-2-185-16/B		116	17	35	M16
DTL-2-185-20/B		116	17	35	M20
DTL-2-240-10/B	240	116	19.5	35	M10
DTL-2-240-12/B		116	19.5	35	M12
DTL-2-240-16/B		116	19.5	35	M16
DTL-2-240-20/B		116	19.5	35	M20
DTL-2-300-10/B	300	149.5	23.3	36	M10	2ML300-400
DTL-2-300-12/B		149.5	23.3	36	M12
DTL-2-300-16/B		149.5	23.3	36	M16
DTL-2-300-20/B		149.5	23.3	36	M20
DTL-2-400-10/B	400	149.5	26	36	M10
DTL-2-400-12/B		149.5	26	36	M12
DTL-2-400-16/B		149.5	26	36	M16
DTL-2-400-20/B		149.5	26	36	M20
