Quick Details
-
Voltage:
-
440V, 440V, 50Hz
-
Dimension(L*W*H):
-
5000*2200*2200MM
-
Weight:
-
11000KG, 11000KG
-
Working Pressure:
-
250 bar
-
Marketing Type:
-
New Product
-
After Warranty Service:
-
Online support
-
Certification:
-
CE
-
Cooling method:
-
Water Cooling
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SCNTTC
-
Model Number:
-
VF-1.52/10-250
-
Voltage:
-
440V, 440V, 50Hz
-
Dimension(L*W*H):
-
5000*2200*2200MM
-
Weight:
-
11000KG, 11000KG
-
Working Pressure:
-
250 bar
-
Marketing Type:
-
New Product
-
After Warranty Service:
-
Online support
-
Certification:
-
CE
-
Cooling method:
-
Water Cooling
High Discharge Pressure 25MPa CNG Natural Gas Compressor with Low Noise
Technical Specification
| Model No. | VF-1.52/10-250 |
| Volume flow | 1.52m3/min |
| Intake pressure | 1.0MPa |
| Delivery pressure | 25MPa |
| Compression stage | IV stages |
| Cooling mode | Air |
| Weight | 11000KG |
| Size(L*W*H MM) | 5000*2200*2200MM |
Products features:
The VF-1.52/10-250 natural gas compressor is applied advanced and reliable components and is designed with advanced design methods. It has features of high efficiency, high reliability, high degree of automation, less wearing parts and low vibration, low noise, easy operation and maintenance etc.
1. V-series of compressor is V-type, that is, the cylinder arranged as "V".
2. Companct structure, occupies small, air-cooled, mixture cooled, water cooled, box-type.
3. Suitable for medium, small-scale CNG standard station and other facilities and industries. In particular, the compressor is suitable for small occupy area and dry area.

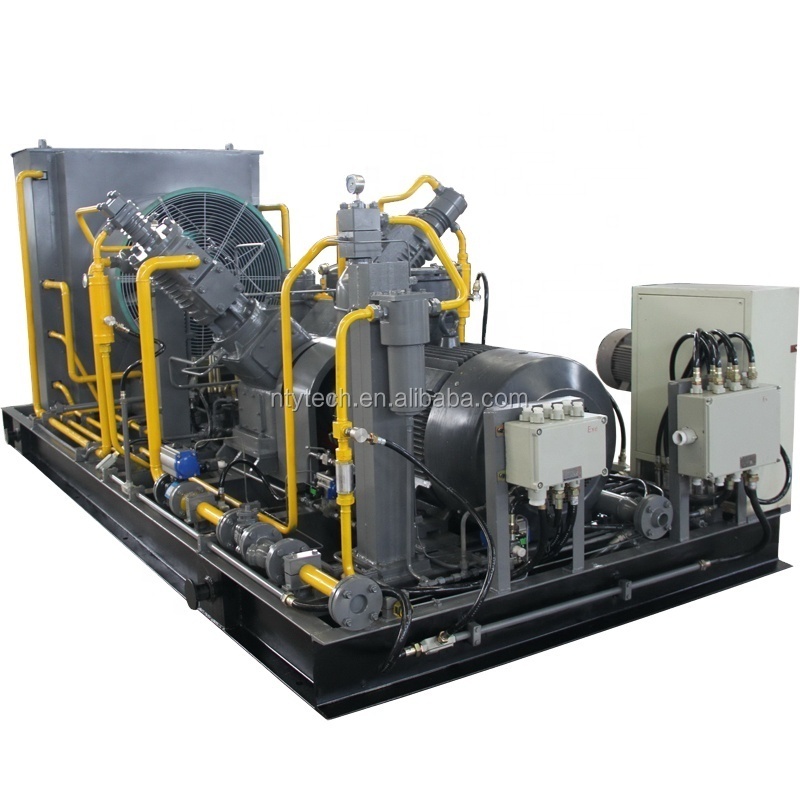

Figure Photos
