Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
12500kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, No after-sales service, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Place of Origin:
-
Shanxi, China
-
Dimensions (L x W x H) (mm):
-
8329x2490x3450mm
-
Cargo Tank Dimension:
-
5600x2300x1500mm
-
Fuel Tank Material:
-
Aluminium alloy
-
Approach Angle:
-
≥25°
-
Departure Angle:
-
15°-20°
-
Driving Cab Roof:
-
Flat
-
Sunroof:
-
Sunroof
-
Seats Material:
-
Fabric
-
Colour:
-
optional
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
12500kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, No after-sales service, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Place of Origin:
-
Shanxi, China
-
Dimensions (L x W x H) (mm):
-
8329x2490x3450mm
-
Cargo Tank Dimension:
-
5600x2300x1500mm
-
Fuel Tank Material:
-
Aluminium alloy
-
Approach Angle:
-
≥25°
-
Departure Angle:
-
15°-20°
-
Driving Cab Roof:
-
Flat
-
Sunroof:
-
Sunroof
-
Seats Material:
-
Fabric
-
Colour:
-
optional
Contact
Sales Manager
Chelsea Cheng
Newindu International Ltd.
www.newindu.com
Wechat/WhatsApp/Mobile: +86-19851893509
Chelsea Cheng
Newindu International Ltd.
www.newindu.com
Wechat/WhatsApp/Mobile: +86-19851893509
Popular Types of F2000 Dump Truck In Stock Fast Delivery
Products Description
Expectations and demands are on the raise and the F2000 F3000 H3000 X3000 series is the solution. With many configurations available to choose,from the standard tipper or trailer trucks to highly specialized vehicles F2000 F3000 H3000 X3000 has you covered. No matter what the job entails, our qualified professionals can help you pick out the perfect vehicle.
Weichai core power upgrade, FAST twin center shaft structure gearbox, HanDe high ratio single stage axle, vehicle power increased by 20%, Weichai engine .
High performance: Improved muffler, improved ground clearance, new exhaust system layout, lowest center of gravity, new
stabilizing technology .
Military grade chassis, reinforced driver cab, upgraded oil bath type air filter, strengthened transmission shaft, improved cab front suspension, new front axle stabilizer bar and muffler, imported cab turning shaft, off road racing quality cab damping spring.
Mature power delivery system, increased overall efficiency, higher uptime, lower maintenance cost.
Weichai core power upgrade, FAST twin center shaft structure gearbox, HanDe high ratio single stage axle, vehicle power increased by 20%, Weichai engine .
High performance: Improved muffler, improved ground clearance, new exhaust system layout, lowest center of gravity, new
stabilizing technology .
Military grade chassis, reinforced driver cab, upgraded oil bath type air filter, strengthened transmission shaft, improved cab front suspension, new front axle stabilizer bar and muffler, imported cab turning shaft, off road racing quality cab damping spring.
Mature power delivery system, increased overall efficiency, higher uptime, lower maintenance cost.
Specification
|
Model
|
|

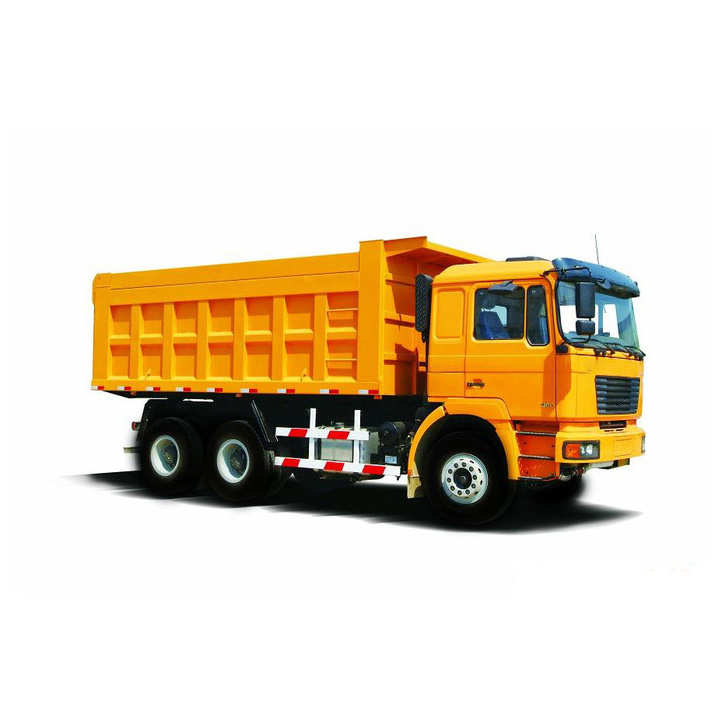

Shacman F2000 Dump Truck
|
|
|
Driving type
|
|
6x4, 4x2, 8x4
|
|
|
Weight
|
Complete kerb mass (kg)
|
14500
|
|
|
|
GVW (kg)
|
32500
|
|
|
Dimensions
|
LxWxH (mm)
|
8329x2490x3450
|
|
|
|
Body size(mm)
|
5600x2300x1100,1300,1500
|
|
|
|
Front/rear overhang(chassis)
|
1525/1650
|
|
|
|
Wheel base (mm)
|
3800+1350
|
|
|
|
Track width (mm)
|
2036/1850
|
|
|
Performance
|
Max. speed ( km/h)
|
74
|
|
|
|
Min. turning circle (m)
|
17
|
|
|
|
Min. ground clearance (mm)
|
314
|
|
|
|
Approach/Departure angle(°)
|
22/30
|
|
|
|
Max. gradeability (%)
|
33
|
|
|
Transmission
|
Brand
|
FAST
|
|
|
|
Model
|
RT-11509C
|
|
|
|
Control type
|
Manual
|
|
|
|
Gear shift
|
9-forward and 1-reverse speeds
|
|
|
Clutch
|
Type
|
Single plate, diaphragm spring
|
|
|
|
Diameter (mm)
|
D-430
|
|
|
|
Action
|
Mechanical type, hydraulic and pneumatic operation
|
|
|
Brakes
|
Type
|
Drum
|
|
|
|
Service brake
|
With dual-circuit compressed air brake
|
|
|
|
Park brake
|
Power spring brake acting on rear wheel
|
|
|
|
Auxiliary brake
|
WEVB
|
|
|
|
Optional
|
ABS
|
|
|
Steering
|
Type
|
Integral circuiting ball power steering
|
|
|
|
Optional
|
ZF8090
|
|
|
Chassis
|
Type
|
Ladder structure with parallel straight
|
|
|
|
|
300x8x(8+7)
|
|
|
Suspension
|
Front suspension
|
Longitudinal leaf spring
|
|
|
|
Rear suspension
|
Inverted leaf spring stabilizator suspension
|
|
|
Tyres
|
Type(standard)
|
11.00-20
|
|
|
|
Optional
|
12.00R20/11.00R20/12.00-20/12R22.5
|
|
|
Fuel tank
|
Tank capacity (L)
|
380
|
|
|
|
Material
|
Metal
|
|
|
Electrics
|
Type
|
24V
|
|
|
|
Starter
|
5.58kw (24V)
|
|
|
|
Generator
|
1.54kw (28V55A)
|
|
|
|
Battery
|
2x135Ah
|
|
|
Cab
|
Type
|
MAN F2000, Middle Lengthened flat roof
|
|
|
|
Equipemets
|
Hydraulic suspension cab, hydraulic chair with seatbelts,1 sleeping bed…
|
|
|
|
Optional
|
4 point are suspension, A/C, air suspension driver seat with handle and seatbelts, 2 sleeper bed ,Electric windows, electricity
heated…… |
|
|
Engine
|
Brand
|
Weichai
|
|
|
|
Model
|
WP12.375
|
|
|
|
Power (kw/HP)
|
276/375
|
|
|
|
Max. torque (N.m)/rpm
|
1500/1200-1600
|
|
|
|
Displacement (L)
|
11.596
|
|
|
|
Emission standard
|
Euro II
|
|
|
Axles
|
Brand
|
HANDE
|
|
|
|
Front axle
|
7500kg
|
|
|
|
Rear axle
|
13000kg,Double reduction driving axle with inter-wheel differential and differential lock
|
|
|
|
Ratio
|
5.73
|
|
