Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAITE
-
Model Number:
-
GF055
-
Torque:
-
4.5Nm
-
Style:
-
Radio Control Toy
-
Product Name:
-
90mm hub motor
-
Weight:
-
2910g
-
Motor wheel size:
-
90mm*74.5mm
-
Max load:
-
120kg
-
Max Speed:
-
35km/h
-
Motor type:
-
Brushless hub motor
-
Volt:
-
24V/36V
Quick Details
-
Speed(RPM):
-
1800rpm
-
Continuous Current(A):
-
11A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAITE
-
Model Number:
-
GF055
-
Torque:
-
4.5Nm
-
Style:
-
Radio Control Toy
-
Product Name:
-
90mm hub motor
-
Weight:
-
2910g
-
Motor wheel size:
-
90mm*74.5mm
-
Max load:
-
120kg
-
Max Speed:
-
35km/h
-
Motor type:
-
Brushless hub motor
-
Volt:
-
24V/36V
electric skateboard kit brushless hub motor electric wheel hub motor
Brushless motor with hall sensor assemble inside the motor, start soothly, high efficiency
Optimized dual controller and remote control for the hub motors
Front and Rear truck for the motors
Hub motor size: D55*W74.5mm
Wheel size: D90mm*W55mm
Specification:
| GF055 Hub Motor Specification | ||
| Model | GF055 | GF055 |
| Rated Power | 200 | 250 |
| Rated Volt | 24 /36 | 24 /36 |
| Rated Rpm | 1800 | 1950 |
| Rated Current | 11/7.5 | 13.5/9 |
| Rated Torque | 1 | 1.2 |
| Max Power | 400 | 450 |
| Max Torque | 4.5 | 5 |
| Peak Current | 21 /14 | 22 /15 |
| Insulation Grade | E | E |
| Level of Protection | IP33 | IP33 |
| Leadwire length | 200 | 200 |
| Wheel Diameter | 83/90 | 83/90 |
| Wheel material | PU | PU |

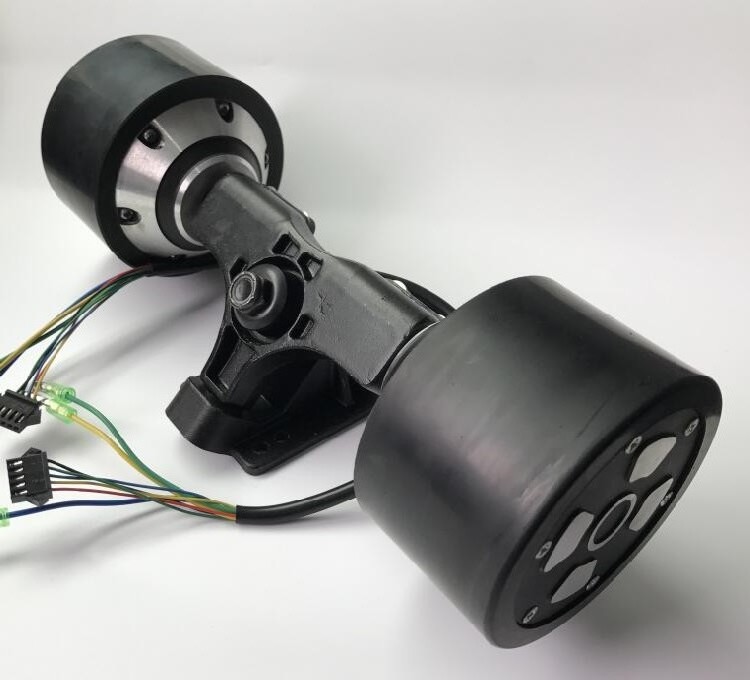

Motor Picture:
Dimension Drawing:
Package Included:
2 x 90mm hub motor
2 x 90mm front wheel
1 x customized rear truck for hub motor
1 x front truck
