Quick Details
-
Brand Name:
-
Navarch
-
Product name:
-

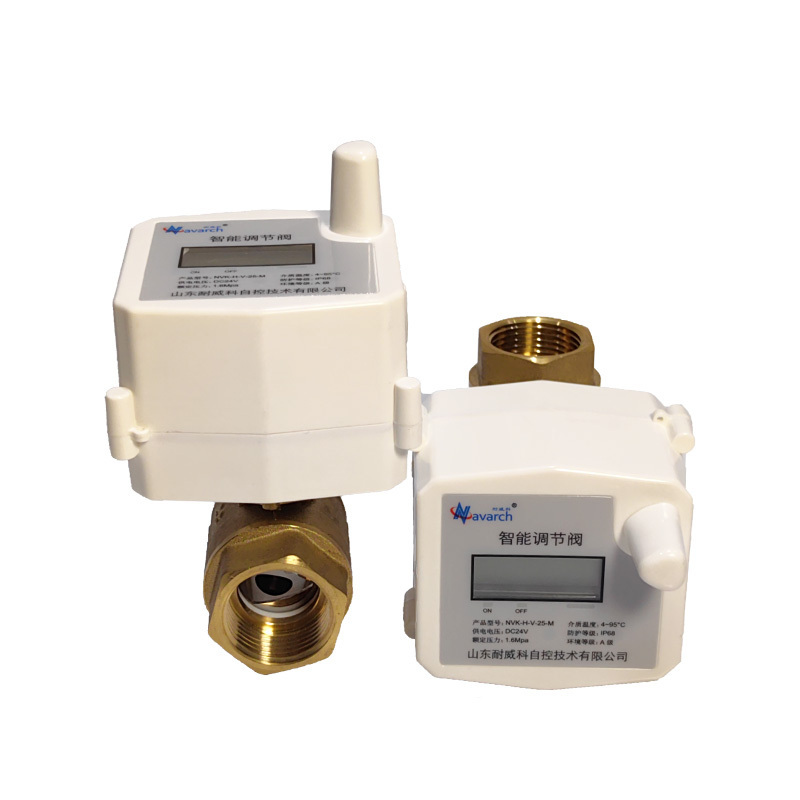

brass ball valve
-
Protection Rate:
-
IP68 IP67 IP54
-
Voltage:
-
DC3.6V battery powered/DC24V
-
Connection:
-
Threaded connection
-
Brand:
-
Navarch
-
Working pressure:
-
1.0-1.6Mpa (10-25bar)
-
Data communication:
-
M-BUS, NB-Iot, Lora,4G
-
Working medium:
-
Water Oil Air
-
Working Temperature:
-
5~80
-
Standard and non-standard:
-
Standard
Quick Details
-
Port Size:
-
DN15-DN32
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Nvk-
-
Brand Name:
-
Navarch
-
Product name:
-
brass ball valve
-
Protection Rate:
-
IP68 IP67 IP54
-
Voltage:
-
DC3.6V battery powered/DC24V
-
Connection:
-
Threaded connection
-
Brand:
-
Navarch
-
Working pressure:
-
1.0-1.6Mpa (10-25bar)
-
Data communication:
-
M-BUS, NB-Iot, Lora,4G
-
Working medium:
-
Water Oil Air
-
Working Temperature:
-
5~80
-
Standard and non-standard:
-
Standard
|
Actuator parameter
|
|
|
|
Waterproof class
|
IP68 IP67 IP54
|
|
|
Power supply
|
DC3.6V lithium battery/DC24V
|
|
|
Communication mode
|
M-BUS, NB-Iot, Lora，4G
|
|
|
Valve power consumption
|
< 1W
|
|
|
Torque
|
4Nm--7Nm
|
|
|
Valve body parameter
|
|
|
|
Body material
|
brass
|
|
|
Spool/valve plate
|
V-shaped stainless steel spool
|
|
|
Specification
|
DN15/DN20/DN25/DN32
|
|
|
Medium
|
cold, hot water and 60% ethylene glycol
|
|
|
Opening adjustment range
|
0~100%
|
|
