Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
oem
-
Supplier Type:
-
wholesale
-
Warranty:
-
one year after shipment
-
cpu:
-
Rockchip PX30 Quad core Cortex A35 1.3GHz 28nm
-
memory:
-
2GB + 16GB DDR3+eMMC
-
Cellular:
-
4G LTE Cat1
-
wifi:
-
802.11 a/b/g/n/ac 5GHz
-
usb:
-
USB Type-C, USB 2.0
-
Features 1:
-
Z-WAVE
-
Features 2:
-
zigbee 3.0
-
os:
-
linux or android
-
color:
-
white or black
Quick Details
-
Chipset:
-
rockchip
-
Application:
-
smart home
-
Model Number:
-
SH1-2
-
Place of Origin:
-
China
-
Brand Name:
-
oem
-
Supplier Type:
-
wholesale
-
Warranty:
-
one year after shipment
-
cpu:
-
Rockchip PX30 Quad core Cortex A35 1.3GHz 28nm
-
memory:
-
2GB + 16GB DDR3+eMMC
-
Cellular:
-
4G LTE Cat1
-
wifi:
-
802.11 a/b/g/n/ac 5GHz
-
usb:
-
USB Type-C, USB 2.0
-
Features 1:
-
Z-WAVE
-
Features 2:
-
zigbee 3.0
-
os:
-
linux or android
-
color:
-
white or black
Product Description

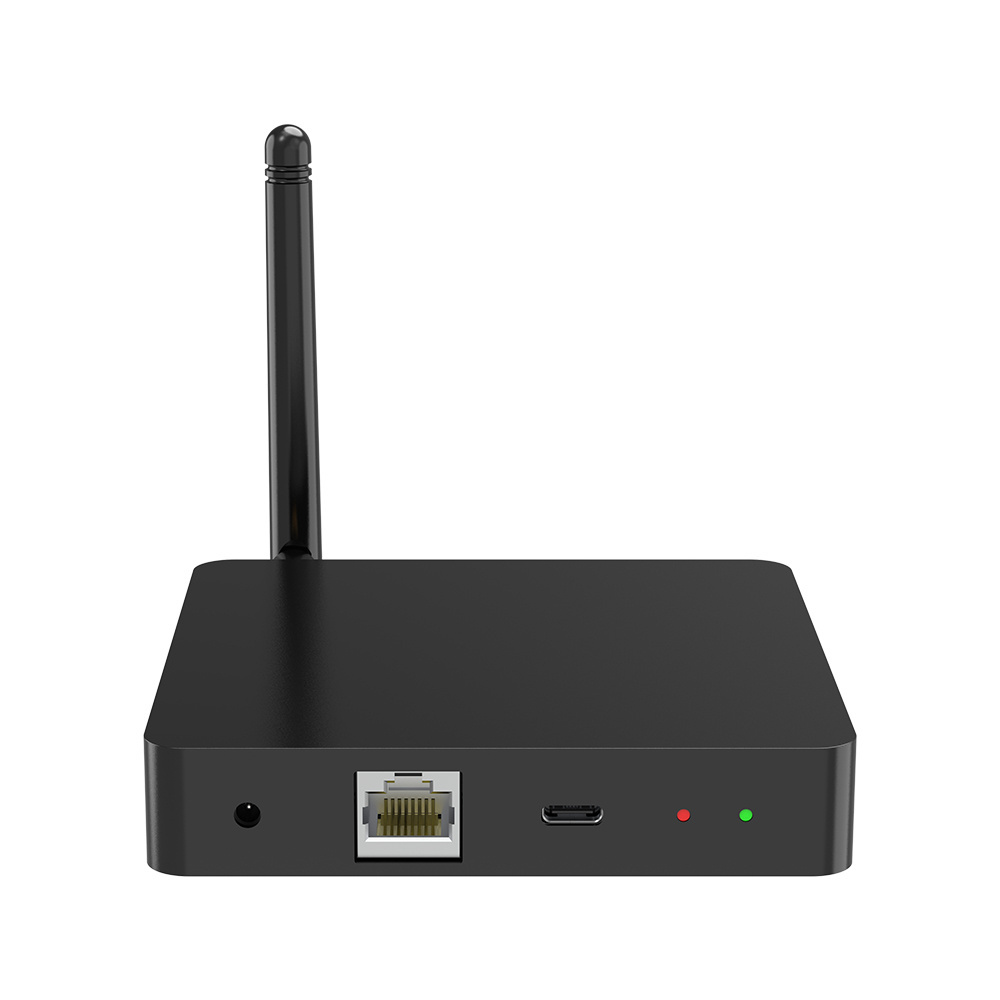

Tablet smart iot smart home OEM custom made Z wave Linux Hub Zigbee Tuya Smart Gateway Hub
SmartHome Hub / Z-Wave Hub / Zigbee Hub / Smart Gateway
· Zigbee 3.0;
· Z-wave 500, Z-wave 700, Z-wave 800;
· 5G Dual Band WiFi 802.11 ac/b/g/n;
· Bluetooth Ble 5.0;
· Bi-color LED (blue/green/red);
· Android/Linux;
· Interface: RJ45, POE, DC-IN, Type C;
· Zigbee 3.0;
· Z-wave 500, Z-wave 700, Z-wave 800;
· 5G Dual Band WiFi 802.11 ac/b/g/n;
· Bluetooth Ble 5.0;
· Bi-color LED (blue/green/red);
· Android/Linux;
· Interface: RJ45, POE, DC-IN, Type C;
Pretech offers one-stop solutions for certain customers who have specific needs which can't be satisfied by existing device on the
market.
ID → Schematic → MD → Layout → OS Debugging(Android/Linux) → Tooling → EVT → MVT → Mass Production
market.
ID → Schematic → MD → Layout → OS Debugging(Android/Linux) → Tooling → EVT → MVT → Mass Production
|
SPECIFICATION
|
|
|
||
|
TYPE
|
DETAILS
|
DESCRIPTIONS
|
||
|
DIMENSIONS AND WEIGHT
|
Product size
|
156 x 156 x 50 mm
|
||
|
|
Product weight
|
106g
|
||
|
|
Color
|
Black/White
|
||
|
|
Material
|
Plastic
|
||
|
|
Finish
|
MP
|
||
|
OPERATING SYSTEM
|
OS
|
Linux
|
||
|
PROCESSOR
|
CPU
|
Rockchip PX30 Quad core Cortex A35 1.3GHz 28nm
|
||
|
|
GPU
|
Mali-G31MP2
|
||
|
MEMORY
|
Capacity
|
2GB + 16GB DDR3+eMMC
|
||
|
|
Max. expansion supported
|
128GB
|
||
|
|
RAM type
|
DDR3
|
||
|
DISPLAY
|
Screen size ( inches)
|
N/A
|
||
|
|
Display panel type
|
N/A
|
||
|
|
Brightness
|
N/A
|
||
|
|
Screen resolution
|
N/A
|
||
|
|
Multitouch
|
N/A
|
||
|
CAMERA
|
Rear camera
|
N/A
|
||
|
|
Front camera
|
N/A
|
||
|
CONNECTIVITY
|
Cellular
|
4G LTE Cat1
|
||
|
|
Band details
|
4G LTE: B2, B4, B5, B12, B25, B26, B66
|
||
|
|
|
3G:N/A
|
||
|
|
|
2G:N/A
|
||
|
|
SIM card type
|
Micro SIM
|
||
|
|
SIM card quantity
|
1
|
||
|
|
WLAN
|
802.11 a/b/g/n/ac 5GHz
|
||
|
|
Bluetooth
|
BT 5.0
|
||
|
|
FM radio tuner
|
N/A
|
||
|
|
USB
|
USB Type-C, USB 2.0
|
||
|
|
OTG
|
N/A
|
||
|
|
NFC
|
N/A
|
||
|
|
Headphone jack
|
N/A
|
||
|
FEATURES
|
SUMMARY: Z-wave,Zigbee, 4G
|
|
||
|
|
Features 1
|
Z-WAVE
|
||
|
|
Features 2
|
Zigbee3.0
|
||
|
POWER SUPPLY
|
Battery capacity
|
N/A
|
||
|
|
Charging port
|
DC
|
||
|
|
Recharging current
|
5V 2A
|
||
|
|
Wireless charging
|
N/A
|
||
Specification
|
Spec
|
|
|
|
CPU
|
MT8788 4*Cortex A73 2.3GHz+4*Cortex A53 1.8GHz octa core
|
|
|
LCM
|
6.26” HD+ 720*1520 IPS
|
|
|
TP
|
G+FF, full lamination
|
|
|
RAM
|
6GB
|
|
|
ROM
|
64GB
|
|
|
Camera
|
8MP FF +16MP/0.3MP
|
|
|
WiFi
|
802.11 ac/b/g/n 2.4G+5G
|
|
|
BT
|
BT5.0
|
|
|
Battery
|
5000mAh
|
|
|
bands
|
4G B3(1800MHz), B7(2600MHz), B20(800MHz)
3G B1 (2100MHz) 2G 900MHz, 1800MHz |
|
|
Charging
|
PD fast charge
|
|
|
RECEIVER
|
YES
|
|
|
Motor
|
YES
|
|
|
Microphone
|
YES
|
|
|
Speaker
|
YES
|
|
|
GPS
|
YES
|
|
|
AGPS
|
YES
|
|
|
FM
|
NO
|
|
|
L sensor P sensor
|
YES
|
|
|
G sensor
|
YES
|
|
|
Compass
|
YES
|
|
|
Gyroscope
|
YES
|
|
|
Buttons
|
Volume + /-
|
|
|
|
power key
|
|
|
|
SOS
|
|
|
|
Physical buttons (slide key on the side)Kill switch: hardware kill switches to physically disconnect WiFi, Bluetooth, cellular
signal, microphone & camera. |
|
|
3.5mm jack
|
YES
|
|
|
usb ports
|
two USB type c
|
|
|
SIM slot
|
YES
|
|
|
TF slot
|
YES
|
|
|
SD card slot
|
NO
|
|
|
Indicator
|
YES
|
|
|
Fingerprint
|
YES
|
|
|
OS
|
Android 11/12/13 source code SDK available
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our service
OEM Services:
* Print Logo on Back Case(Plastic/Metal), Touch Panel(with MOQ 5000PCS) and Accessories(Gift box/User manual/Warranty card/Charger/Leather case) etc
* Support free Artworks customization
* Support free Software customization(Including Start screen/Wallpaper/System information/Pre-install Apps etc)
After-sale Service:
* 1year warranty for all products(Exclude accessories), any terminals with quality issue(Exclude human factors) can get repaired or replacement from us
* If clients handle the service locally, we will provide recommendations for clients to purchase some Spare parts(PCBA/LCD/Touch panel/Battery etc)
* For the product assembling and repairing, we will provide video. If necessary, we will send technical staff to train
* Technical assistance for whole life
* Print Logo on Back Case(Plastic/Metal), Touch Panel(with MOQ 5000PCS) and Accessories(Gift box/User manual/Warranty card/Charger/Leather case) etc
* Support free Artworks customization
* Support free Software customization(Including Start screen/Wallpaper/System information/Pre-install Apps etc)
After-sale Service:
* 1year warranty for all products(Exclude accessories), any terminals with quality issue(Exclude human factors) can get repaired or replacement from us
* If clients handle the service locally, we will provide recommendations for clients to purchase some Spare parts(PCBA/LCD/Touch panel/Battery etc)
* For the product assembling and repairing, we will provide video. If necessary, we will send technical staff to train
* Technical assistance for whole life
Why Choose Us
* Over 10 years professional OEM manufacture experience.
* Competition price from directly factory.
* Products 100% QC checking before shipping.
* Own creative design team with strong R&D ability.
* Excellent reputation in industry.
* Golden after-sale services.
* One year warranty period.
* Competition price from directly factory.
* Products 100% QC checking before shipping.
* Own creative design team with strong R&D ability.
* Excellent reputation in industry.
* Golden after-sale services.
* One year warranty period.
