Quick Details
-
Power:
-
220, 2.5Kw/AC220V.50Hz
-
Weight:
-
68 KG
-
Product name:
-
Autoclave Steam Sterilizer
-
working pressure:
-
0.22MPa
-
Working temperature:
-
134℃
-
Max working pressure:
-
0.23 Mpa
-
Transport dimension:
-
570x550x1150(mm)
-
Application:
-
High Temperature Sterilization Retort
-
Function:
-
High Temperature High Pressure Sterilizing
-
Feature:
-
99.9% Sterilization Rate
-
Material:
-
Stainless Steel
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Labsnova
-
Voltage:
-
220
-
Power:
-
220, 2.5Kw/AC220V.50Hz
-
Weight:
-
68 KG
-
Product name:
-
Autoclave Steam Sterilizer
-
working pressure:
-
0.22MPa
-
Working temperature:
-
134℃
-
Max working pressure:
-
0.23 Mpa
-
Transport dimension:
-
570x550x1150(mm)
-
Application:
-
High Temperature Sterilization Retort
-
Function:
-
High Temperature High Pressure Sterilizing
-
Feature:
-
99.9% Sterilization Rate
-
Material:
-
Stainless Steel
Products Description

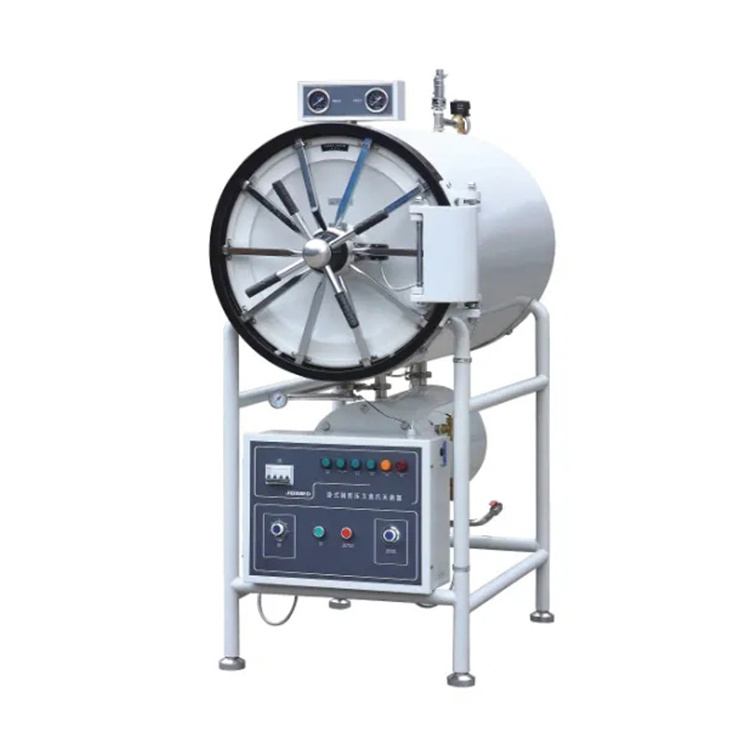

This horizontal pressure sterilizer adopts the gravity displacement method to remove the cold air in the inner chamber, so that the cold air content of the steam in the inner chamber is less, and the sterilization is more reliable. At the same time, during the sterilization process of the equipment, the control system automatically adjusts the steam intake and exhaust steam according to the temperature of the inner room. It is mainly used in hospital supply rooms, operating rooms, pharmaceutical factories and scientific research laboratories and other units to sterilize medical and experimental cloth items, surgical instruments and utensils.
Product Features
1. Sterilizing course automatic sterilization controlled,easy to operate.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.
8.150L,200L,280L optional.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.
8.150L,200L,280L optional.
Product Paramenters
|
Model
|
WS-
90YDA |
WS-
150YDA |
WS-
200YDA |
WS-
280YDA |
WS-
400YDA |
WS-
500YDA |
|||||
|
Chamber volume
|
90L
|
150L
|
200L
|
280L
|
400L
|
500L
|
|||||
|
working pressure
|
0.22MPa
|
|
|
|
|
|
|||||
|
Working temperature
|
134℃
|
|
|
|
|
|
|||||
|
Adjustment of temperature
|
105℃ - 134℃
|
|
|
|
|
|
|||||
|
Time of sterilization
|
0-60 min
|
|
|
|
|
|
|||||
|
Time of drying
|
0-60 min
|
|
|
|
|
|
|||||
|
Heat average
|
≤±1℃
|
|
|
|
|
|
|||||
|
Power
|
9KW/380V
50Hz |
9KW/380V
50Hz |
9KW/380V
50Hz |
12KW/380V
50Hz |
18KW/380V
50Hz |
18KW/380V
50Hz |
|||||
|
Overall dimension
|
1100×600×
1300 |
1400×600×
1300 |
1400×670×
1650 |
1400×770×
1780 |
1430×880×
1830 |
1800×900×
1820 |
|||||
|
Transport dimension
|
1250×750×
1850 |
1550×750×
1850 |
1560×820×
1850 |
1680×920×
2100 |
1800×1050×
2100 |
1850×1050×
2100 |
|||||
|
G.W/N.W
|
270/200 KG
|
320/240 KG
|
350/260 KG
|
465/365 KG
|
530/520 KG
|
580/470 KG
|
|||||
Details Images
