Quick Details
-
Color:
-
FULL COLOR
-
Panel Size:
-
500*500mm, 500*500mm
-
Place of Origin:
-
Henan, China
-
Model Number:
-
RX390
-
Product name:
-
3M2 4M2 Meter Square Schermo 3X2 2X3 Pantallad Led
-
Usage:
-

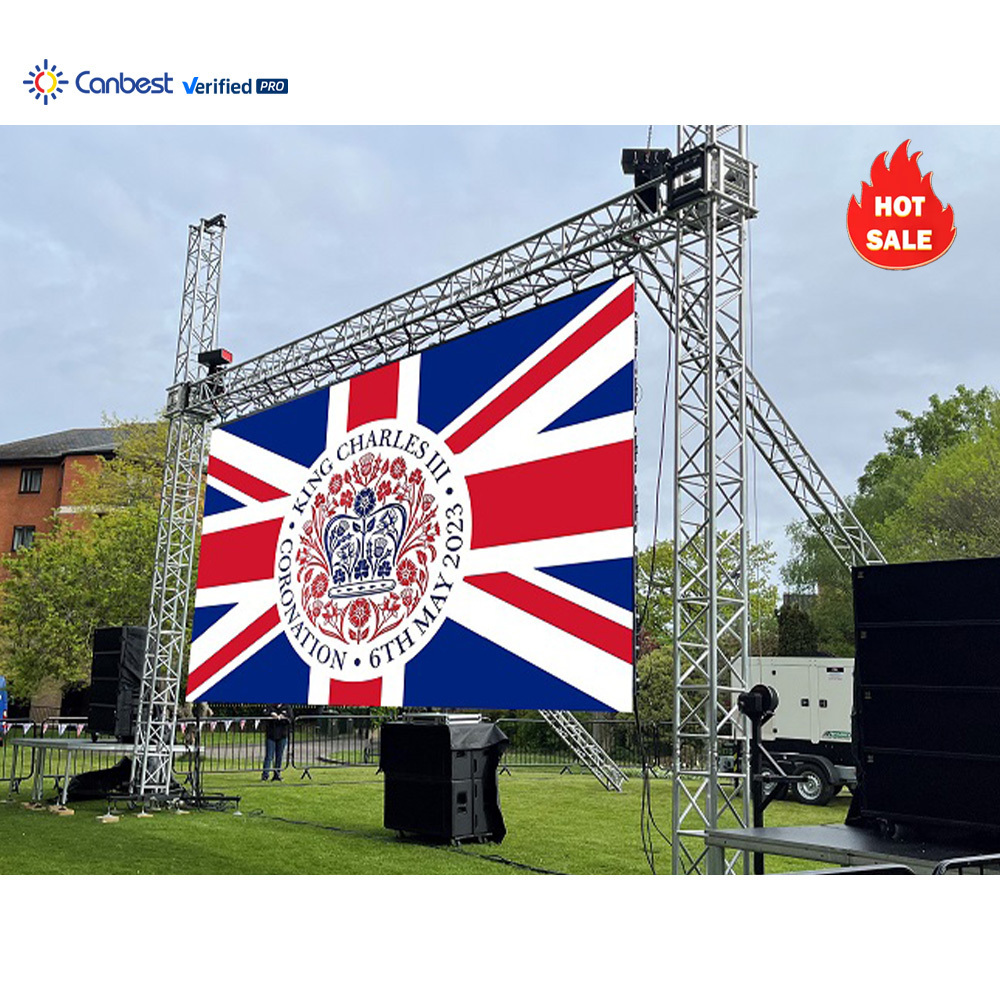

Outdoor Rental LED Display
-
Warranty:
-
5 Years
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Life span:
-
100000hours
-
Refresh rate:
-
3840Hz
-
Cabinet material:
-
Die Casting Alunimum, Magnesium Alloy
-
Keyword:
-
All in one solution for outdoor events
-
Cabinet size:
-
Customized
Quick Details
-
Application:
-
OUTDOOR
-
Type:
-
LED
-
Brand Name:
-
Canbest
-
Color:
-
FULL COLOR
-
Panel Size:
-
500*500mm, 500*500mm
-
Place of Origin:
-
Henan, China
-
Model Number:
-
RX390
-
Product name:
-
3M2 4M2 Meter Square Schermo 3X2 2X3 Pantallad Led
-
Usage:
-
Outdoor Rental LED Display
-
Warranty:
-
5 Years
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Life span:
-
100000hours
-
Refresh rate:
-
3840Hz
-
Cabinet material:
-
Die Casting Alunimum, Magnesium Alloy
-
Keyword:
-
All in one solution for outdoor events
-
Cabinet size:
-
Customized
Warranty
Technical Parameter
|
Items
|
|
RX260
|
RX290
|
RX390
|
RX480
|
|
|
Physical Parameter
|
LED Configuration
|
SMD1516
|
SMD1516
|
SMD1921
|
SMD2525
|
|
|
|
Pixel Pitch（ mm）
|
2.604mm
|
2.97mm
|
3.9mm
|
4.8mm
|
|
|
|
Cabinet resolution(dots)
|
192x192
|
168x168
|
128x128
|
104x104
|
|
|
|
Cabinet Density（ dots /m²）
|
147474
|
113367
|
65536
|
43222
|
|
|
|
Module Size（L x W x H）/( mm)
|
250mmx250mm
|
250mmx250mm
|
250mmx250mm
|
250mmx250mm
|
|
|
|
Cabinet Size（L x W x L）/( mm)
|
500x500x87mm
|
500x500x87mm
|
500x500x87mm
|
500x500x87mm
|
|
|
|
Cabinet Material
|
Die-casting aluminum
|
Die-casting aluminum
|
Die-casting aluminum
|
Die-casting aluminum
|
|
|
|
Cabinet Weight ( Per Panel/ kg)
|
7.5Kg
|
7.5Kg
|
7.5Kg
|
7.5Kg
|
|
|
Optical Parameters
|
Color Depth(Bit)
|
16
|
16
|
16
|
16
|
|
|
|
Gray Scale
|
65536
|
65536
|
65536
|
65536
|
|
|
|
Refresh Rate（ Hz）
|
65536
|
65536
|
≥3840
|
≥3840
|
|
|
|
Driving Mode
|
1/24
|
1/21
|
1/16
|
1/13
|
|
|
|
Brightness（ nit）
|
≥4000
|
≥4000
|
≥4000
|
≥4000
|
|
|
|
Viewing Angle（ H/V°）
|
140/120°
|
140/120°
|
140/120°
|
140/120°
|
|
|
Electrical
Parameters |
Input Voltage（ V）
|
AC110V/AC220V±10%
|
AC110V/AC220V±10%
|
AC110V/AC220V±10%
|
AC110V/AC220V±10%
|
|
|
|
Input Frequency（ Hz）
|
60
|
60
|
60
|
60
|
|
|
|
Power Consumption Max.( W/m²）
|
800
|
800
|
800
|
800
|
|
|
|
Power Consumption Ave.（ W/m²）
|
268
|
268
|
268
|
268
|
|
|
Operation Conditions
|
Storage Temperature （ ℃）
|
-15 ~ 50
|
-15 ~ 50
|
-15 ~ 50
|
-15 ~ 50
|
|
|
|
Working Temperature（ ℃）
|
-10 ~ 40
|
-10 ~ 40
|
-10 ~ 40
|
-10 ~ 40
|
|
|
|
Storage Humidity（ RH）
|
10%~90%
|
10%~90%
|
10%~90%
|
10%~90%
|
|
|
|
Protection Level
|
IP65
|
IP65
|
IP65
|
IP65
|
|
|
|
Installation Type
|
Hanging / Stacking
|
Hanging / Stacking
|
Hanging / Stacking
|
Hanging / Stacking
|
|
|
|
Maintenance Type
|
Front and Rear
|
Front and Rear
|
Front and Rear
|
Front and Rear
|
|
