Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINYA
-
Rated Load:
-
5- 80 KN
-
Weight:
-
1.2 - 6.75KG
-
Application:
-
lifting for Rope Pulley Blocks
-
For:
-
lifting pulley
-
Item:
-
Hook Type Heavy Duty Wire Rope Snatch Pulley Block
-
TYPE:
-
Pulley Block
-
Selling Point:
-
wire rope pulley
-
Certification:
-
ISO9001:2008
-
Product name:
-
Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Construction works
-
Type:
-
Flat Belt
-
Material:
-
ALLOY
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINYA
-
Rated Load:
-
5- 80 KN
-
Weight:
-
1.2 - 6.75KG
-
Application:
-
lifting for Rope Pulley Blocks
-
For:
-
lifting pulley
-
Item:
-
Hook Type Heavy Duty Wire Rope Snatch Pulley Block
-
TYPE:
-
Pulley Block
-
Selling Point:
-
wire rope pulley
-
Certification:
-
ISO9001:2008
-
Product name:
-
Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting

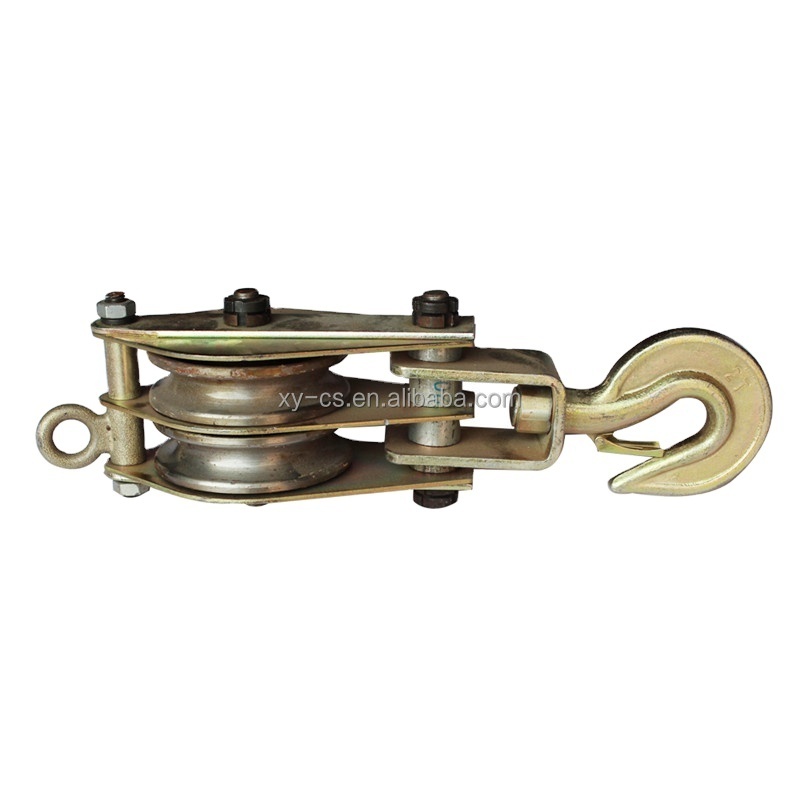

Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting
Application
It is used for lifting and sagging operation in transmission line construction. It is used for pole and tower erection, line construction, equipment hoisting and other lifting applications.
The sheave is made of high strength qualified steel, the sheave is mounted on ball bearings. The frame of pulley blocks is galvanized. All the blocks have been tested before ex-works.
The single sheave pulley block can be designed as side open type and side closed type.
Note: Please specify the fitting styles (hook, eye, clevis) when ordering.
Characteristics
1.Material: Aluminum alloy
2.Single wheel opening hook type.Two or three sheaves are closed.
3.It is light weight using the aluminum alloy.
Technical Data
|
Order number |
Model |
Number of sheaves |
Rated load (kN) |
Outside diameter×width(mm) |
Weight (kg) |
Hoisting point type |
||
|
11101 |
QH1GN-1K |
1 |
10 |
Φ100×31 |
1.8 |
G |
H |
|
|
11102 |
QHN1-2 |
2 |
10 |
Φ80×27 |
1.8 |
G |
H |
|
|
11103 |
QHN1-3 |
3 |
10 |
Φ80×27 |
2.1 |
G |
H |
|
|
11111 |
QHN2-1K |
1 |
20 |
Φ120×35 |
2.2 |
G |
H |
B |
|
11112 |
QHN2-2 |
2 |
20 |
Φ100×31 |
2.6 |
G |
H |
|
|
11113 |
QHN2-3 |
3 |
20 |
Φ100×31 |
3.7 |
G |
H |
|
|
11121 |
QHN3-1 |
1 |
30 |
Φ150×39 |
3.4 |
G |
H |
B |
|
11122 |
QHN3-2 |
2 |
30 |
Φ120×35 |
4.5 |
G |
H |
|
|
11123 |
QHN3-3 |
3 |
30 |
Φ100×31 |
4.6 |
G |
H |
|
|
11131 |
QHN5-1K |
1 |
50 |
Φ166×40 |
5.2 |
G |
H |
B |
|
11133 |
QHN5-2 |
2 |
50 |
Φ150×39 |
5.5 |
G |
H |
|
|
11134 |
QHN5-3 |
3 |
50 |
Φ120×35 |
5.1 |
G |
H |
|
|
11141 |
QHN8-1K |
1 |
80 |
Φ205×49 |
7.2 |
G |
H |
B |
|
11142 |
QHN8-2 |
2 |
80 |
Φ166×40 |
8.3 |
G |
H |
|
|
11143 |
QHN8-3 |
3 |
80 |
Φ150×39 |
7.9 |
G |
H |
|
|
11151 |
QHN10-1K |
1 |
100 |
Φ246×60 |
11.4 |
G |
|
B |
|
11152 |
QHN10-2 |
2 |
100 |
Φ166×40 |
10.2 |
|
H |
|
|
11153 |
QHN10-3 |
3 |
100 |
Φ150×39 |
11.7 |
|
H |
|
|
11161 |
QHN15-1K |
1 |
150 |
Φ280×65 |
12.1 |
|
|
B |
|
11162 |
QHN15-2 |
2 |
150 |
Φ205×49 |
12.8 |
|
H |
|
|
11163 |
QHN15-3 |
3 |
150 |
Φ166×40 |
11.8 |
|
H |
|
|
11164 |
QHN15-4 |
4 |
150 |
Φ150×39 |
13.9 |
|
H |
|
·uses :applied in line construction to craning weight ,etc.
·Features: to adopt aluminum alloy side panel and MC nylon sheave .so it is light .monosheave block is open.
