Quick Details
-
Product name:
-

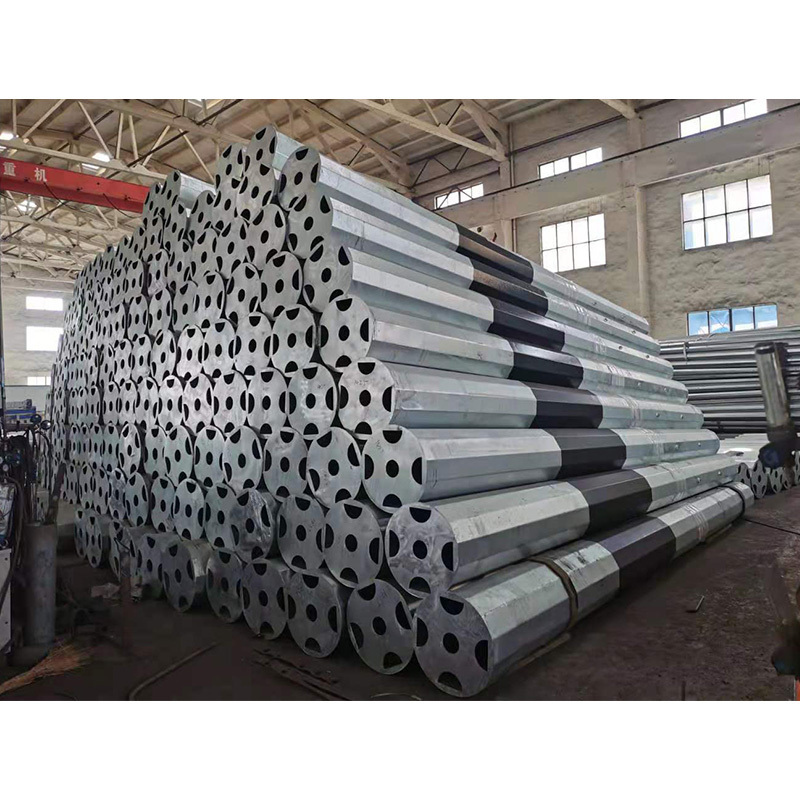

Galvanized Steel Pole Electric Power Transmission Pole
-
Type:
-
steel pole
-
Material:
-
Hot Roll Steel Q345
-
Application:
-
Electric Power Supplying
-
Certificate:
-
ISO9001:2008
-
Shape:
-
Octagonal,polygonal or according to client's request.
-
Rated Voltage:
-
69-220KV
-
Surface treatment:
-
Hot Dip Galvanizing Antirust
-
Wall Thickness:
-
2.5mm-30mmfor steel power pole
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HongXin
-
Model Number:
-
HX-PP-038
-
Product name:
-
Galvanized Steel Pole Electric Power Transmission Pole
-
Type:
-
steel pole
-
Material:
-
Hot Roll Steel Q345
-
Application:
-
Electric Power Supplying
-
Certificate:
-
ISO9001:2008
-
Shape:
-
Octagonal,polygonal or according to client's request.
-
Rated Voltage:
-
69-220KV
-
Surface treatment:
-
Hot Dip Galvanizing Antirust
-
Wall Thickness:
-
2.5mm-30mmfor steel power pole
Product Description
|
Type
|
Straight Pole ,Tensile Pole ,Turn Pole
|
|
Suit for
|
Power pole for electricity transmission line
|
|
Shape
|
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
|
|
Tolerance of dimension
|
+- 2%
|
|
Power
|
35 KV ~550 KV
|
|
Safety Factor
|
Safety factor for conducting wine : 8
Safety factor for grounding wine : 8 |
|
Quality materials
|
Usually Q345B/A572, minimum yield strength>=345n/mm2
Q235B/A36, minimum yield strength>=235n/mm2 |
|
Design Load in Kg
|
300~ 1000 Kg appliced to 50cm from the to pole
|
|
Marks
|
Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
|
|
Joint of Poles
|
Insert mode, inner flange mode, face to face joint mode
|
|
Design of pole
|
Against earthquake of 8 grade
|
|
Wind Speed
|
160 Km/Hour
|
|
Minimum yield strength
|
355 mpa
|
|
Minimum ultimate tensile strength
|
490 mpa
|
|
Max ultimate tensile strength
|
620 mpa
|
|
Standard
|
ISO 9001
|
|
Length of per section
|
Within 14m once forming without slip joint.
|
|
Thickness
|
2.5mm to 30mm
|
Production process
Step 1
Material
Step 2
Cutting
Step 3
Cutting Material With Size
Step 4
Bending
Step 5
Cutting Flange
Step 6
Cutting Pipe
Step 7
Welding
Step 8
Assembling
Step 9
Welding By Hand
Step 10
Polishing
Step 11
Galvanization
Step 12
Post -Processing
Product Inspection
Detailed Images
1、Surface treatment
2、Welding
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
2、Welding
Welding flaw testing.Internal and external double welding makes the welding good
Welding Standard :AWS ( American Welding Society ) D 1.1
Welding Standard :AWS ( American Welding Society ) D 1.1
Company Introduction
Yixing Hongxin Lighting Equipment Co., Ltd. is located in Wanshi Town, adjacent to the beautiful Taihu Lake, convenient transportation.
Our main products are: street light pole, power pole, traffic signal pole, solar light pole, steel pole, high mast lamp pole and so on.
We take customer requirements as our development direction. It is our responsibility to provide quality service to your customers. The factory covers an area of 15,000 square meters. With professional equipment, advanced technology, strong capital and perfect management, we can not only produce the existing products on the market, but also carry out new designs according to customer requirements. We firmly believe that "science and technology is the first productive force". In the new product development, energy conservation, new energy, green lighting product quality and other aspects of long-term cooperation with a number of scientific research institutes, has achieved fruitful results.
Packing&Shipping
FAQ
Q1:How can I get the price of needed pole?
A:1.Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can give you a similar price according to your specification.
2.You can give a drawing.We can give you the price according to your drawing.
Q2:I am a small wholesaler, do you accept small order?
A:It's no problem if you are a small wholesaler,we would like to grow up with you together.
Q3:I am a designer, can you help me to produce the sample which I designed?
A:Our mission is to help customers to be successful.So it's welcome if we can help you solve problem and make your design come true.
Q4:Tell me about your company?
A: Yixing Hongxin Lighting Equipment Co., Ltd. ,we have been a manufacturer and exporter of all kinds of steel poles,including street lighting pole,solar energy light pole,mid-hinged light pole,high mast pole and other steel products.
Q5:Do you have some special policies for Brand company?
A:Yes,we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market.
Q6:Can you make Door to Door service? Because I don't know how to do customs clearance.
A:Yes.We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time and money.
