Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EZONEDE
-
Theory:
-
Flameproof Adjustable Current
-
Output:
-
0.2-30A, 40-400Hz
-
Description:
-
Flameproof Adjustable AC Current Sensing Switch
-
Product Name:
-
Flameproof Adjustable AC Current Sensing Switch
-
Condition:
-
100% brand new
-
Switch Type:
-
Normally Open/Normally Closed(Optional)
-
Power Supply:
-
Self-Powered
-
Starting Current / Frequency Range:
-
0.2-30A, 40-400Hz
-
Startup Time:
-
<0.1 Seconds
-
Switch Contact Capacity:
-
Maximum: 0.5A 12-240VAC/DC
-
Overload Capacity:
-
+100% 30A
-
Threading Hole Diameter:
-
9mm
-
Indicator Light:
-
Red and Green
Quick Details
-
Usage:
-
Hall Effect
-
Model Number:
-
ET2343
-
Type:
-
Current Sensing Switch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EZONEDE
-
Theory:
-
Flameproof Adjustable Current
-
Output:
-
0.2-30A, 40-400Hz
-
Description:
-
Flameproof Adjustable AC Current Sensing Switch
-
Product Name:
-
Flameproof Adjustable AC Current Sensing Switch
-
Condition:
-
100% brand new
-
Switch Type:
-
Normally Open/Normally Closed(Optional)
-
Power Supply:
-
Self-Powered
-
Starting Current / Frequency Range:
-
0.2-30A, 40-400Hz
-
Startup Time:
-
<0.1 Seconds
-
Switch Contact Capacity:
-
Maximum: 0.5A 12-240VAC/DC
-
Overload Capacity:
-
+100% 30A
-
Threading Hole Diameter:
-
9mm
-
Indicator Light:
-
Red and Green

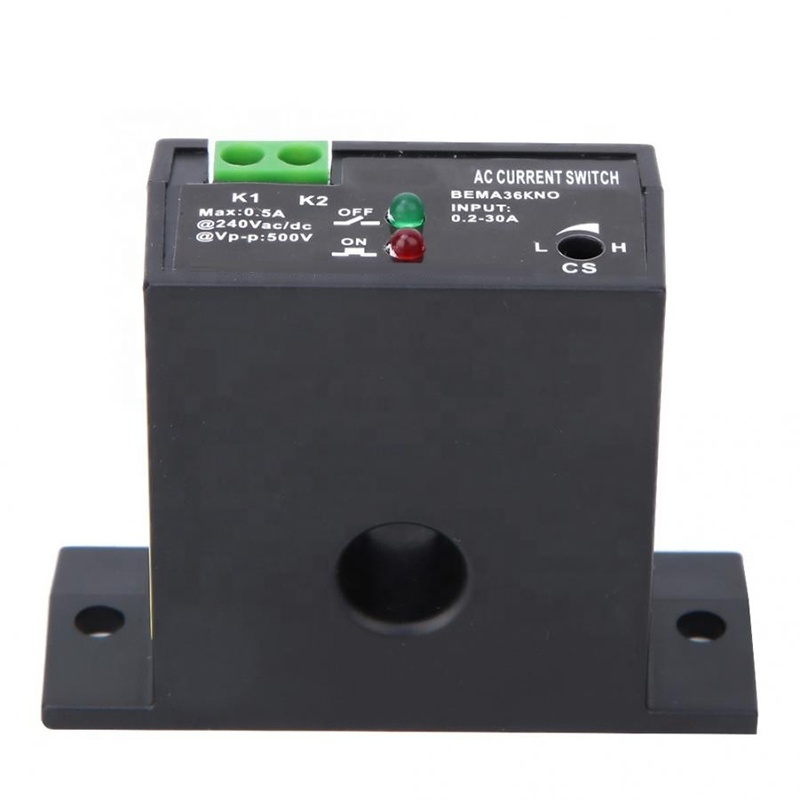

New Flameproof Adjustable AC Current Sensing Switch 0.2-30A Self-Powered Sensing Switch Rocker Switch
Features:
Control of various automatic industrial control equipment, flash, buzzer, relay, single chip, or other power load equipment.
Widely used in substation, frequency control device, inverter device, electrolytic plating, electric locomotive, street lamp monitoring, coal mine and other need current monitoring automation industry.
Compared with traditional transformer and thermal protector, it has the advantages of high accuracy, stable performance and long service life.
Using the electromagnetic mutual inductance principle of current, the advanced switch output detection, monitoring and protection alarm type products without power supply technology are adopted.
An ideal choice for automatic industrial control equipment and electric power monitoring.
The current-sensing switch is for safe, convenient monitoring or detecting the current of electric equipment.
Specification:
Switch Type:Normally Open/Normally Closed(Optional, when you place the order, please choose)
Power Supply:Self-Powered,No External Power Supply is Required.
Starting Current / Frequency Range: 0.2-30A, 40-400Hz
Startup Time: <0.1 Seconds
Switch Contact Capacity: Maximum: 0.5A 12-240VAC/DC
Overload Capacity: +100% 30A
Threading Hole Diameter: 9mm
Indicator Light: Red and Green
Installation Form: Flat Installation
Shell Material: Fireproof ABS
Working Temperature: -20~55 °C
Working Humidity: 0-90%, No Condensation
IP Rating: IP30
Size:46 x 65 x 25mm / 1.81 x 2.56 x 0.98in
Package List:
1 x Sensing Switch
Packing Condition:
All goods are packed in bags or small boxes, then put into safety export standard carton box, well packed with Bubble.
Shipping Ways:
By express, air shipping or sea shipping methold.
Shipping Freight Saving Methold:
There are many different items in our stock, customers can by the insterested products in the list of one order, we will combine the products in one shipment, to save the shipping cost.
Buy more, save more!
Shipping Time:
1. We will arrange shipemnt i n 1 to 5 work ing days after the payment confirm ed .
2. Shipment will by DHL/Fedex/UPS/TNT/EMS/Aramex/SF-express etc. Please confirm the shipping methold when placing new order.
3. After shipping, we will send the tracking number immediately for tracking the shipment .
