Quick Details
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
2900 - 4500 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
wanling
-
Voltage:
-
380V/220V/upon
-
Dimension(L*W*H):
-
ACCORDING TO MODEL
-
Weight (KG):
-
500 KG
-
Marketing Type:
-
Available
-
Product Name:
-
icing sugar salt grinder
-
Keywords:
-
sugar turmeric leaf herb salt crushing crusher machine
-
Color:
-
Customer's Request
-
Suit for:
-
sugar turmeric leaf herb salt pulverizer grinder
-
Certificate:
-
CE ISO
-
Package:
-
Wooden case
Quick Details
-
Output (kg/h):
-
20 - 500 kg/h
-
Feeding Size (mm):
-
2 - 15 mm
-
Output Size (mesh):
-
20 - 120 mesh
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
2900 - 4500 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
wanling
-
Voltage:
-
380V/220V/upon
-
Dimension(L*W*H):
-
ACCORDING TO MODEL
-
Weight (KG):
-
500 KG
-
Marketing Type:
-
Available
-
Product Name:
-
icing sugar salt grinder
-
Keywords:
-
sugar turmeric leaf herb salt crushing crusher machine
-
Color:
-
Customer's Request
-
Suit for:
-
sugar turmeric leaf herb salt pulverizer grinder
-
Certificate:
-
CE ISO
-
Package:
-
Wooden case
WLC high capacity automatic icing sugar salt grinder rice flour grinding pin mill machine
Application
This machine is mainly used in chemical industry, medicine (TCM), food, spices, resin powder, besmear powder etc, sex material and high temperature resistant material, crushing and dust collection as a whole is a new generation crushing equipment.
Main Feature
1. This machine can match the turbine blade, it is also can match other different blade (if consumer need, we can design. so the consumer can change different blade to use)
2. This machine has water cooling system.
3. This machine can add the magnetic, to remove the Metal impurity (as consumer requirement)
4. This machine can match the general dust absorption system, it also can match the pulse dust absorption system
price need discuss again,machine is all customized
Technical Parameiers
|
Model |
Capacity (kg) |
Feed size (mm) |
Output size (mesh) |
Total power (kw) |
Main speed(r/min) |
Dimension ( mm) |
Weight (kg) |
|
WLC-30 |
50-300 |
<10 |
12-120 |
11.75 |
~3800 |
6000* 1200*2900 |
700 |
|
WLC-40 |
80-400 |
<12 |
13.75 |
~3400 |
6300* 1300*2900 |
1000 |
|
|
WLC-50 |
100-500 |
<12 |
17.25 |
~2900 |
7000* 1500*2900 |
1200 |
|
|
WLC-60 |
300-600 |
<15 |
3 3.75 |
~2400 |
7500* 1500*3650 |
1500 |
|
|
WLC-80 |
400-1000 |
<15 |
60.1 |
~2200 |
8400* 2500*4850 |
2000 |
|
|
WLC-100 |
600-1800 |
<15 |
131.5 |
~1700 |
10300* 2600*6000 |
3000 |

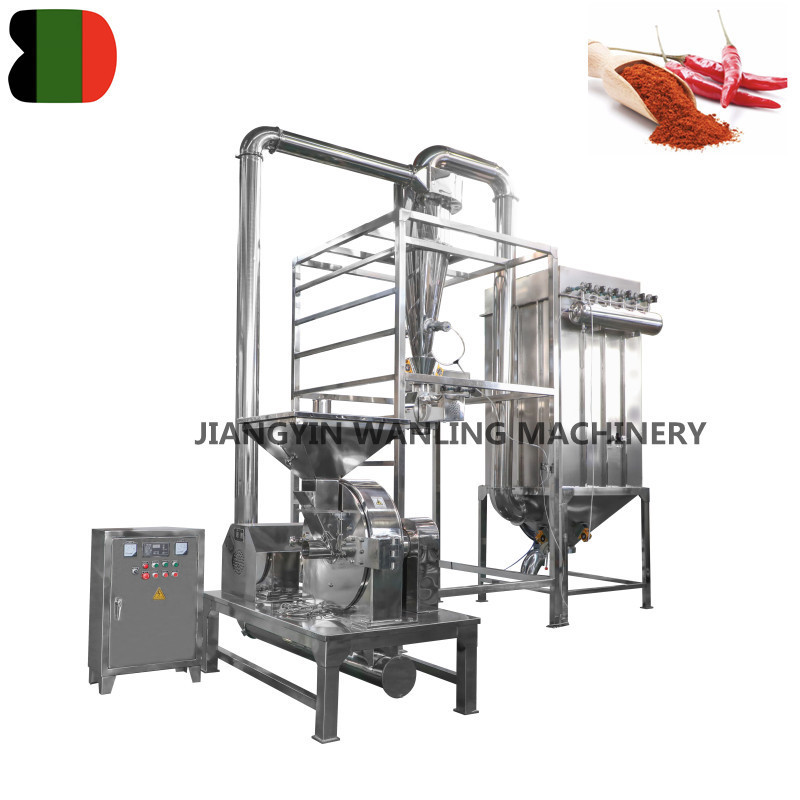

Machine Pics
