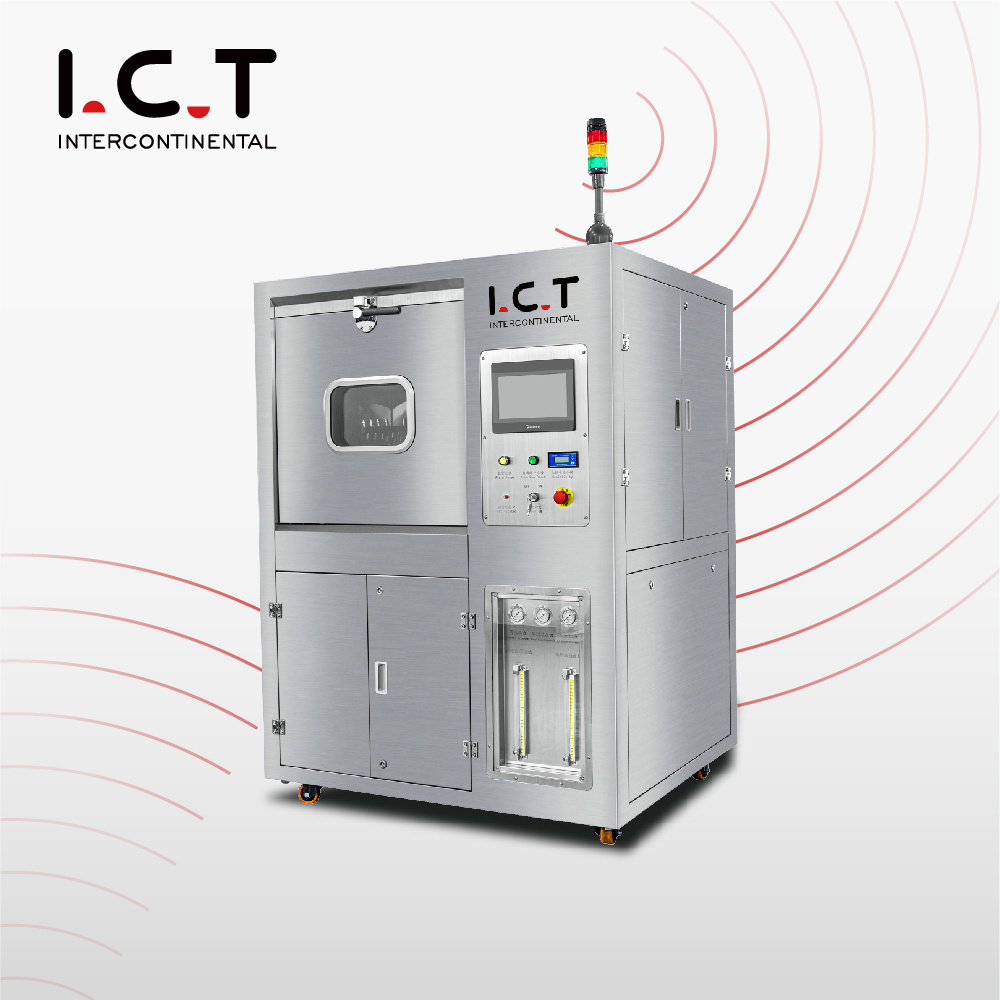

I.C.T-5600 is an off-line, compact,energy-saving and environmental protection,batch cleaning,high-end PCBA cleaning machine. I.C.T-5600 can automatically complete the cleaning,rinsing,drying process in the clean chamber by just push one
start key.
I.C.T-5600 PCBA cleaning machine can effectively clean the residuals on SMT / THT welding PCBA, such as: rosin flux,
water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
L800 x W950 x H1650
-
Weight (KG):
-
1600 kg
-
Name:
-
PCBA Cleaning Machine
-
Cleaning basket size:
-
L610 x W560 x H100 (mm) x2 layers
-
Spray tank capacity:
-
17L
-
Concentrate capacity:
-
32L
-
Dilution capacity:
-
60L
-
Clean time:
-
5~20min
-
Rinse time:
-
1~2min/times
-
Hot air dry time:
-
10~30min
-
PCB hot air day temp:
-
Room temp~99℃
-
DI water supply:
-
30~65L/Min
Quick Details
-
Applicable Industries:
-
PCB
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
I.C.T
-
Dimension(L*W*H):
-
L800 x W950 x H1650
-
Weight (KG):
-
1600 kg
-
Name:
-
PCBA Cleaning Machine
-
Cleaning basket size:
-
L610 x W560 x H100 (mm) x2 layers
-
Spray tank capacity:
-
17L
-
Concentrate capacity:
-
32L
-
Dilution capacity:
-
60L
-
Clean time:
-
5~20min
-
Rinse time:
-
1~2min/times
-
Hot air dry time:
-
10~30min
-
PCB hot air day temp:
-
Room temp~99℃
-
DI water supply:
-
30~65L/Min
Product Description
Automatic LED Stencil Solder Board Vacuum Liquid Ultrasonic Cleaner SMT Flexible Ultrasound Air Micro PCB Cleaning Machine
PCBA Cleaning Machine I.C.T - 5600
PCB Mis Print Cleaning Machine I.C.T-210
Large space:640*560*520mm,2 layers
Cleaning room(Stainless steel304)
Auto move
Before cleaning
After cleaning
Specifications
|
Cleaning basket size
|
L610 x W560 x H100 (mm) x2 layers
|
|
Spray tank capacity
|
17L
|
|
Concentrate capacity
|
32L
|
|
Dilution capacity
|
60L
|
|
Clean time
|
5~20min
|
|
Rinse time
|
1~2min/times
|
|
Detergent heat temp
|
Room temp~60℃
|
|
PCB hot air day temp
|
Room temp~99℃
|
|
Resistivity range
|
0~18MΩ
|
|
Detergent filter
|
0.22um
|
|
DI water supply
|
30~65L/Min
|
|
Power/Air supply
|
AC380V/50A/50HZ,30KW,0.5Mpa
|
|
Machine size
|
L1300 x W1200 x H1850(mm)
|
Certifications
Packing & Delivery
※ Standard Wooden Case with Vacuum Package
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
