Quick Details
-
Brand Name:
-
DYS/OEM
-
Use:
-
FTTH
-
Model name:
-
SC/APC Pigtail
-
Model:
-
SM(Single Mode)
-
Connector Type:
-
SC
-
Ferrule Endface:
-
APC
-
Cable Outer Diameter:
-
0.9mm
-
Cable lengh:
-
1/1.5/3/5/10/20m or customized
-
Fiber Type:
-
G652D//G657A2
-
Jacket:
-
PVC/LSZH
-
Pigtail Color:
-
Yellow or customized
-
Quality Standard:
-
Telcordia's GR-326-Core or IEC
Quick Details
-
Type:
-
Fiber Pigtails
-
Model Number:
-
SC pigtail
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DYS/OEM
-
Use:
-
FTTH
-
Model name:
-
SC/APC Pigtail
-
Model:
-
SM(Single Mode)
-
Connector Type:
-
SC
-
Ferrule Endface:
-
APC
-
Cable Outer Diameter:
-
0.9mm
-
Cable lengh:
-
1/1.5/3/5/10/20m or customized
-
Fiber Type:
-
G652D//G657A2
-
Jacket:
-
PVC/LSZH
-
Pigtail Color:
-
Yellow or customized
-
Quality Standard:
-
Telcordia's GR-326-Core or IEC
Product Description

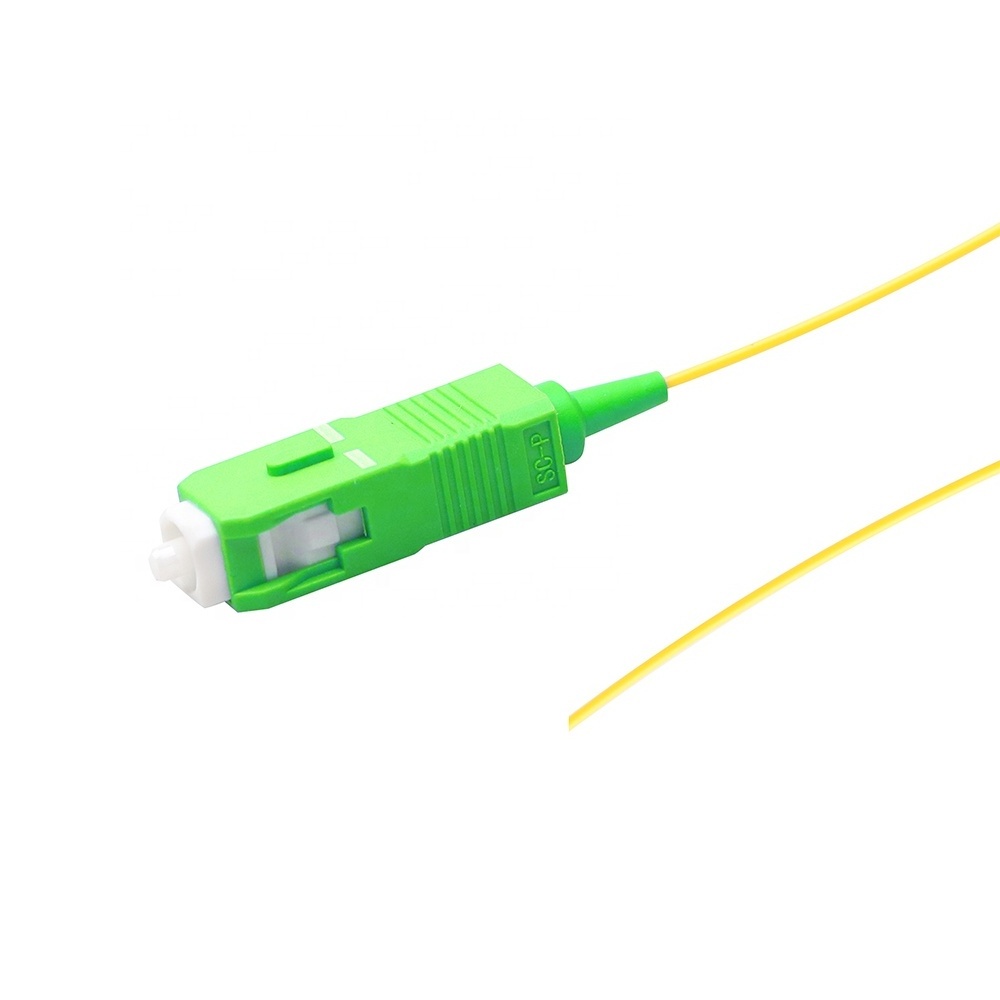

Good quality singlemode SC/APC 0.9mm fiber optic pigtail SC pigtail
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
9. Customized specifications are welcomed.
|
Item
|
SM(Single Mode)
|
|
|
MM(Multimode)
|
|
||||
|
Fiber Cable Type
|
G652D/G655/G657A1/G657A2
|
|
|
OM1
|
OM2/OM3/OM4
|
||||
|
Fiber Diameter (um)
|
9/125
|
|
|
62.5/125
|
50/125
|
||||
|
Cable OD (mm)
|
0.9/1.6/1.8/2.0/2.4/3.0
|
|
|
|
|
||||
|
Endface Type
|
PC
|
UPC
|
APC
|
UPC
|
UPC
|
||||
|
Typical Insertion Loss (dB)
|
<0.2
|
<0.15
|
<0.2
|
<0.1
|
<0.1
|
||||
|
Return Loss (dB)
|
>45
|
>50
|
>60
|
/
|
|
||||
|
Insert-pull Test (dB)
|
<0.2
|
|
<0.3
|
<0.15
|
|
||||
|
Interchangeability (dB)
|
<0.1
|
|
<0.15
|
<0.1
|
|
||||
|
Anti-tensile Force (N)
|
>70
|
|
|
|
|
||||
|
Temperature Range (℃)
|
-40~+80
|
|
|
|
|
||||
