Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Hairf
-
Dimension(L*W*H):
-
1000*795*1998
-
Weight (KG):
-
490 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Certification:
-
CE
-
Product name:
-
used commercial air conditioner accurate air con service
-
compressor brand:
-
Copeland
-
Controller:
-
Carel
-
Cooled type:
-
chilled water
-
Color:
-
Black
-
Name:
-
Outdoor Cabinet
Quick Details
-
Type:
-
Cabinet Air Conditioner
-
Mounting:
-
Floor Standing
-
Airflow:
-
100000
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Hairf
-
Dimension(L*W*H):
-
1000*795*1998
-
Weight (KG):
-
490 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Certification:
-
CE
-
Product name:
-
used commercial air conditioner accurate air con service
-
compressor brand:
-
Copeland
-
Controller:
-
Carel
-
Cooled type:
-
chilled water
-
Color:
-
Black
-
Name:
-
Outdoor Cabinet
Details Images
We Are Manufacturer

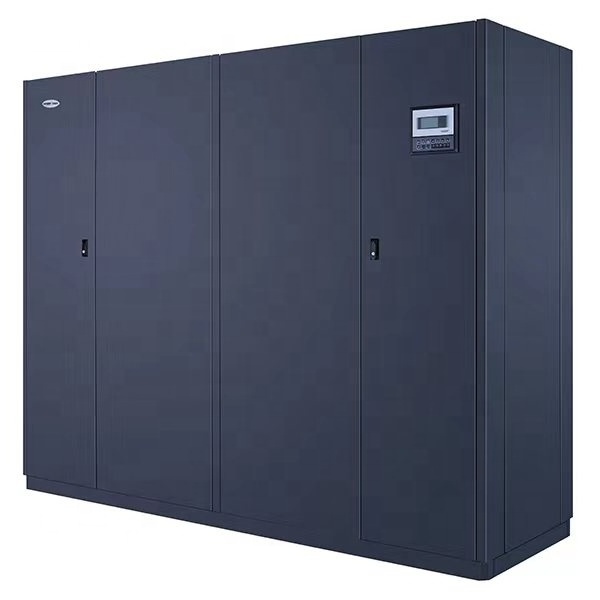

Air conditioning unit is designed for high sensible heat of electronic equipment,with big air flow and small enthalpy
difference,automatically adjust and control the cooling ,heating,humidification,dehumidfication to maintain constant temperature and humidity in data center,and effectively remove sensible heat arising due to computer operations.
difference,automatically adjust and control the cooling ,heating,humidification,dehumidfication to maintain constant temperature and humidity in data center,and effectively remove sensible heat arising due to computer operations.
Model:HADC/HAUC 0061 0081 0101 0111 0131 0161 0191 0201
Cooling capacity(1) kw 5.9 7.7 9.3 10.6 12.6 15.6 18.2 20.5
Air flow m3/h 1720 2150 2850 3200 3530 4800 5200 5700
EER 3.6 3.65 3.55 3.65 3.6 3.65 3.65 3.66
SHR 0.95 0.93 0.95 0. 95 0.93 0.96 0.93 0.93
Compressor
Type Scroll
Capacity
kw 1.5 1.9 2.2 2.3 3 3.6 4.3 5.3
Quantitynr 1 1 1 1 1 1 1 1
Finned coll evaporator
Frontal suface m2 0.29 0.29 0.47 0.47 0.47 0.65 0.65 0.65
Geometry mm 25X21.65
Type of fins Hydrophilic
FIn pitch mm 1.8
Fan section
Type Centrifugal fan
Quantity nr 1 1 2 2 2 2 2 2
Absorbed current A 1.2 1.6 3.2 3.2 3.2 3.8 3.8 3.8
Absorbed power W 165 282 500 563 563 668 668 850
AESP Max Speed(2) Pa 180 180 180 250 250 250 250 250
Air flter
Grade G4
Overall surface m2 2.2 2.2 3.6 3.6 3.6 5 5 5
Fire reslstance class 1
Electrical heaters
Total heating capaclty kw 2 2 2.5 2.5 2.5 5 5 5
Quantity nr 1 1 1 1 1 2 2 2
Material PTC
Humidifier Capacty Kg/h 5-8 5-8 5-8 5-8 5-8 5-8 5-8 5-8
Absorbed power kw 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25
Dimension&Weight
Height mm 1875 1875 1875 1875 1875 1875 1875 1875
Length mm 600 600 900 900 900 1200 1200 1200
Depth mm 449 449 449 449 449 449 449 449
Welght kg 150 157 195 210 230 245 255 270
Sound level Sound pressure lel(3 ) db(A ) 46 48 48 49 51 52 53 52
Products Description
Components:
scroll compressor
The core power of the unit is from Copeland hermetic scroll compressor that guarantees the high efficiency ,low noise and the long life of the unit.
Heater
An electric heater with perfect overheat protection function and ionization resistance, able to meet environmental requirements of the small heat-load machine rooms for base stations in cold arctic-alpine area.
Indoor fan
A blow fan adopts direct drive centrifugal fan with backward curved blades, the range of static pressure can be adjusted from 0 to 400pa, realizing the continuous operation of 365 days* 24 hours, 10 years’ average life.
Humidifier
An internationally advanced electrode steam humidification system under which the amount of humidification and water inflow and outflow are all controlled by computer, the auto cleaning program for the humidifier cylinder ensure normal humidification effciency of the clinder.
Filter
Air filter which is EU4 standard which is metallic bracket filtering the dust and particulate effectively by air circulation , then purifying the air environment of telecom room.
Expansion Valve
.
Expansion valve adopts advanced thermal expansion valves with strong reliability and stability and can precisely control the supply of refrigerant. In order to achieve the reduction of energy consumption for refrigeration equipment, we employ advanced electronic expansion valves in high-performance precision air conditioning units to realize less energy
consumption.
consumption.
High quanlity Controller
It strictly complies with CE and IEC standards and is empowered with advanced electric control technology and able to work under a power source of 380V±20%. In addition, it is installed with a power supply protection module, enabling it to make a selection of
protective value in a range of 380V±50%. When voltage goes beyond the selected range, it will automatically protect the unit. While the voltage becomes normal, it will automatically restart the unit.
protective value in a range of 380V±50%. When voltage goes beyond the selected range, it will automatically protect the unit. While the voltage becomes normal, it will automatically restart the unit.
Evaporator
An efficient evaporator made from quality material with advanced professional technology and featuring large heat exchange area and the realization of higher sensible heat factor of precision air conditioning unit.
one fan:
two fan:
Condenser
With an enclosure of anti-corrosion alloy that ensures service life and appearance of the is elaborately designed and able to satisfy the environmental protection requirements on noise, and a fan speed regulator that controls the rotating speed under different temperature and ensures sound operating effect and energy saving.
Product packaging
Overview
Hairf, with more than 30 years' R&D and manufacturing experience in serverroom equipment field,depends on world class labs and inspection and production equipment,not only can provides specialized products for meeting the exact requirement of user's job site, but also provides a perfect total solution for server room,rely on our complete production line of critical equipment used in server room.
Our professional system engineer and international sales and service team are alltrough the world in Mexico, Russia, Pakistan, China, Philippines, Singapore,Kazakhstan, to ensure we can provides 24 hours service to more than fifty countries around the world.
Till now we have set up offices in 22 cities such as Beijing, Shanghai, Guangzhou, Shenzhen, Chengdu,Xran,Wuhan,Zhengzhou,Fuzhou,Harbin,Hohhot to provide speedy technical support, installation, commisioning, maintenance and other after sales service.
Production Process
PROFESSIONAL TEAM
ACCURATE CONTROL
Certifications
Trade Capacity
Trade Shows
Main Markets&product(s)
|
Main Markets
|
Total Revenue(%)
|
Main Product(s)
|
|
Southeast Asia
|
50.00%
|
-
|
|
Mid East
|
20.00%
|
-
|
|
Central America
|
20.00%
|
-
|
|
Africa
|
10.00%
|
-
|
Trade Ability
|
Language Spoken
|
English, Chinese, Spanish, German, Russian, Italian
|
|
No. of Employees in Trade Department
|
6-10 People
|
|
Average Lead Time
|
25
|
|
Total Annual Revenue
|
Above US$100 Million
|
Business Terms
|
Accepted Delivery Terms
|
FOB, CIF, DDP, Express Delivery
|
|
Accepted Payment Currency
|
USD, EUR
|
|
Accepted payment methods
|
T/T, L/C
|
|
Nearest Port
|
Shanghai, Beijing, Shenzhen
|
FAQ
1.who are we
we are based in beijing ,china,start from 2005,sell to southeast asia(50.00%),Mid East(20.00%),Central America（20.00%),Africa(10.00%).There are total about 501-100 people in our office.
2.how can we guarantee quality?
Always a pre-production sampie before mass production;
Always final inspection bofore shipment.
3.what can you buy from us?
precision air conditioner,data center solution,UPS uninterruptible power supply,STS static transfer switch.
4.why should you buy from us not from other suppliers?
Hairf ,with more than 30 years' research and manufactur experience in server room equipment field,have world class labs,inspection equipment & computer room key equipment line.Now our product range includes precision air conditioner & data center solution.
5.what services can we provide?
Accepted Delivery Terms:FOB,CIF,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type:T/T,L/C;
Language Spoken:English,Chinese;
After-sales Service:Overseas support available.
