Quick Details
-
Panel Size:
-
., .
-
Place of Origin:
-
Taiwan, China
-
Model Number:
-
AC80TT-UWX-CX
-
use:
-
other
-
Pixel Pitch:
-
., .
-
Specification:
-
other
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
Super Brite/ All Brite
-
Panel Size:
-
., .
-
Place of Origin:
-
Taiwan, China
-
Model Number:
-
AC80TT-UWX-CX
-
use:
-
other
-
Pixel Pitch:
-
., .
-
Specification:
-
other
Specification

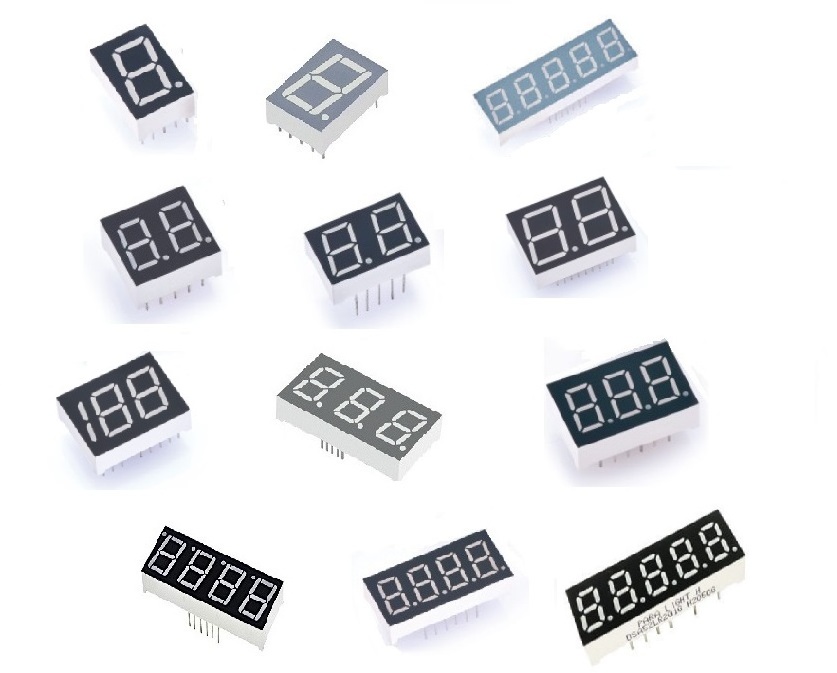

0.8” 3 Digit 7 Segment LED Display
AC80TT-UWX-CX
Product Description
Mechanical Dimensions
Features
•
0.8 inch (20.32mm) digit height
•
Case mold type
• RoHS compliant
• Low power consumption
• Easy mounting on P.C. board or socket
Absolute Maximum Rating (Ta=25℃)
|
Parameter
|
Symbol
|
Rating
|
|
Unit
|
||||
|
|
|
2
|
M / T / A / V / L / U
|
|
||||
|
Power Dissipation Per Dice
|
PAD
|
114
|
70
|
mW
|
||||
|
Derating Liner from 25℃ per Dice
|
-
|
0.4
|
0.33
|
mA/℃
|
||||
|
Continuous Forward Current Per Dice
|
IAF
|
30
|
25
|
mA
|
||||
|
Peak Current Per Dice
(duty cycle 1/10,1KHz) |
IPF
|
100
|
90
|
mA
|
||||
|
Reverse Voltage Per Dice
|
VR
|
5
|
5
|
V
|
||||
|
Electrostatic discharge(HBM)
|
ESD
|
1000
|
/
|
V
|
||||
|
Operating Temp.
|
Topr
|
-35 ~ +85
|
|
℃
|
||||
|
Storage Temp.
|
Tstg
|
-35 ~ +85
|
|
℃
|
||||
|
Solder Conditions: 1/16 inch below seating plane for 3 -5 seconds at 260℃.
|
|
|
|
|
||||
Electro-optical Characteristics (Ta=25℃)
All Light On Segments Feature & Pin Position
