Quick Details
-
Brand Name:
-
ONNT
-
Model:
-
DSNU
-
Type:
-
Double Action
-
Port Size:
-
M5x0.8 G1/8'' G1/4''
-
Bore size:
-
10/12/16/20/25/32/40mm
-
Stroke:
-
25-600mm
-
Front Cover/ Back Cover:
-
Aluminum Alloy
-
Fluid:
-
Ari
-
Operating Pressure:
-
0.15~1.0MPa
-
Proof Pressure:
-
1.5mpa/215psi
-
Working Temperature:
-
-20-70
Quick Details
-
Weight (KG):
-
1.5
-
Core Components:
-
Other
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONNT
-
Model:
-
DSNU
-
Type:
-
Double Action
-
Port Size:
-
M5x0.8 G1/8'' G1/4''
-
Bore size:
-
10/12/16/20/25/32/40mm
-
Stroke:
-
25-600mm
-
Front Cover/ Back Cover:
-
Aluminum Alloy
-
Fluid:
-
Ari
-
Operating Pressure:
-
0.15~1.0MPa
-
Proof Pressure:
-
1.5mpa/215psi
-
Working Temperature:
-
-20-70

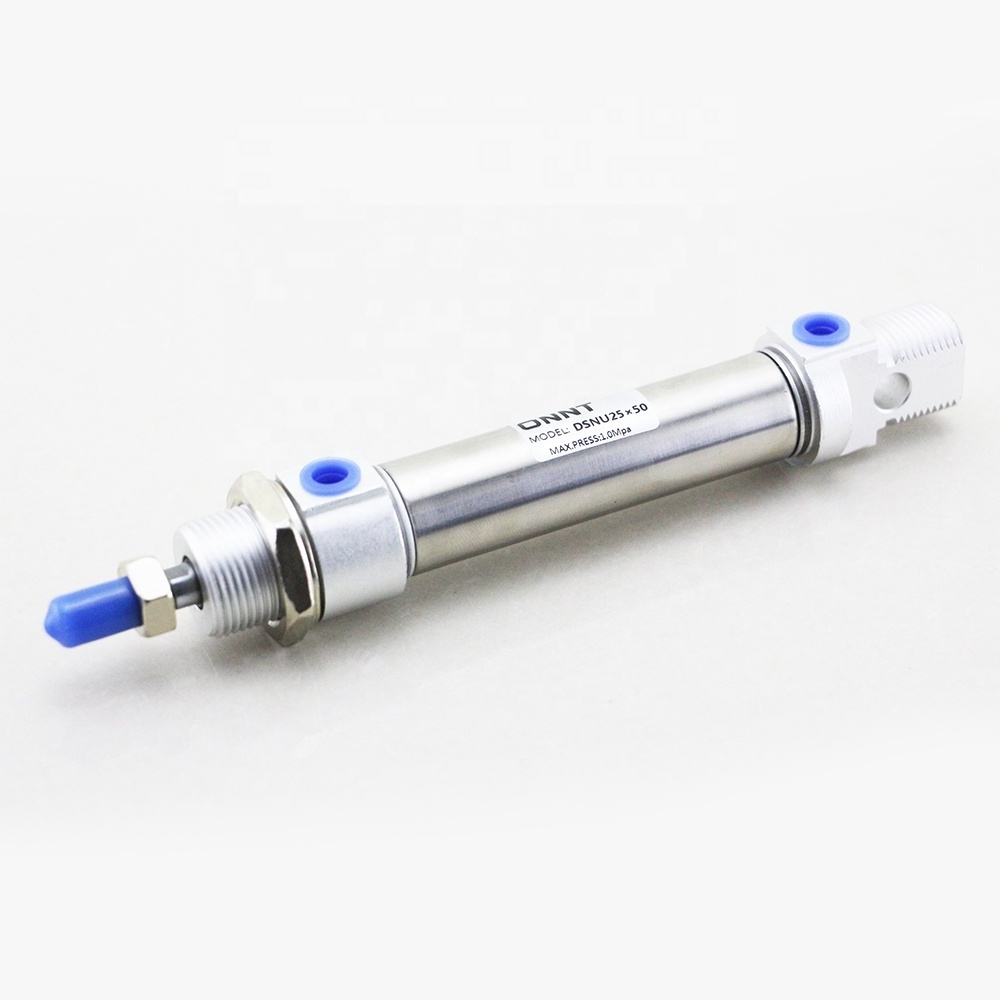

Double Acting ISO 6432 DSNU Mini Customized Pneumatic Cylinder Stainless Steel Round Micro Air Cylinder
Ordering Code
DSNU 25 × 50 - PPV - A
Series Bore x Stroke Built-in magnets Rear cover type
DSNU: Double-acting type P: Flexible cushioning rings, pads at both ends A:Via proximity sensor
DSN: Double-acting type PPV: Pneumatic cushioning, adjustable at both ends
ESNU: Single-acting type PPS: Pneumatic cushioning, self-adjustable at both ends
ESN: Single -acting type
Inner structure and material of major parts:
Specifications
| Bore size | 8 | 10 | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
| Confoms | ISO 6432 | |||||||||
| Pneumatic connection | M5 | M5 | M5 | M5 | G1/8 | G1/8 | G1/8 | G1/4 | G1/4 | G3/8 |
| Piston rod thread | M4 | M4 | M6 | M6 | M8 | M10X1.25 | M10X1.25 | M12X1.25 | M16X1.5 | M16/1.5 |
| Stroke | 1...100 | 1...200 | 1...320 | 1...500 | ||||||
| Constructional design | Piston/ Piston rod / Cylinder barrel | |||||||||
| Cushioning | ||||||||||
| DSNU-...-P | Flexible cushioning rings/ pads at both ends | |||||||||
| DSNU-...-PPV | - | Adjustable cushioning at both ends | ||||||||
| DSNU-...-PPS | - | Self-adjustable cushioning at both ends | ||||||||
| Cushioning length | ||||||||||
| DSNU-...-PPV | - | 9 | 12 | 15 | 17 | 14 | 18 | 20 | 21 | |
| DSNU-...-PPS | - | 12 | 15 | 17 | 14 | 18 | 20 | 21 | ||
| Position sensing | Via proximity sensor | |||||||||
| Type of mounting | Direct mounting | |||||||||
| Via accessories | ||||||||||
| Mounting position | Any | |||||||||
