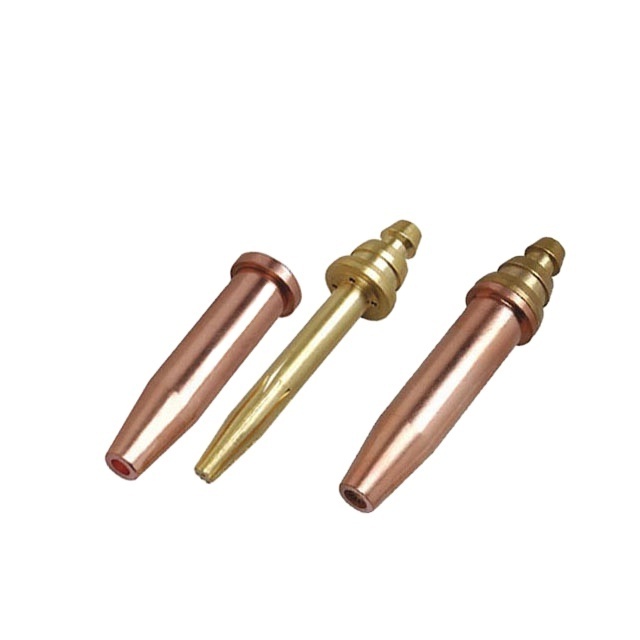

Cutting Nozzle, G03 Propane Cutting Nozzle Tip , Propane Torch Head

FOB Reference Price: Get Latest Price

≥100 Pieces

US $3.5

Free Inquiry

Customized Request

Quick Details

Victor Type Cutting Nozzle , G03 Propane Gas Cutting Nozzle Tip , Propane Torch Head

1)Quick Detail:

1.Pnme cutting nozzle for cutting torch

2.Applicable to propane,propylene and natural gas

3.Material:brass and red copper

2)Description:

1.G03 Cutting tips are available when oxygen supply pressure is below 0.6Mpa

2.With cone angle of 30degrees, it is suitable for international use.

3.With split structure;Made of high-quality tellurium copper, with a extremely long using life;

4.Applicable to propane,propylene and natural gas;

5.Made of pure copper,nozzle sheath is punched into shape once only,with precise dimensions and good-looking appearance;

6.Inner core is made of imported high-quality brass,the core is machined by CNC lathe with high precision;

7.100%flame test.

3)Applications:

GO3 acetylene cutting tip applicable to propane.

4)Competitive Advantage:
1.Long service life and the efficiency of cutting is high
2.Accurate size,beautiful appearance

5) Specifications:

ModelNo.	Diamet erof cutting oxygen mn	Cutting thickness mm	Cuttingspeedm/min	Gas Pressure Mpa		Gas consuption(m/h)
ModelNo.	Diamet erof cutting oxygen mn	Cutting thickness mm	Cuttingspeedm/min	Oxygen	Acetylene	Oxygen	Acetylene
00	0.8	5~-10	600~~450	0.2~0.3	>0.03	0.9~1.3	340
00	1	10~20	480~~380	0.2~~0.3	>0.03	1.3~~1.8	340
1	1.2	20~30	400~320	0.25~~035	>0.03	2.5~3	470
2	1.4	30~50	350~280	0.25~~035	>0.03	3~~4	470
3	1.6	50~70	300~~240	0.3~~0.4	>0.04	14.5~~6	620
4	1.8	70~90	260~200	0.3~~0.4	>0.04	5.5~7	620
5	2.0	90~120	210~~170	0.4~~0.6	>0.04	8.5~~10.5	620
6	2.4	120~~160	180~~140	0.5~~08	>0.05	12~15	780
7	2.8	160~~200	150~~110	0.6~~0.9	>0.05	21~~24.5	100
8	3.2	200~270	120~90	0.6~~1.0	>0.05	26.5~32	1000
9	3.6	270~~350	90~60	0.7~1.1	>0.05	40~~46	1300
10	4	350~400	70~50	0.7~1.2	>0.05	49~~58	1600
Note:Cutting conditions:
1.0xygen purity is above 99.5%
2.Carbon rate of steel material=045%
3.Cutting way:wertical cutting
4.0xygen pressure refers to cutting pressure before arriving at the cutting torch
