Quick Details
-
Model Number:
-
xldwcp
-
Specification:
-
DN20mm-DN1600mm
-
Length:
-
100m/pc or 200m/pc
-
Standard:
-
ISO4427/ IPS/DIPS
-
Color:
-
Blue
-
Application:
-
Water
-
Product name:
-
HDPE Polyethylene Black Pipe
-
Feature:
-
Corrosion Resistant
-
MOQ:
-
100 Meters
-
OEM:
-
Accpet
-
Size:
-
DN110-DN1600mm
-
Type:
-
Round Pipe
-
Certification:
-
ISO4427/ IPS/DIPS
-
Advantage:
-
Low Cost
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
China
-
Brand Name:
-
xiaolong
-
Model Number:
-
xldwcp
-
Specification:
-
DN20mm-DN1600mm
-
Length:
-
100m/pc or 200m/pc
-
Standard:
-
ISO4427/ IPS/DIPS
-
Color:
-
Blue
-
Application:
-
Water
-
Product name:
-
HDPE Polyethylene Black Pipe
-
Feature:
-
Corrosion Resistant
-
MOQ:
-
100 Meters
-
OEM:
-
Accpet
-
Size:
-
DN110-DN1600mm
-
Type:
-
Round Pipe
-
Certification:
-
ISO4427/ IPS/DIPS
-
Advantage:
-
Low Cost
|
Supply
|
HDPE Corrugated Pipes and Fittings
|
|
Standard
|
ISO4427/ IPS/DIPS
|
|
Sizes
|
DN225-DN800 or Custom
|
Products Description
|
Name
|

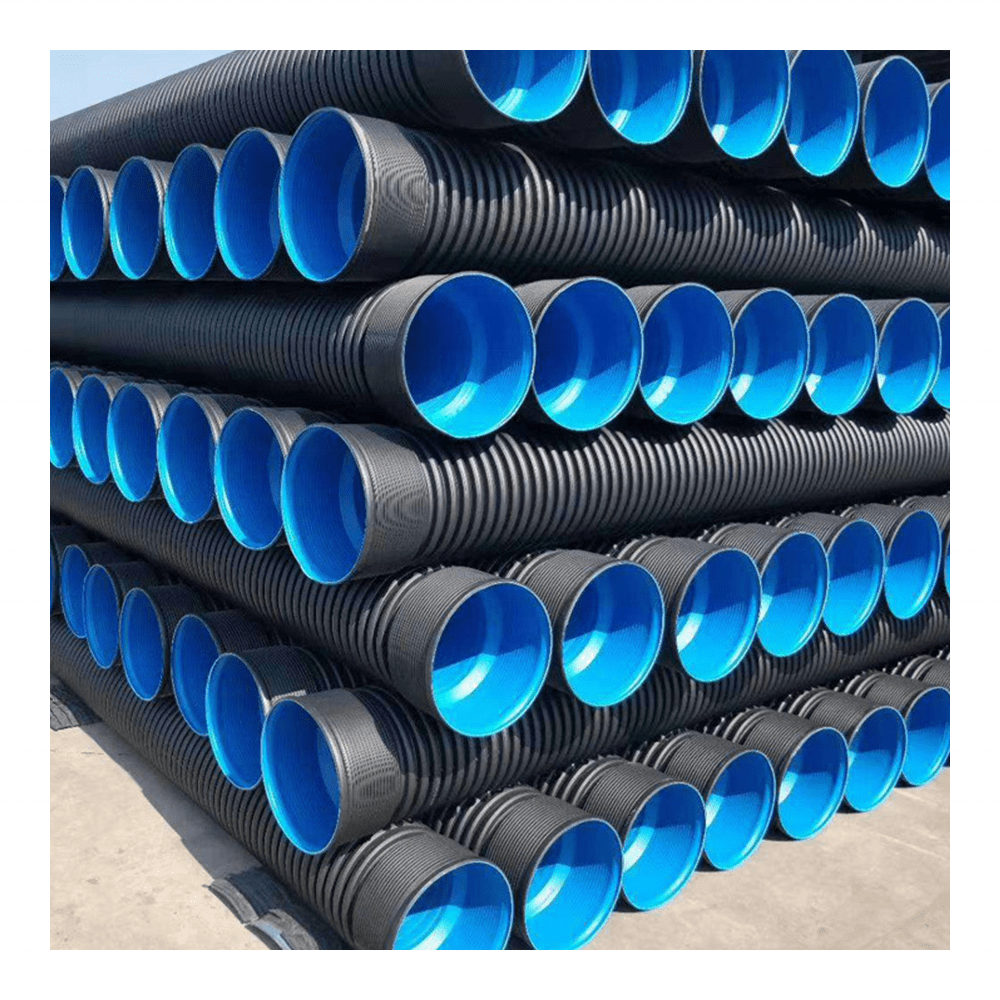

HDPE Double Wall Corrugated Pipe
|
|
Size:
|
DN225-DN800mm or custom
|
|
Application
|
Hdpe Water Drain Pipe
|
|
Type
|
Round Pipe
|
|
Color
|
Blue and black or custom
|
|
Standard
|
ISO4427/ IPS/DIPS
|
|
Certification
|
ISO 9001:2000/ISO 14001:2004
|
Product Paramenters
Specification parameters of double-wall Bellows
|
The Specification of HDPE Double-Wall Corrugated Pipe
|
|
|
|
|
|
|
||||||
|
DN/ID
|
Min ID
|
OD
|
O.D.tolerance
|
Min Thinkness
|
Bellmouth ID
|
Min Bellmouth ID
|
||||||
|
225
|
220
|
255
|
±3
|
≥1.7
|
264-269
|
≥55
|
||||||
|
300
|
294
|
330
|
±3
|
≥2.0
|
348-351
|
≥64
|
||||||
|
400
|
392
|
456
|
±3
|
≥2.5
|
465-469
|
≥74
|
||||||
|
500
|
490
|
572
|
±3
|
≥3.0
|
549-553
|
≥85
|
||||||
|
600
|
588
|
690
|
±3
|
≥3.5
|
668-672
|
≥96
|
||||||
|
800
|
785
|
925
|
±3
|
≥4.5
|
888-895
|
≥118
|
||||||
Details Images
HANDLING
Do ✔
Store pipe on firm and flat surfaces.
Keep pipe and fttings away from sharp objects, heat,and toxic and aggressive materials.
Take carenot tocut,kink,abrade,or otherwise damage the pipe during handling.
Keep protective packaging intact until pipes and fittings are required for use.
Release coils carefully,keeping in mind they may be coiled under tension.
Take care when handling pipe under wet or frosty conditions,as the pipe may become slippery.
Temporarily cap cut pipe ends to prevent dirt or other material from entering the pipe.
Uncoil pipe and allow it to warm in the sun before burial for ease of installation.
DON"T ❌
Throw pipe from delivery vehicles.· Drag pipe or roll pipe coils.
Place pipeand fittings incontact withlubricating oil,gasoline,solvents,or other aggressive materials.Heat pipe with an open flame.
Customer Photos
HDPE Pipe Applications
HDPE pipes are used in varied industries like Agriculture, Chemical, Industrial, Sewage and Drainage, Sprinkler Irrigation, Industrial Effluents and House services connection works as well.
Product packaging
Exhibition
Certifications
FAQ
Q: What is your MOQ?
A: As customer's request.
Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.
Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.
Q: Do you have customized pipe fittings?
A: We can make any plastic pipe fittings according customer drawings.
Q: What's the payment term?
A:
Order amount <=1,000USD, 100% in advance.
Order amount>=1,000USD, 30% T/T in advance, balance before shipment.
Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable.
Order amount>100,000USD, 100% L/C at sight acceptable.
