Quick Details
-
Max. Loading Capacity:
-
5L
-
Weight (KG):
-
80 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TANDY
-
Voltage:
-
3P AC208-415V 50/60Hz
-
Dimension(L*W*H):
-
1280X820X1300mm
-
Power (kW):
-
0.4 kW
-
Marketing Type:
-
Hot Product 2020
-
Name:
-
Laboratory Bin Blender
-
Max Working Volume:
-
4L
-
Function:
-
Homogenzing
-
Usage:
-
Cosmetic Industry
-
Application scope:
-
Food Cosmetic Chemical
-
Keyword:
-
Small Powder Mixer
-
Structure:
-
Operation Cabinet
-
Feature:
-
Simple Operation
-
Advantage:
-
Easy Control
Quick Details
-
Barrel Volume (L):
-
5 L
-
Max. Loading Volume (L):
-
5 L
-
Range of Spindle Speed(r.p.m):
-
3 - 25 r.p.m
-
Max. Loading Capacity:
-
5L
-
Weight (KG):
-
80 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TANDY
-
Voltage:
-
3P AC208-415V 50/60Hz
-
Dimension(L*W*H):
-
1280X820X1300mm
-
Power (kW):
-
0.4 kW
-
Marketing Type:
-
Hot Product 2020
-
Name:
-
Laboratory Bin Blender
-
Max Working Volume:
-
4L
-
Function:
-
Homogenzing
-
Usage:
-
Cosmetic Industry
-
Application scope:
-
Food Cosmetic Chemical
-
Keyword:
-
Small Powder Mixer
-
Structure:
-
Operation Cabinet
-
Feature:
-
Simple Operation
-
Advantage:
-
Easy Control

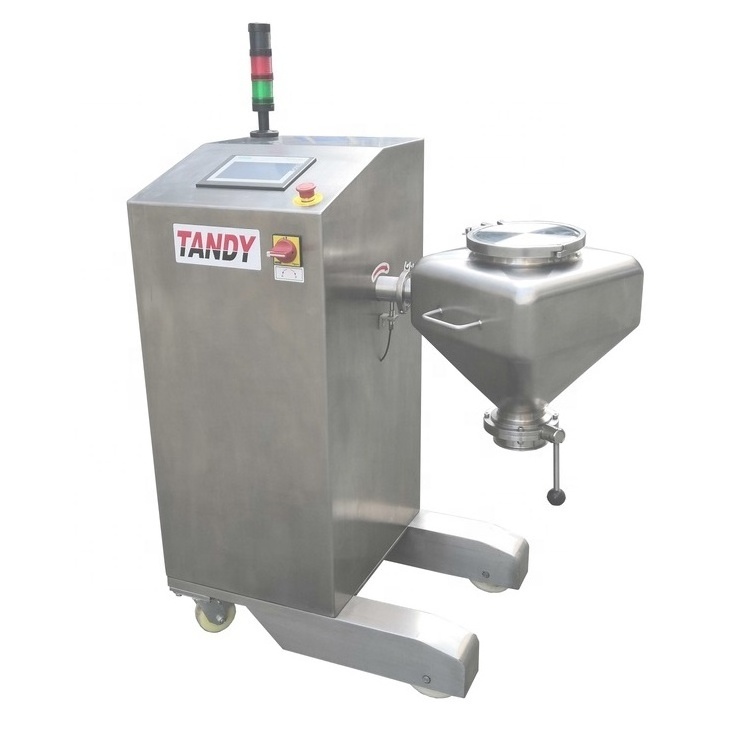

Stainless Steel Lab Scale Small Bin Blender/Dry Powder Mixing Machine
The lab bin blender is installed on a moveable bases. It is main part including machine frame, rotation system, electric control system, hopper etc. The conical mixing hopper is mainly composed of hopper, hopper cover, ferrule, butterfly valve etc.
Main Features:
1. The mixing hopper and main machine adopt quick disassembled type connection with convenient installation and disassembly.
2. It can be equipped with different mixing hoppers to match requirement for laboratory tests without the necessary of frequent material transferring, material discharging etc.
3. It adopts PLC automatic control to carry out automatic mixing and positioning with user-friendly control and operation.
4. The machine is free from any dead corner of sanitation, the exposed parts are made of high quality austentic stainless steel , fully meeting the requirements for machine production in GMP.
|
Model no. |
Effective Volume(L) |
Loading coefficient |
Power(KW) |
Rotation speed(r/min) |
Dimension (mm) |
Weight(kg) |
|
TLB-5 |
5 |
0.4 |
3-25 |
1280X820X1300 |
50 |
|
|
TLB-10 |
10 |
80% |
0.4 |
3-25 |
1280X840X1300 |
65 |
|
TLB-20 |
20 |
80% |
0.4 |
3-25 |
1280X850X1300 |
80 |
|
TLB-25 |
25 |
80% |
0.75 |
3-20 |
1450X1020X1350 |
90 |
|
TLB-50 |
50 |
80% |
0.75 |
3-20 |
105 |
|
|
TLB-100 |
100 |
80% |
0.75 |
3-20 |
1500X1050X1350 |
135 |
|
Pls feel free to contact us if you need more technical parameters! |
||||||
