Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GLOBALSTAR GLASS
-
Model Number:
-
LAMINATED GLASS
-
Material:
-
Glass
-
Quality:
-
Grade A
-
Interlayer type:
-
PVB, SentryGlass SGP, EVA
-
Glass thickness:
-
3+3mm 4+4mm 5+5mm 6+6mm
-
Feature:
-
Super strong, high safety
-
Processing:
-
Polished edges, drill holes,cutout
-
Design Style:
-
Modern
-
Technique:
-
Tempered Glass
-
Type:
-
Laminated Glass
Quick Details
-
Application:
-
Courtyard, Supermarket, Workshop, Kitchen, School, Bathroom, Bedroom, Dining, Warehouse, Home Office, Staircase, Outdoor, Living Room, Office Building, Gym, Mall, Apartment, Hospital, Villa, Hotel, Hall
-
Usage:
-
Industrial, Decoration, Curtain Wall, Balustrades & Handrails, Bulletproof
-
Thickness:
-
3mm-30mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GLOBALSTAR GLASS
-
Model Number:
-
LAMINATED GLASS
-
Material:
-
Glass
-
Quality:
-
Grade A
-
Interlayer type:
-
PVB, SentryGlass SGP, EVA
-
Glass thickness:
-
3+3mm 4+4mm 5+5mm 6+6mm
-
Feature:
-
Super strong, high safety
-
Processing:
-
Polished edges, drill holes,cutout
-
Design Style:
-
Modern
-
Technique:
-
Tempered Glass
-
Type:
-
Laminated Glass
Products Description

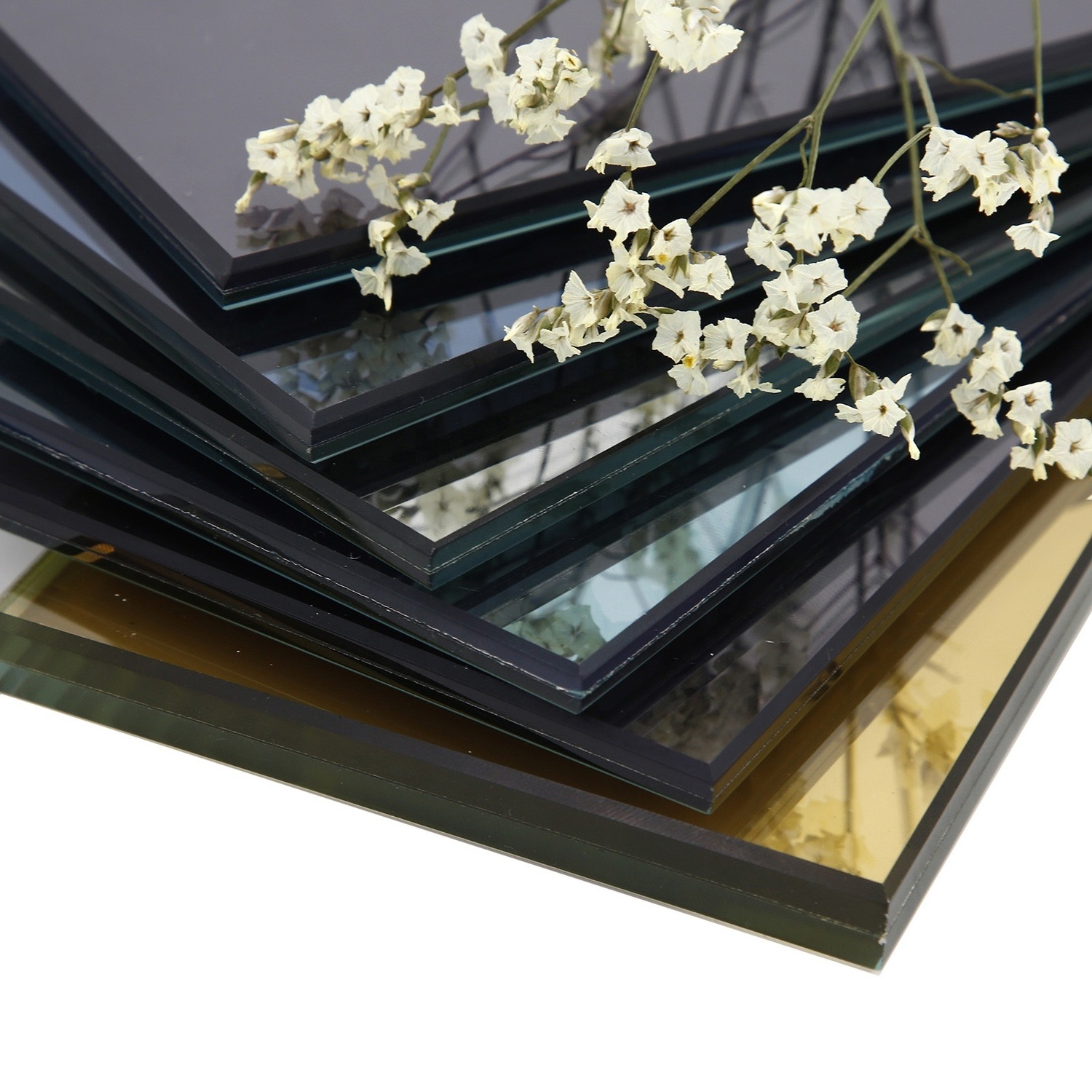

Clear/Milk/White/Tempered /Toughened/Low E/Fire Resistant/Bulletproof/Insulated/Cyclone Rated Decorative Laminated Glass
GLOBALSTAR GLASS
--Laminated Glass Description
A) Two or three layers of glass "sandwiched" together with clear or colored PVB interlayer,
laminated glass is the one glass that reconciles the aesthetic benefits of glass with a genuine concern for safety;
Offering superior protection against glass breakage, as well as harmful solar rays and hazardous noise levels.
B) Due to the adhesive properties of the PVB, takes careful precautions to prevent unwanted particles from attaching to the PVB
during the adhesion process.
A) Two or three layers of glass "sandwiched" together with clear or colored PVB interlayer,
laminated glass is the one glass that reconciles the aesthetic benefits of glass with a genuine concern for safety;
Offering superior protection against glass breakage, as well as harmful solar rays and hazardous noise levels.
B) Due to the adhesive properties of the PVB, takes careful precautions to prevent unwanted particles from attaching to the PVB
during the adhesion process.
Glass Material
Clear float glass, tinted float glass,reflective glass tempered glass, mirror ,acid etched glass etc
Glass Colors
A) Blue: Sky Blue, Lake Blue, Ford Blue, Dark Blue, Royal Blue;
B) Bronze: Dark Bronze, Euro Bronze;
C) Clear;
D) Green: Dark Green, French Green;
E) Grey: Dark Grey, Euro Grey, Mist Grey, Century Grey;
F) Pink etc.
Clear float glass, tinted float glass,reflective glass tempered glass, mirror ,acid etched glass etc
Glass Colors
A) Blue: Sky Blue, Lake Blue, Ford Blue, Dark Blue, Royal Blue;
B) Bronze: Dark Bronze, Euro Bronze;
C) Clear;
D) Green: Dark Green, French Green;
E) Grey: Dark Grey, Euro Grey, Mist Grey, Century Grey;
F) Pink etc.
|
Glass Thickness
|
A) Total thickness: 6.38-17.52mm
B) Glass thickness details: 3+0.38PVB+3mm; 4+0.38PVB+3mm; 5+0.38PVB+5mm; 6+0.38PVB+6mm; 3+0.76PVB+4mm; 4+0.76PVB+4mm; 5+0.76PVB+5mm; 6+0.76PVB+6mm etc. |
|
PVB Colors
|
A) Milky White
B) French Green C) Light Blue D) Bronze E) Light Grey F) Dark Grey G) Ocean Blue etc. |
|
PVB Thickness
|
0.38mm, 0.76mm, 1.14mm, 1.52mm etc.
|
|
Size
|
2440*1830mm, 3300*2134mm etc.
|
Benefits
A) Holds together when shattered. The PVB interlayer keeps the glass bonded,
even when broken, resulting in a characteristic spider web cracking pattern across the glass.
B) Cyclone resistant
C) Superior UV blockage
D) Excellent sound damping properties
E) Low visible distortion
Applications
A) External use of windows, doors, shopfronts in offices, houses, shops etc.
B) Interior glass screens, partitions, balustrades etc.
C) Shop display windows, showcases, display shelves etc.
D) Furniture, table-tops, picture frames etc.
A) Holds together when shattered. The PVB interlayer keeps the glass bonded,
even when broken, resulting in a characteristic spider web cracking pattern across the glass.
B) Cyclone resistant
C) Superior UV blockage
D) Excellent sound damping properties
E) Low visible distortion
Applications
A) External use of windows, doors, shopfronts in offices, houses, shops etc.
B) Interior glass screens, partitions, balustrades etc.
C) Shop display windows, showcases, display shelves etc.
D) Furniture, table-tops, picture frames etc.
|
Laminated Glass Performance Levels according to Thickness
|
|
|
|
|||
|
Glass Characteristic
|
Glass Characteristic
|
UV Transmittance (%)
|
LT (%)
|
|||
|
3+0.38+3mm Clear
|
6.38mm
|
5
|
89
|
|||
|
6+0.38+6mm Clear
|
12.38mm
|
3
|
86
|
|||
|
6+0.38+6mm Reflective
|
12.38mm
|
0.5
|
22
|
|||
|
REQUIREMENT
|
BENEFIT
|
GLASS ASSEMBLY
|
|
Solar control
|
Energy saving
|
2ply+1PVB interlayer
|
|
|
UV elimination
|
2ply+1PVB interlayer
|
|
Sound control
|
Noise reduction
|
2ply+1PVB interlayer
|
|
Safety
|
Lowest injury risk
|
2ply+2PVB interlayers
|
|
|
Anti-bandit protection
|
2ply+4-6PVB interlayers
|
|
Security
|
Forced entry protection
|
3ply+4PVB interlayers
|
|
|
Bullet proof
|
Decide case by case, at least
|
|
|
Blast resistant
|
4ply+multi PVB interlayers
|
Tinted laminated glass in different color like white, white translucent, red, blue, green, bronze, black, grey color etc...
Color laminated glass mainly has two types, one is clear glass laminates color PVB interlayer,
another one is color glass laminates clear PVB. Most of color laminated glass use color PVB interlayer to laminate clear float
glass or clear tempered glass
Color laminated glass mainly has two types, one is clear glass laminates color PVB interlayer,
another one is color glass laminates clear PVB. Most of color laminated glass use color PVB interlayer to laminate clear float
glass or clear tempered glass
1: Are you a manufacturer?
Yes,we are a professional manufacturer with 20 years experince in glass industry, we produce tempered glass ,insulated glass,laminated glass,LOW-E glass, reflective glass, fire proof glass, bullet proof glass ,louver glass etc . we have our strong technical team and full range of glass processing production lines .
2: Are you certificated ?
Yes, all of our products certificated for CCC,ISO,CE,AS/NZS2208,SGCC,SAS etc.
3: Can you produce the glass as customized ?
Yes, we can produce products based on customer’s requirement .
4: What is your payment terms ?
We accept T/T and L/C at sight payment with our customers .
5: How soon can the products be delivered?
Normally, we can ship the products within 14-20 days after confirmed the order..
