Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VILITY
-
Dimensions(L*W*H):
-
3500*1500*2100MM
-
Weight:
-
2000 KG
-
Certification:
-
CE CCC ISO
-
Product name:
-
CCD alignment screen printing for sheet
-
Application:
-
Industrial printing
-
Type:
-
full-auto silk screen printer
-
Color:
-
Single Color Printing
-
Station:
-
1Station
-
Keywords:
-
high accuracy printing
-
Printing speed:
-
600Pcs/Hour
-
Package:
-
Wooden Case. Duly Package
-
Gross Power:
-
5KW
-
Operation:
-
PLC+ Touch Screen
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
380V-50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VILITY
-
Dimensions(L*W*H):
-
3500*1500*2100MM
-
Weight:
-
2000 KG
-
Certification:
-
CE CCC ISO
-
Product name:
-
CCD alignment screen printing for sheet
-
Application:
-
Industrial printing
-
Type:
-
full-auto silk screen printer
-
Color:
-
Single Color Printing
-
Station:
-
1Station
-
Keywords:
-
high accuracy printing
-
Printing speed:
-
600Pcs/Hour
-
Package:
-
Wooden Case. Duly Package
-
Gross Power:
-
5KW
-
Operation:
-
PLC+ Touch Screen

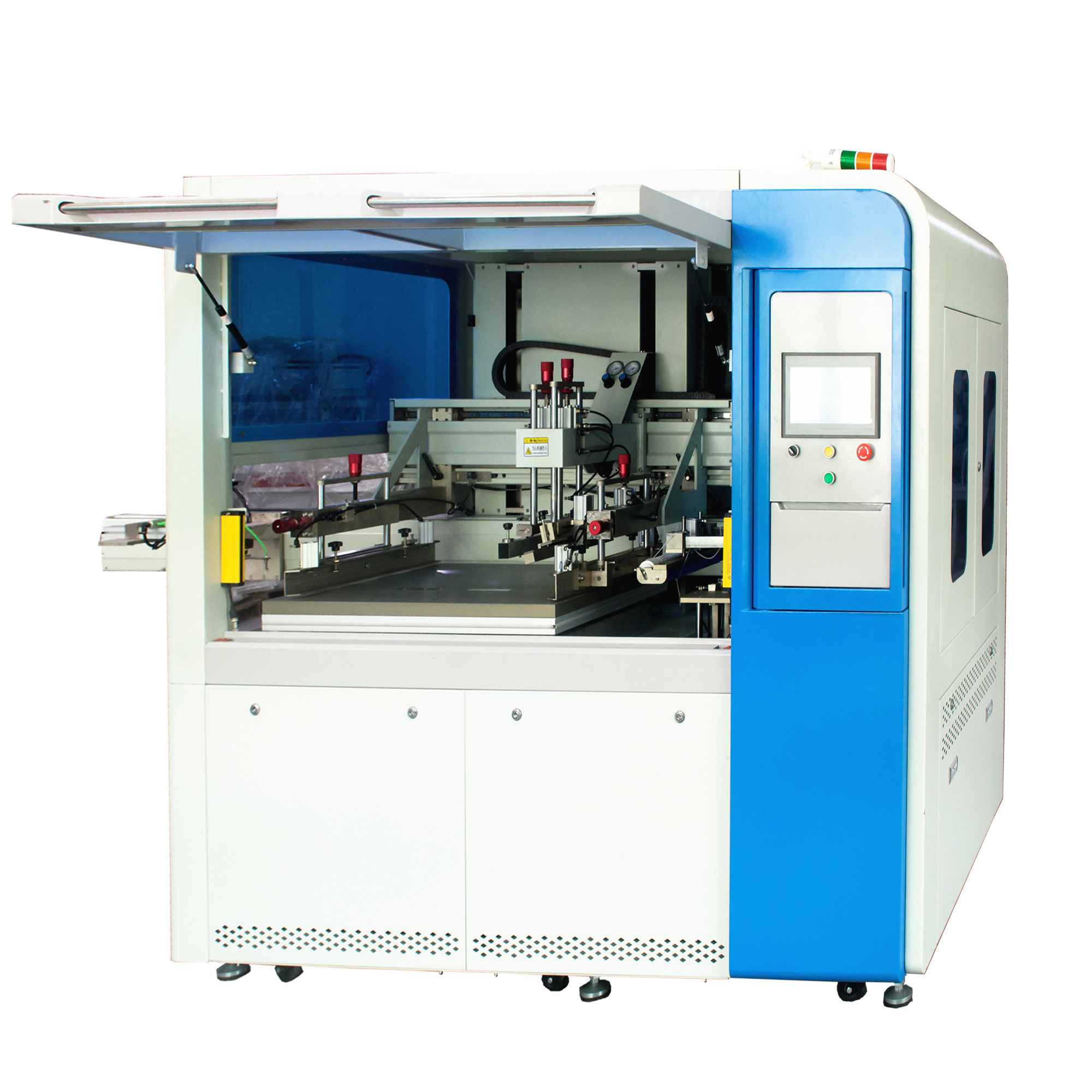

CCD Alignment Screen Printing Machine For Sheet
The CCD Alignment Screen Printing Machine for Sheet is the core machine of the sheet printing line.The whole process includes: automatic separate material - auto dust removal (including Initial positioning of clamping edge) - automatic loading - CCD alignment screen printing - automatic unloading - baking - auto collecting the finished product.
Screen frame up/down movement :driven by servo motor and hall screw with clearance tolerance controlled with 50um.
Automatically separate material → auto removal → auto loading → CCD alignment screen printing → auto unloading → dry → auto collecting the finished product.
The CCD Alignment Screen Printing Machine for Sheet is widely used in FPC, PET, PVC, transfer paper (film), floor heating film, geothermal film, electro thermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, 3 m glue, glue, film switch, trademark laser, scratch CARDS, self-adhesive stickers, paper, ribbon, aluminum foil and copper foil this sheet material silk screen printing.
1,Automated equipment for sheet to sheet printing;
2,Industrial computer control,Servo motor transportation,HD CCD image positioning;
3,Automatic printing production.Meet the needs of high volume orders;
4,Dramatically reduce costs, Increase productivity;
5,CCD high-precision alignment,Guaranteed high-precision printing;
6,Equipment can make production schedule,Automatic alarm after production completion;
7,Automatic machine shutdown alarm after printing material is completed;
8,CCD adopts XYθ rotation alignment adjustment,No need to adjust the network;
9,Labor saving,One person can supervise multiple devices,Easy to operate,Easy to learn;
10,Use automatic dust and static elimination function,Cleaner materials;
| Warranty | 1 year |
The above parameters are for our standard
CCD Alignment Screen Printing Machine for Sheet
. If this specification meets your production requirements you can place your order directly and we will ship it to you immediately.
If you need to customise some of these parameters, we will improve them for you to ensure that the product meets your requirements exactly. As soon as the machine has been commissioned, we will deliver it to you
(2)Using numerical control motor, printing speed, return to the ink speed can be set in a random block.
According to customers' request, we accept customization, for example, adding anti-dust cover, exhuast cover, drying oven, tunnel furnace, UV curing machine, feeding direction, loading and unloading direction, etc.
The max feeding frame size is 500mmx500mm(can be customized), it can be adjustable after putting material on to fix them, right side, front and back sides are adjustable, it's convenient for customer to make adjustment.
The advantage of this machine is printing platform automatic alignment with CCD camera positioning, it's very suitable for printing multicolors which need high precision, the accuracy of camera positioning is ± 0.02mm, printing accuracy is ± 0.05mm, it can give customers a superior performance, and greatly improved production yield.
The printing scraper and blade adopt imported high level quality stainless steel, expanding printing usinglife, it has a pressure stabilizer ensuring constant pressure at all times.There's a function that the height and oblique can be adjustable to improve printing quality.
All raw material we adopt high quality stainless steel, beautiful and longlife using.
User-friendly PC based control combined with touch screen monitor for maximum operational convenience.
The default language is Chinese-English, customer can convert to use, we also accept other language customization.
