Quick Details
-
Model Number:
-
BORX-18-45S
-
Product name:
-
Auto meter winding tie machine
-
Winding inner diameter range:
-
50 -200mm
-
Suitable for cable tie length range:
-
120-190mm
-
Inner diameter of the bundled coil:
-
75
-
Rated power:
-
500W
-
Standard disc diameter:
-
320mm can be customized
-
Winding speed:
-
1-13 laps/sec
-
Tie up speed:
-
0.6 seconds/time
-
Dimension:
-
1100*440*430
-
Weight:
-
80KG
Quick Details
-
Use:
-
WINDING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BORX
-
Model Number:
-
BORX-18-45S
-
Product name:
-
Auto meter winding tie machine
-
Winding inner diameter range:
-
50 -200mm
-
Suitable for cable tie length range:
-
120-190mm
-
Inner diameter of the bundled coil:
-
75
-
Rated power:
-
500W
-
Standard disc diameter:
-
320mm can be customized
-
Winding speed:
-
1-13 laps/sec
-
Tie up speed:
-
0.6 seconds/time
-
Dimension:
-
1100*440*430
-
Weight:
-
80KG

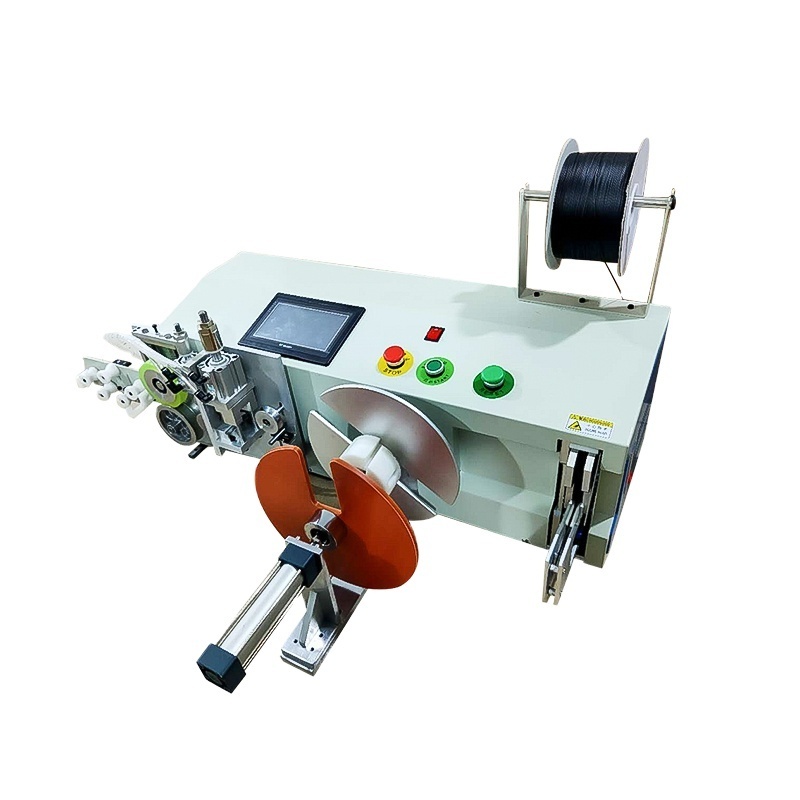

Automatic 14-45mm wire harness tape winding twist tie machine cable manufacturering rolling tying rewinding wires machine
- Adopt wheel drive conveying line, high efficiency and stability, more accurate meter counting and smaller error.
- Suitable for power cords, USB data cables, video cables, network cables, wires heaphone cables etc.
- The setting is simple and easy to understand, intelligent touch control, English and chinese language, intuitive and convenient to view and operate.
- Wide range of cable tie specifications: with iron core rubberized cable tie 1mm thick 3.9mm wide
- The standard disc diameter 320mm can also be equipped with the following 4 kinds of discs:220/280
- Shaft core diameter: 50-200 according to outer disc size (the finished product can't exceed the winding disc)
- The diameter range of the strapping position is also optional:8-30mm/18-45mm
| Product model | BORX-18-45S |
| Product name | Automatic meter widning and binding machine |
| Winding inner diameter range | 50-200MM |
| Suitable for cable tie length range | 120-190MM |
| Applicable stripping position diameter range | 18-45MM |
| Power supply | AC220V 50hz/60Hz |
| Weight | 80kg |
| Dimension | 1.1*0.5*0.43 |
