- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
330
-
Voltage:
-
220V 50Hz (Customized)
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CL
-
Dimension(L*W*H):
-
1050 * 850 * 2050 mm
-
Product name:
-
water liquid sachet packing machine
-
Model Number:
-
CL-1000
-
Measuring Scope:
-
50-550ML
-
Bag type:
-
Back sealing
-
Bag Size:
-
L: 50 -150 mm, W : 40- 150 mm
-
Packing Speed:
-
33 - 35 bags / hour
-
Packing material:
-
BOPP/Polyethylene, Aluminum/Polyethylene, Paper/Polyethylene
-
Voltage/Power:
-
AC220V / 50Hz / 1.6KW
-
Weight:
-
300 KG
-
After Warranty Service:
-
Video technical support
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling
-
Packaging Type:
-
Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
330
-
Voltage:
-
220V 50Hz (Customized)
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CL
-
Dimension(L*W*H):
-
1050 * 850 * 2050 mm
-
Product name:
-
water liquid sachet packing machine
-
Model Number:
-
CL-1000
-
Measuring Scope:
-
50-550ML
-
Bag type:
-
Back sealing
-
Bag Size:
-
L: 50 -150 mm, W : 40- 150 mm
-
Packing Speed:
-
33 - 35 bags / hour
-
Packing material:
-
BOPP/Polyethylene, Aluminum/Polyethylene, Paper/Polyethylene
-
Voltage/Power:
-
AC220V / 50Hz / 1.6KW
-
Weight:
-
300 KG
-
After Warranty Service:
-
Video technical support

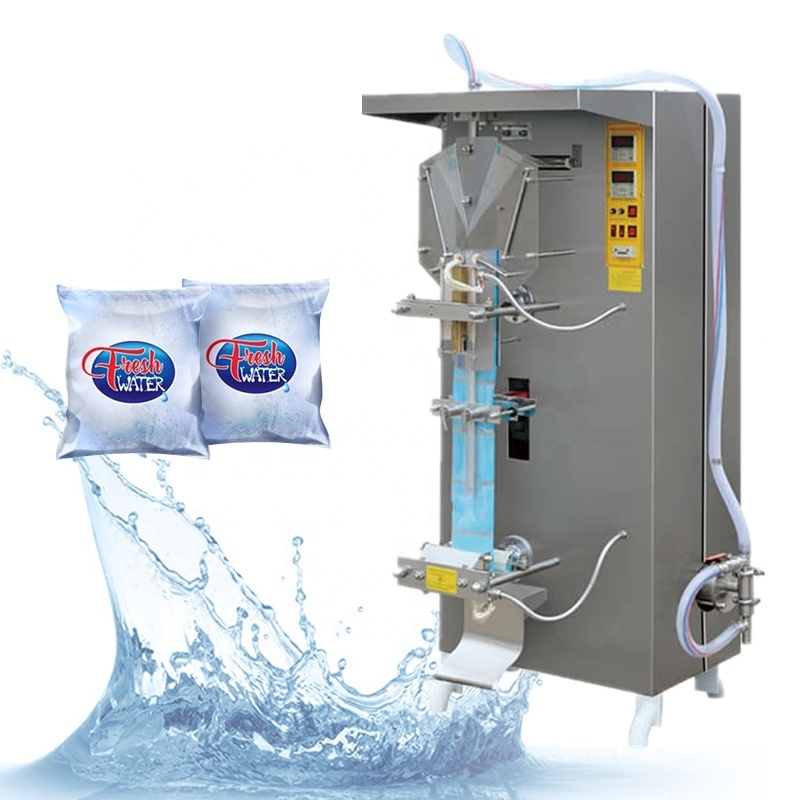

Product Overview
CL1000
Automatic
Water Sachet Filling Packing Machine
Characteristic
1. This machine has touch screen for easy operation, it can produce pouches automatically, the procedure includes Electric measure—filling liquid—sealing—cutting—counting—coding, it can be customized per your request. 2. Intelligent photoelectricity control device to ensure complete design of the sachet. Pulling pouch is driven by step motor and coding machine of the color code, the function is stable, convenient and accurate data.
1. This machine has touch screen for easy operation, it can produce pouches automatically, the procedure includes Electric measure—filling liquid—sealing—cutting—counting—coding, it can be customized per your request. 2. Intelligent photoelectricity control device to ensure complete design of the sachet. Pulling pouch is driven by step motor and coding machine of the color code, the function is stable, convenient and accurate data.
3. The contacting material and body is made of stainless steel 304, which complies with the standard of food licensing.
4. The sealing type is back sealed, the filling is measuring by volume pump piston, which has easy operation and accurate data.
Sealing Type
:
Back sealing
PRODUCT SPECIFICATIONS
|
Model
|
CL1000 liquid packing machine
|
CL2000 liquid packing machine
|
|
|
Filling Range
|
50-550ML
|
200-1000ML
|
|
|
Bag Size
|
L: 50-150(MM) W: 40-150(MM)
|
L: 50-250(MM) W: 40-175(MM)
|
|
|
Film Width
|
100-320MM
|
100-380MM
|
|
|
Packing Speed
|
2000-2200bags /hour
|
1100-1300bags /hour
|
|
|
Total Power
|
220V/50HZ /1.6KW
|
220V/50HZ /2.5KW
|
|
|
Dimenssion(L*W*H)
|
880*760*1800MM
|
1050*850*2050MM
|
|
|
Net Weight / Gross Weight
|
300KG/ 330KG
|
380KG/ 420KG
|
|
|
Application
|
Used for packing milk, the fermented bean curd, each kind of drink, the soy sauce, the vinegar, the liquor, etc.
|
|
|
Details Images
APPLICATION
Manufacturing Technique
Exhibition
Our Company
Wuhan Cailian Technology Co., LTD. is specializing in packaging machinery/Automatic intelligent packaging machinery. Since its establishment, the company has always adhered to technological innovation and management innovation, focusing on the field of automatic intelligent packaging machinery, mainly in the production of tea packaging machine and food packaging machine. Mainly used in the tea industry, food industry, chemical industry, biochemical industry, seed industry, food industry, electronic industry, and also supply customized packing lines.
Adhering to the business philosophy of serving customers and supporting employees, Cailian upholds the core values of self-cultivation and self-cultivation, taking customers as the center, quality, efficiency and service in place and based on the market.
Certifications
SALES AND SERVICE NETWORK
