Quick Details
-
Model Number:
-
YR32
-
Specification:
-
YR32
-
Model description:
-
316 material pressure regulation valve, 260℃(500℉),Cv0.06,0.86kg
-
Application:
-
Can be used in gas field
-
Pressure controlled range:
-
0-6000psi
-
Weight:
-
1.5 kg
-
Material:
-
316L stainless steel and brass material
-
Maximum using temperature:
-
260℃(500℉)
-
MOQ:
-
1 pc
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Yunyi
-
Model Number:
-
YR32
-
Specification:
-
YR32
-
Model description:
-
316 material pressure regulation valve, 260℃(500℉),Cv0.06,0.86kg
-
Application:
-
Can be used in gas field
-
Pressure controlled range:
-
0-6000psi
-
Weight:
-
1.5 kg
-
Material:
-
316L stainless steel and brass material
-
Maximum using temperature:
-
260℃(500℉)
-
MOQ:
-
1 pc
Factory price back pressure valve regulator pressure relief valve
Description back pressure valve regulator
YR32 series back pressure regulator is with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

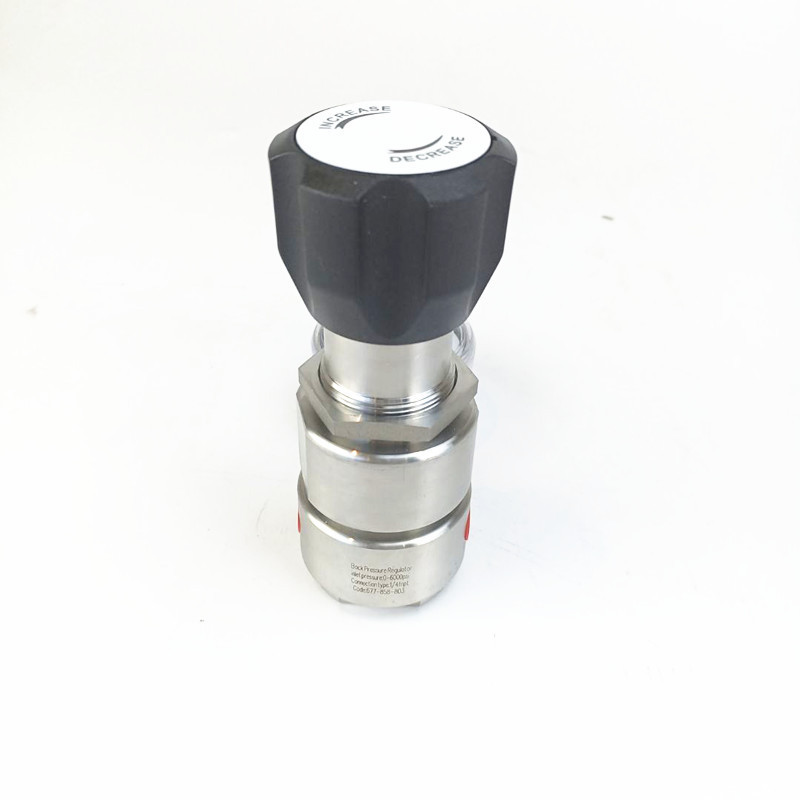

Detailed Images back pressure valve regulator
Specification back pressure valve regulator
The maximum input pressure: 6000 psi
Safety test pressure: 1.5 times max inlet pressure
Applicable temperature: -40℉~+165℉(-40℃~+74℃)
Leak rate: 2x10-8 atm cc/sec He
CV value: 0.2
Weight: About 1.5 kg
Package size: 17cm*17cm*17cm
Material: Stainless steel.
Features back pressure valve regulator
1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and w ith filter
4. Can use panel or wall mounting
Applications back pressure valve regulator
Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment
Selection Guide back pressure valve regulator
|
Model |
Valve material |
Inlet pressure |
Pressure gauge |
Inlet port |
Outlet port |
|
YR32 |
316L |
0-500psig 0-100psig 0-1500psig 0-2500psig 0-3000psig |
l With gauge (mpa) l With gauge (psig/bar) l Without gauge |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting 1/2'' fitting Or custom |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting 1/2'' fitting Or custom |
Outline drawing back pressure valve regulator
