Quick Details
-
Brand Name:
-
SODOWELL
-
Model Number:
-
TS-1010
-
Material:
-
ABS
-
Contact Form:
-
A type (normal open) contact.
-
Max. Contact Rating:
-
10W
-
Max. Switching Voltage:
-
200V
-
Max. Switching Current:
-
0.5A
-
Operating Temperature:
-
-10℃ ~ +80℃
-
OEM:
-
YES
-
Shock Resistance:
-
30G Max
-
Installation:
-
Recessed Mounting
-
Color:
-
White
-
Type:
-
Anti-Loss Alarm
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SODOWELL
-
Model Number:
-
TS-1010
-
Material:
-
ABS
-
Contact Form:
-
A type (normal open) contact.
-
Max. Contact Rating:
-
10W
-
Max. Switching Voltage:
-
200V
-
Max. Switching Current:
-
0.5A
-
Operating Temperature:
-
-10℃ ~ +80℃
-
OEM:
-
YES
-
Shock Resistance:
-
30G Max
-
Installation:
-
Recessed Mounting
-
Color:
-
White
-
Type:
-
Anti-Loss Alarm

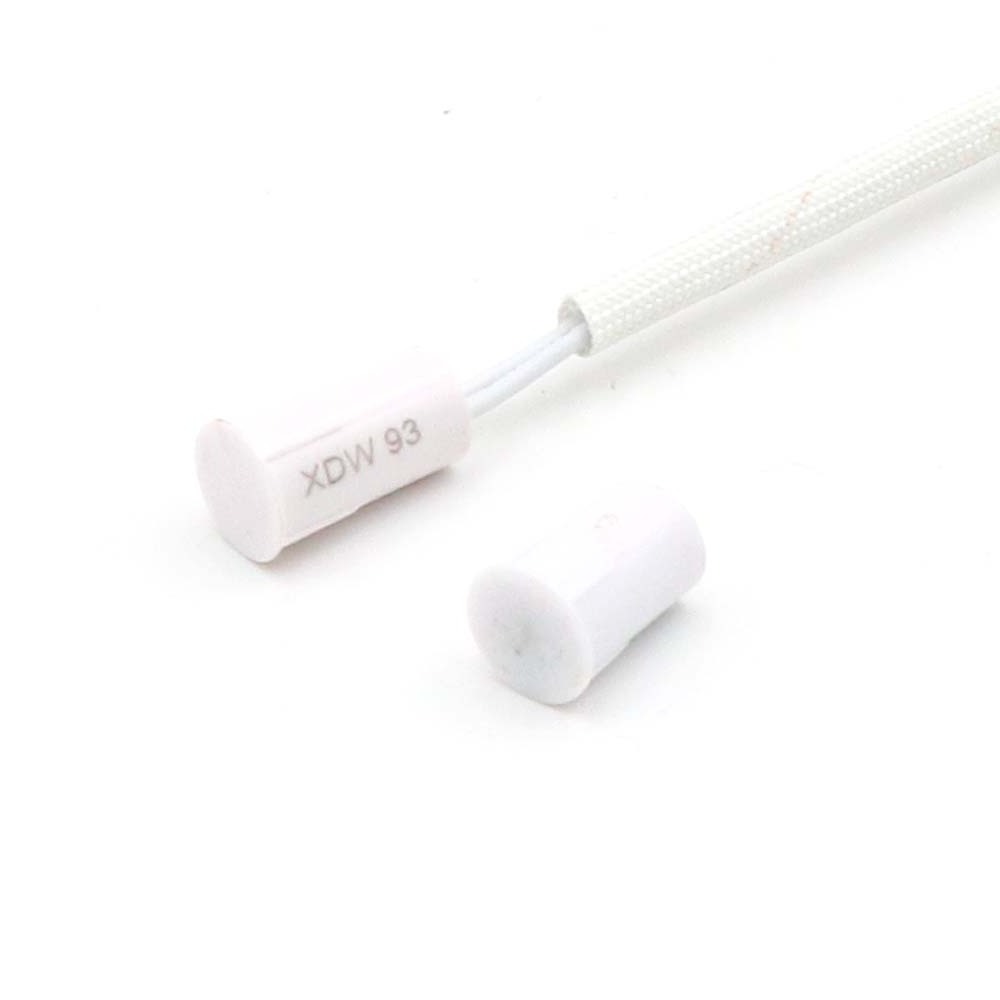

Magnetic contacts switch Reed sensor proximity sensor switch for safety equipment
| Magnetic proximity switch working thoery |
A proximity switch consists of two parts: a magnetic part which contains a permanent magnet inside; and a sensor part which contains a reed switch. When these two magnetic parts get close enough, by electromagnetic induction,it will connect the electrical circuit. And this distance is called "detection distance." Usually, one of these two parts is installed on a stable position, and the other one is installed on a moveable object to connect or disconnect the circuit.
| Features |
Special design,easy to install
Long working life
Material: ABS
Connect mode: N.O./N.C. for options
Sensing distance: 15-25mm, can be customized on your requested.
| Technical Paramter |
| Contact Form | N.O. | NC / SPDT | |||
| Contact Rateing | 10W | 30W | 50W | 100W | 3W |
| Max Switch Voltage | DC 200V | DC 200V | DC 350V | DC 350V | DC 30V |
| Max Switch Current | 0.5A | 0.5A | 0.5A | 1.0A | 0.2A |
| Breadown Voltage | DC 250V | DC 250V |
DC 600V
(PI35 Min) |
DC 1000V |
DC 200V
(PI20 Min) |
| Operating Temp. | -20~80℃ | ||||
| Sensing Distance | ≥20mm | ≥10mm | |||
