Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/SHOUHAN
-
Model Number:
-
EBS30
-
Product name:
-
on-off self latching switch ESB30 series
-
Electrical life:
-
30,000 Cycles
-
Operating force:
-
2.5N±1.0N/3.5N±1.5N
-
Opetation temperature:
-
-40℃~+85℃
-
Voltage Rating:
-
50μA3VDC~0.2A14VDC
-
Color:
-
Orange/Black
-
Operation type:
-
Self-lock/Non-lock
-
Lock travel:
-
2.5MM
-
Full Travel:
-
3.0MM
-
switching mode:
-
Non-shorting
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
0.2A
-
Max. Voltage:
-
14V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/SHOUHAN
-
Model Number:
-
EBS30
-
Product name:
-
on-off self latching switch ESB30 series
-
Electrical life:
-
30,000 Cycles
-
Operating force:
-
2.5N±1.0N/3.5N±1.5N
-
Opetation temperature:
-
-40℃~+85℃
-
Voltage Rating:
-
50μA3VDC~0.2A14VDC
-
Color:
-
Orange/Black
-
Operation type:
-
Self-lock/Non-lock
-
Lock travel:
-
2.5MM
-
Full Travel:
-
3.0MM
-
switching mode:
-
Non-shorting
-
Certification:
-
CE

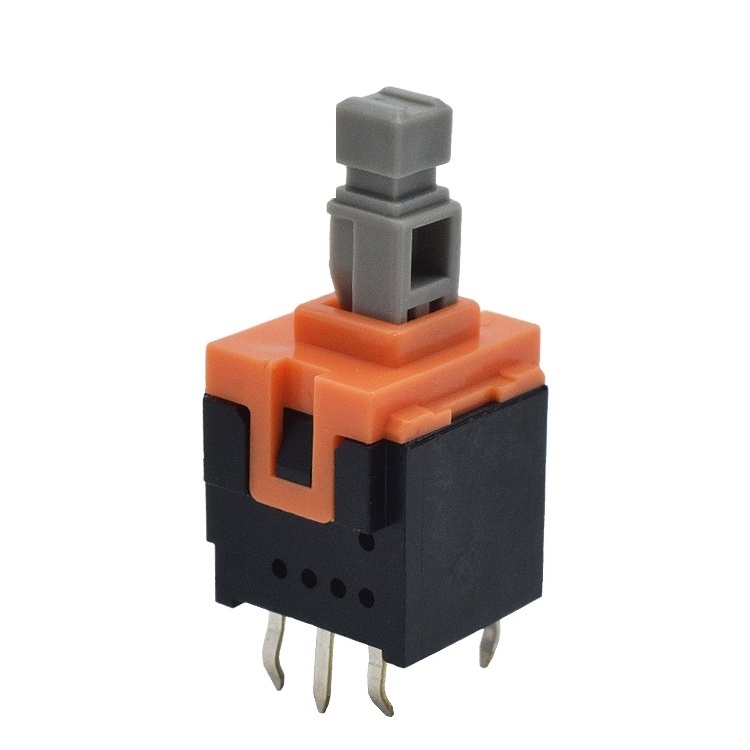

On-off push button switch ESB30B133/ESB30B304/ESB30B305
|
Product Name |
on-off push-button button switch ESB30 series |
|
Model |
ESB30B133/ESB30B304/ESB30B305 |
|
Install height |
12.5MM |
|
Lock travel |
2.5MM |
|
Full travel |
3.0MM |
|
Voltage rating |
50μA 3VDC~0.2A14VDC |
|
Lifetime |
30,000 Cycles |
|
Operating force |
2.0N±1.5N/3.5N±1.5N |
| Product‘s name | Operating Mode | Operating force | Lock travel | Full travel | Swithching Mode | Mouting Type | Terminal Type |
| ESB30B102 | Self-lock | 2.0N±1.0N | 2.5MM | 3.0MM | Non-shorting | Dip type | Formed terminal |
| ESB30B103 | Self-lock | 3.5N±1.5N | 2.5MM | 3.0MM | Non-shorting | Dip type | Straight terminal |
| ESB30B132 | Self-lock | 2.0N±1.0N | 2.5MM | 3.0MM | Non-shorting | Dip type | Straight terminal |
| ESB30B133 | Self-lock | 3.5N±1.5N | 2.5MM | 3.0MM | Non-shorting | Dip type | Formed terminal |
| ESB30B304 | Non-Lock | 2.0N±1.0N | 2.5MM | 3.0MM | Non-shorting | Dip type | Straight terminal |
| ESB30B305 | Non-Lock | 2.0N±1.0N | 2.5MM | 3.0MM | Non-shorting | Dip type | Formed terminal |
| ESB30B332 | Non-Lock | 3.5N±1.5N | 2.5MM | 3.0MM | Non-shorting | Dip type | Straight terminal |
| ESB30B333 | Non-Lock | 3.5N±1.5N | 2.5MM | 3.0MM | Non-shorting | Dip type | Formed terminal |
