Plane/Cylinder Semi-automatic silk screen printing machine for plastic cup silk screen printing machine for paper cups

Plane/Cylinder Semi-automatic silk screen printing machine for plastic cup silk screen printing machine for paper cups

FOB Reference Price: Get Latest Price

≥1 Sets

US $1850

≥3 Sets

US $1650

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: LC

Dimensions(L*W*H):: 850*850*1280mm

Weight:: 115 KG

Certification:: CE

Usage:: printing on Tube Printer, Cups, Bottles, Pens, etc

Operation:: pneumatic

For products:: cylinder or plane

(Round)Max Printing diameter:: 82mm

(Round)Max printing area:: 300*260mm

(oblate)Max printing diameter:: 420mm

Max printing speed:: 1300pcs/h

(flat) Max printing area:: 260*220mm

Air pressure:: 0.6Mpa

Product name:: Plane/Cylinder Semi-auto silk screen printing machine for plastic cup

Quick Details

Condition:: New

Color & Page:: Multicolor

Voltage:: AC220V

Place of Origin:: Guangdong, China

Brand Name:: LC

Dimensions(L*W*H):: 850*850*1280mm

Weight:: 115 KG

Certification:: CE

Usage:: printing on Tube Printer, Cups, Bottles, Pens, etc

Operation:: pneumatic

For products:: cylinder or plane

(Round)Max Printing diameter:: 82mm

(Round)Max printing area:: 300*260mm

(oblate)Max printing diameter:: 420mm

Max printing speed:: 1300pcs/h

(flat) Max printing area:: 260*220mm

Air pressure:: 0.6Mpa

Product name:: Plane/Cylinder Semi-auto silk screen printing machine for plastic cup

Are you still using manual screen printer?

Low efficiency

Low precision

High defective rate

Products Description

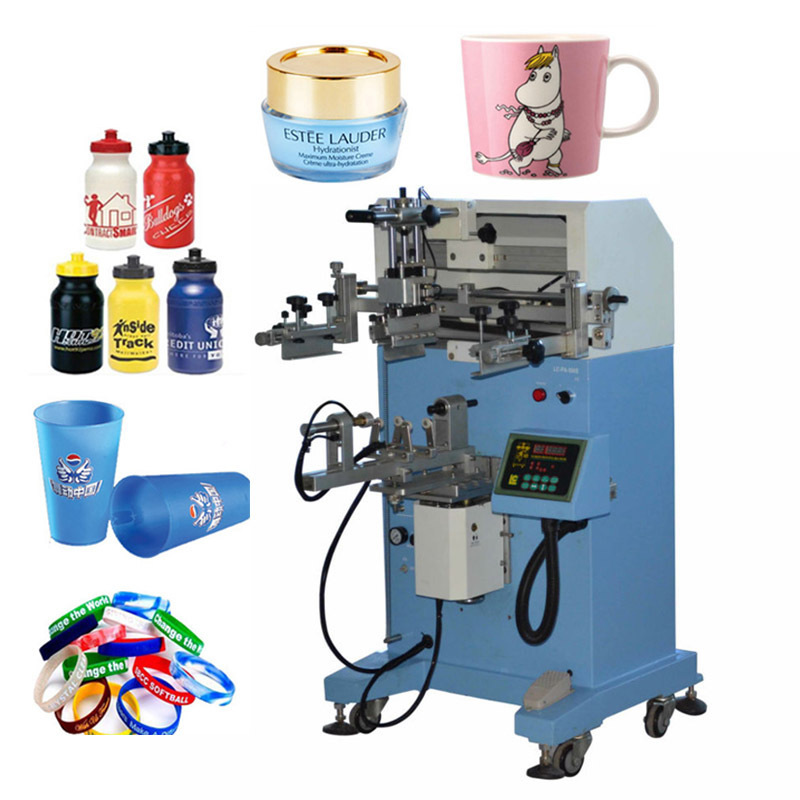

Semiautomatic Multifunctional Silk Screen Printing Machine LC-PA-300E

LC-PA-300E The screen printing machine is a multifunctional screen printing machine, suitable for printing on flat, oval, and cylindrical products such as plastic, glass, metal, ceramic, wood, etc.

Name	Semiautomatic Multifunctional Silk Screen Printing Machine
Model NO	LC-PA-300E	LC-PA-400E
Supported printing shapes	Flat / Oval / Cylinder
Voltage	220V
Driving method	pneumatic
Max printing flat area	*260220mm**	320*220mm
Printing diameter	82mm	120mm
Working air supply	6 bar
Max printing speed	1300 pcs/hour	1200 pcs/hour
Printing color	one by one	one by one
Machine size	*8508501280mm*	10808501280mm
Machine weight	115 kg	145 kg

Application

It is suitable to print on flat, oval, cylindrical-shaped products. Printing objects such as bottles, cups, cosmetic bottles, signs, tubes, etc.

Advantages
1. Vertical structure, with a four-digit automatic counter which convenient to record the number of printed products 2. Microcomputer fully automatic control, (Semi-automatic mode) start printing immediately after putting the product, easy to operate 3. Drivin system upgrade, printing knife holder constant speed movement, self-balancing scraper to balance printing pressure 4. Printing left and right sliding seat adopts bilinear guide rail and supporting pressure structure, accurate printing intensity, and precision 5. Double cylinder lifting, automatic oil scraping, oil return, and lifting platform 6. Adjustable workbench (up and down float) and grid (up and down float) 7. The main accessories use imported accessories, product quality assurance 8. Foot emergency stop switches to ensure production safety.

Machine Structure
