Quick Details
-
Model Number:
-
air water hose
-
Name:
-
Air Water hose
-
Certification:
-
ISO9001:2008
-
Material:
-
NBR or synthetic rubber
-
Reinforcement:
-
High Tensile Textile Cords
-
Size:
-
1/4"~2"
-
Color:
-
black or as your require
-
Feature:
-
oil - resistant, weather resistance
-
Application:
-
hydraulic fluids,glycol ,mineral oil fuels , emulsion
-
Business type:
-
Manufactrer/Factory
-
Length:
-
50/100meters
Quick Details
-
Processing Service:
-
Moulding, Cutting, assembly
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIAHAO
-
Model Number:
-
air water hose
-
Name:
-
Air Water hose
-
Certification:
-
ISO9001:2008
-
Material:
-
NBR or synthetic rubber
-
Reinforcement:
-
High Tensile Textile Cords
-
Size:
-
1/4"~2"
-
Color:
-
black or as your require
-
Feature:
-
oil - resistant, weather resistance
-
Application:
-
hydraulic fluids,glycol ,mineral oil fuels , emulsion
-
Business type:
-
Manufactrer/Factory
-
Length:
-
50/100meters
Fiber braid reinforcement 300psi rubber LPG natural gas hose propane hose for industrial or family use
Profile of our Rubber Insutrial Air Water Hose:
Product structure:
high pressure hydraulic hose is mainly composed of inner rubber lining,steel wire braid and outer rubber lining,The inner rubber lining is made of rubber and transfer the pressure to the medium to protect the steel wire from corroding ,and the outer rubber lining is used to protect the steel wire from wearing while the steel wire is used to enforce the tube.
Working temperature:
a. Oil: -40°C to +100°C,
b. Air: -30°C to 50°C,
c. Water Emulsion: up to +80°C
Product Features:
1)Hose special selection made with synthetic rubber with excellent oil resistance, heat aging resistance.
2)Hose high pressure, pulse performance.
3)tube tightly, use a soft, small deformation under pressure.
4)hose has excellent resistance around the song and fatigue resistance.
5)weaving, winding hose length, can be even up to ten meters or even one hundred meters or more.
Water/Air Hose Technical Date
|
I.D. |
O.D. |
Working Pressure |
Burst Pressure |
Bending Radius |
Weight |
|
mm |
mm |
Bar |
Bar |
mm |
kg/m |
|
10 |
18 |
30 |
90 |
130 |
0.30 |
|
12.5 |
23 |
30 |
90 |
180 |
0.46 |
|
16 |
26 |
25 |
75 |
210 |
0.53 |
|
19 |
29 |
25 |
75 |
240 |
0.60 |
|
25 |
35 |
20 |
60 |
375 |
0.93 |
|
31.5 |
42 |
15 |
45 |
420 |
1.25 |
|
38 |
48 |
15 |
45 |
500 |
1.47 |
|
50 |
64 |
12 |
36 |
630 |
1.92 |
|
76 |
90 |
8 |
24 |
1140 |
2.96 |
|
100 |
120 |
6 |
18 |
1530 |
4.30 |
More introductions about us:
JiaHao Technology Co., Ltd.
is located in Hebei province. We have 20 years’ experience in producing high quality rubber hose and pvc hose.We are specialized in hydraulic rubber hose, industrial rubber hose, pvc hose, metal hose, crimping machine, rubber hose assembly and various fittings.We’ve got ISO9001 quality management system certification. With constant expansion of business in recent years, the products are sold to all over the country and on foreign markets.

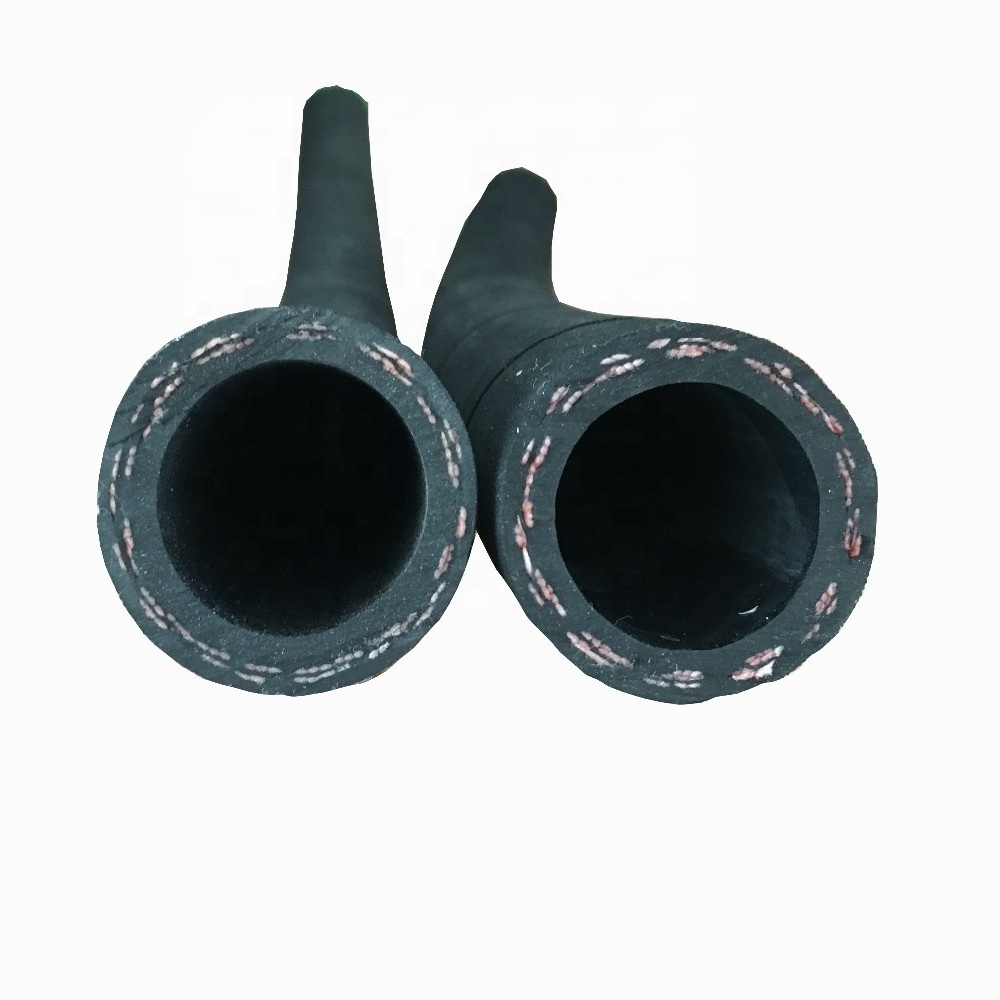

Rubber Insutrial Hydraulic Hose picture:
Work shop of Rubber Insutrial Hydraulic Hose:
Other types of our hydraulic hose
1) Steel Wire braided Hydraulic hose ( One or Two steel wire braided layer) :
SAE 100 R1AT / DIN EN 853 1SN ,
SAE 100 R2AT / DIN EN 853 2SN;
DIN-EN 857 1SC DIN-EN 857 2SC ;
SAE 100 R1 A / DIN EN 853 1ST.
SAE 100 R2 A / DIN EN 853 2ST;
SAE J517 TYPE 100 R16
2) Multi Spiral Hydraulic hose ( Four or Six high tensile steel wire spiral layer):
DIN EN856 4SP ,
DIN EN856 4SH ,
SAE J517 TYPE 100 R9
our services:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
