- Product Details
- {{item.text}}
Quick Details
-
Controller Battery:
-
Battery
-
servo type:
-
standard digital servo motor
-
servo torque:
-
25kg torque servo motor
-
servo motor:
-
core motor rc servo
-
servo gear:
-
steel metal gear servo motor
-
servo horn swing:
-
servo with 25T metal swing servo
-
servo rotation angle:
-
180 degree servo motor
-
servo speed:
-
0.1s high speed servo motor
-
servo voltage:
-
7.4V standard servo motor
-
servo function:
-
rc servo for 1/8 1/10 rc remote control car toy
-
servo apply:
-
for diy robotic arm rc helicopter rc truck
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FT5325M
-
Remote Distance:
-
10m
-
Controller Battery:
-
Battery
-
servo type:
-
standard digital servo motor
-
servo torque:
-
25kg torque servo motor
-
servo motor:
-
core motor rc servo
-
servo gear:
-
steel metal gear servo motor
-
servo horn swing:
-
servo with 25T metal swing servo
-
servo rotation angle:
-
180 degree servo motor
-
servo speed:
-
0.1s high speed servo motor
-
servo voltage:
-
7.4V standard servo motor
-
servo function:
-
rc servo for 1/8 1/10 rc remote control car toy
-
servo apply:
-
for diy robotic arm rc helicopter rc truck

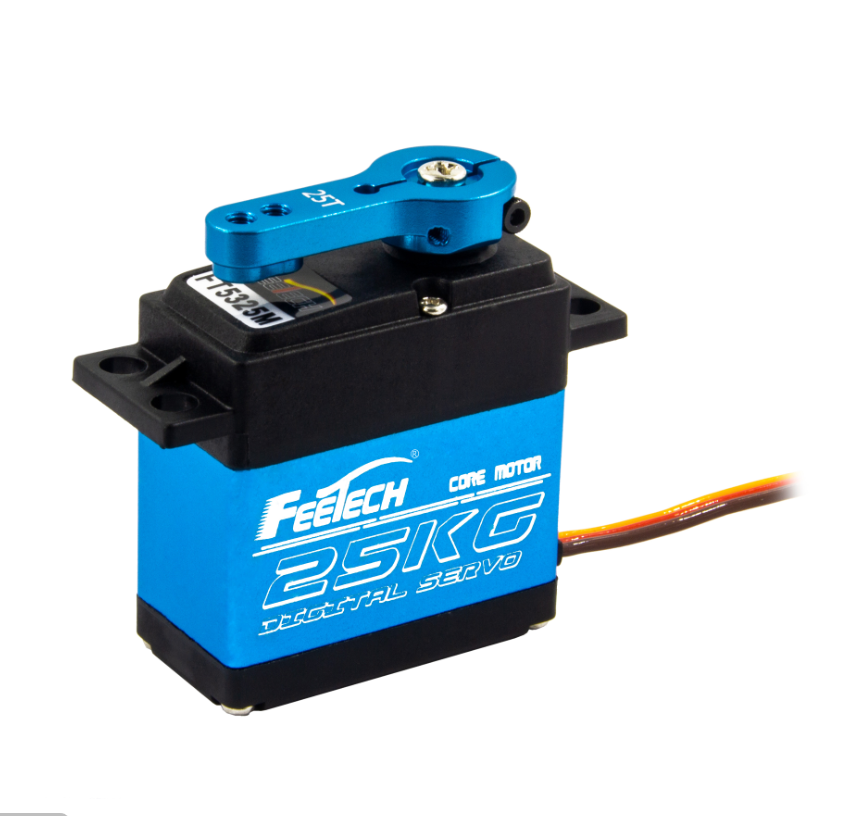

25KG Waterproof High Torque Metal Gear Standard Digital Servo
High performance digital standard servo, can be common use in robots, mechanical arms, climbing cars and remote control toys.
The main features are fast heat dissipation, big torque high compatibility, sensitive and responsive ect.
Good choice for university professors and students who are interested in developing software for robot parts.
Features:
Advanced linearity and accuracy with precision potentiometers,stable,low noise,water-proof rubber seals screws.
Large Torque - 25kg.cm /7.4V
High Quality - Equipped with High-precision strong copper/steel gears,CNC aluminum middle case.
High Rotation- Well-controlled, default 180 degree rotation(270 degree is available, please send message to us),
360 degree rotation when power-off, perfect for robot joint activities
Smart Control-Overload,Over temperature protection
Support Customized
Good choice for university professors and students who are interested in developing software for robot parts.
Features:
Advanced linearity and accuracy with precision potentiometers,stable,low noise,water-proof rubber seals screws.
Large Torque - 25kg.cm /7.4V
High Quality - Equipped with High-precision strong copper/steel gears,CNC aluminum middle case.
High Rotation- Well-controlled, default 180 degree rotation(270 degree is available, please send message to us),
360 degree rotation when power-off, perfect for robot joint activities
Smart Control-Overload,Over temperature protection
Support Customized
Products Description
FT5325M
Weight: 67土1g
Size : 55*20*43mm
Gear : Steel Gear
Motor : Core motor
Horn gear spline: 25T /5.9mm
Servo cable: 30cm with JR connector
Voltage range: 6-7.4V
No load speed: 0.151s/60°/7.4V
No load current: 120mA/7.4V
Stall torque: 25kg.cn/7.4V
Stall current: 3.5A/7.4V
Back Lash: ≦0.5°
Dead Band Width : ≤4 μsec
The rocker screw: M3X6
Electronic Protection: Stall 8sec
Running degree: 180° （CCW at 500-> 2500 μsec )
Running degree: 180° （CCW at 500-> 2500 μsec )
Operating Temperature Range: -20℃～60℃
|
Pulse Width Range
|
500→2500 μsec
|
|
Neutral Position
|
1500 μsec
|
|
Rotating Direction
|
Counterclockwise(at 1500 →2000 μsec)
|
|
Left&Right Travelling Angledeviation
|
≤ 5°
|
|
Centering Deviation
|
≦1°
|
|
Electronic Protection
|
Stall 8sec
|
|
Temperature protection
|
>70°C
|
Details Images
Application
Our Company
Shenzhen FEETECH RC Model Co., Ltd was established in 2011.
We are a research and development, customization, production and sale of high-quality servos for artificial intelligence products company.
It is committed to providing customized servo and industry solutions for enterprise users, and has been highly recognized and widely adopted by the partners.
Feetech make arduous efforts to promote the artificial intelligence industry development . The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology.
We look forward to working with you to build a better future together!
Contact Us
Choose our,you can:
1.Your Logo label or print
2.Servo Wire:length,wire core,wire color.
3.Packing:PE Bag,Color Box,plastic box with your Logo
4.Cable connector:1-4 pin JR,JST, XH
5.Output Gear:
The material:Plastic,Copper,steel,aluminium.
Output teeth:25 T Spline,hexagonal,and so on
6.CNC case:Case structure,color
7.Electronic function More......
Our Services & Strength
Specialized in ODM and OEM and Custom Made we can provide electronic design, structure design and production of 0 one-stop
customized service, Please feel free to share with me your idea.
Specialized in ODM and OEM and Custom Made we can provide electronic design, structure design and production of 0 one-stop
customized service, Please feel free to share with me your idea.
If the servo does not match your requirements , please do not hesitate to contact with us, we have hundreds of servos for optional, and we are professional servo manufacturer since 2011, customizing servo as per requirements is our advantage.
FAQ
Quality Control:
To guarantee our quality, our QC will inspect the goods from the following steps:
1. Raw materials, to control the quality from the source.
2. Semi-finished products.
3. Before package, our QC will inspect the 100% goods .
To guarantee our quality, our QC will inspect the goods from the following steps:
1. Raw materials, to control the quality from the source.
2. Semi-finished products.
3. Before package, our QC will inspect the 100% goods .
First, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
2.The price you are offering is with shipping costs included?
The price does not include the shipping cost.We offer several shipping solutions,make sure customers choose the most economical one.
The price does not include the shipping cost.We offer several shipping solutions,make sure customers choose the most economical one.
3
. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
4.what can you buy from us ?
We are specialized in servos,manufacturing various kinds of servos:programmable servo, robotic servo, digital servo,analog servo,485 S-bus intellegent servo etc.
We are specialized in servos,manufacturing various kinds of servos:programmable servo, robotic servo, digital servo,analog servo,485 S-bus intellegent servo etc.
5. How do contact us ?
Please send an inquiry .
