Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Traditional
-
Place of Origin:
-
China
-
Brand Name:
-
TITAN
-
Product Name:
-
Drywall Light Steel C Channel Weight Ceiling Framing
-
Material:
-
Galvanized Sheet,Galvanized Steel
-
Zine Coted:
-
GB:80g--275g; ASTM:G60-G90
-
Height:
-
25/30/32/35/40mm
-
Width:
-
50/65/70/90/100mm
-
Thickness:
-
0.45~1.0mm
-
Perforated:
-
Is perforated or not
-
Function:
-
Fireproof, Waterproof, Rustproof, Heat Insulation,Smoke-proof
-
Certificate:
-
Ce
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Traditional
-
Place of Origin:
-
China
-
Brand Name:
-
TITAN
-
Product Name:
-
Drywall Light Steel C Channel Weight Ceiling Framing
-
Material:
-
Galvanized Sheet,Galvanized Steel
-
Zine Coted:
-
GB:80g--275g; ASTM:G60-G90
-
Height:
-
25/30/32/35/40mm
-
Width:
-
50/65/70/90/100mm
-
Thickness:
-
0.45~1.0mm
-
Perforated:
-
Is perforated or not
-
Function:
-
Fireproof, Waterproof, Rustproof, Heat Insulation,Smoke-proof
-
Certificate:
-
Ce

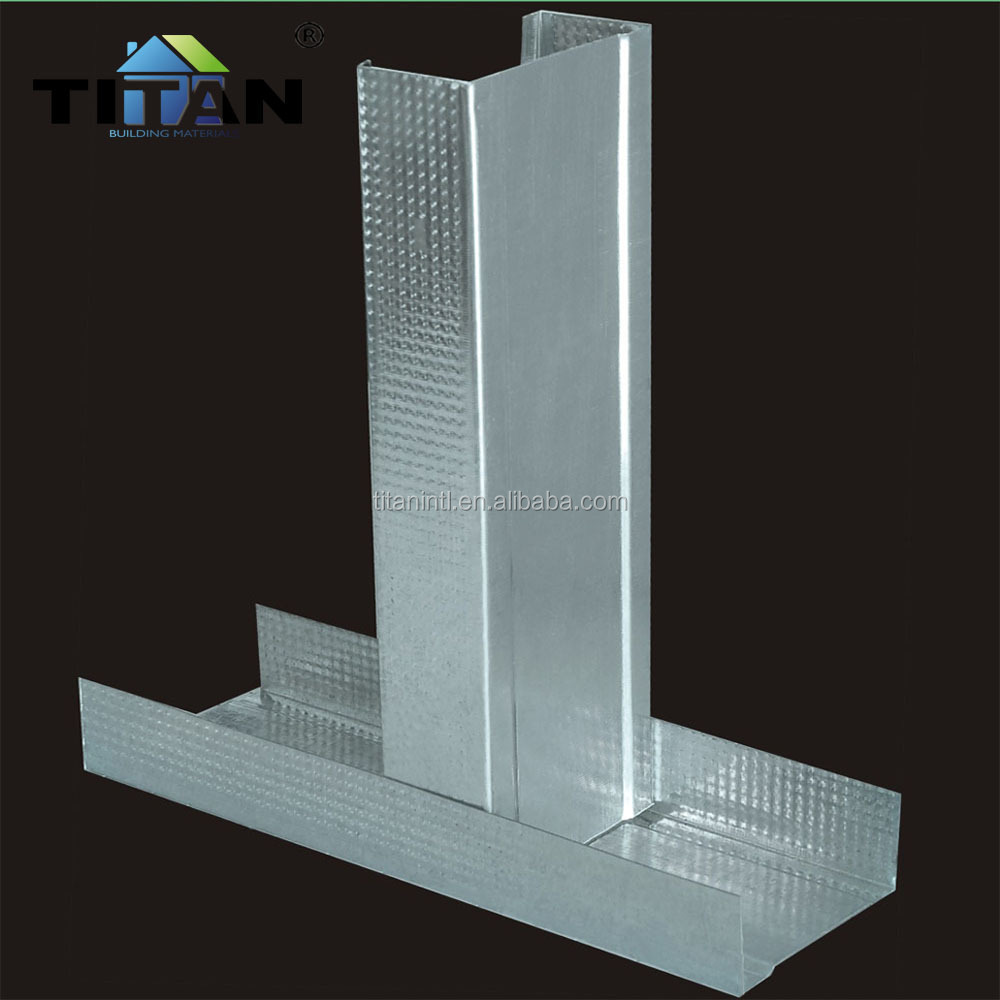

Drywall Light Steel C Channel Weight Ceiling Framing
Metal Profile
Metal Profile is made of galvanized steel sheet with good rust-proof function.The
thickness is strictly according to the international demand.
Main Characteristic
1.Galvanized Zinc coating will protect the channel from being rust;
2.Flexibility of application makes each ceiling tile/plasterboard easily installed and
disconnected;
3.Size adjustability can easier to match your request;
4.High quality leads longer life span & higher strength;
5.Better function of dealing with both high tensile stress and blending stress.
6. Easy and fast for installation,time-saving
|
Item |
Thickness |
Height |
Width |
Length |
|
Metal Stud (C Stud) |
0.4 / 0.45 / 0.5 / 0.6 mm |
35 mm |
50 mm |
3000 mm |
|
0.4 / 0.5 / 0.6 mm |
40 mm |
3000 mm |
||
|
0.5 / 0.6 mm |
50 mm |
3000 mm |
||
|
0.4 / 0.5 / 0.6 mm |
35 mm |
65 mm |
3000 mm |
|
|
0.4 / 0.5 / 0.6 mm |
35 mm |
70 mm |
3000 mm |
|
|
0.4 / 0.5 / 0.6 mm |
40 mm |
70 mm |
3000 mm |
|
|
0.4 / 0.45 / 0.5 mm |
35 mm |
75 mm |
3000 mm |
|
|
0.45 / 0.5 / 0.6 mm |
45 mm |
75 mm |
3000 mm |
|
|
0.5 / 0.6 / 0.8 mm |
50 mm |
75 mm |
3000 mm |
|
|
0.5 / 0.6 / 0.8 / 1.0 mm |
50 mm |
100 mm |
3000 mm |
|
|
0.8 / 1.0 mm |
50 mm |
120 mm |
3000 mm |
|
|
Metal Track (U Track) |
0.4 / 0.5/ 0.6 mm |
30 mm |
50 mm |
3000 mm |
|
0.4 / 0.45 / 0.5/ 0.6 mm |
40 mm |
3000 mm |
||
|
0.4 / 0.5 / 0.6 mm |
30 mm |
65 mm |
3000 mm |
|
|
0.4 / 0.5 / 0.6 mm |
30 mm |
70 mm |
3000 mm |
|
|
0.4 / 0.5 / 0.6 mm |
35 mm |
3000 mm |
||
|
0.4 / 0.45 / 0.5 mm |
25 mm |
75 mm |
3000 mm |
|
|
0.45 / 0.5 / 0.6 mm |
35 mm |
75 mm |
3000 mm |
|
|
0.5 / 0.6 / 0.8 mm |
40 mm |
75 mm |
3000 mm |
|
|
0.5 / 0.6 / 0.8 / 1.0 mm |
40 mm |
100 mm |
3000 mm |
|
|
0.8 / 1.0 mm |
40 mm |
120 mm |
3000 mm |
|
|
Furring Channel |
0.4 / 0.45 / 0.5 mm |
22 mm |
35 mm |
3000 mm |
|
Main Channel (Main Runner) |
0.6 / 0.7 / 0.8 / 1.0 / 1.2 mm |
10 mm |
38 mm |
3000 mm |
|
0.5 / 0.8 / 1.0 / 1.2 mm |
12 mm |
3000 mm |
||
|
0.6 / 0.7 / 0.8 / 1.0 / 1.2 mm |
14 mm |
50 mm |
3000 mm |
|
|
0.8 / 1.0 / 1.2 mm |
15 mm |
3000 mm |
||
|
0.8 / 1.0 / 1.2 mm |
27 mm |
60 mm |
3000 mm |
|
|
Cross Channel (Cross Runner) |
0.35 / 0.4 / 0.45 / 0.5 / 0.6 / 0.7 / 0.8 mm |
19 mm |
50 mm |
3000 mm |
|
0.4 / 0.45 / 0.5 / 0.6 mm |
27 mm |
60 mm |
3000 mm |
|
|
Suspended Bar |
0.6 / 0.7 / 0.8 / 1.0 mm |
25 mm |
20 mm |
3000 mm |
|
0.6 / 0.7 / 0.8 / 1.0 mm |
28 mm |
20 mm |
3000 mm |
|
|
0.6 / 0.7 / 0.8 / 1.0 mm |
32 mm |
20 mm |
3000 mm |
|
|
Wall Angle (L Channel) |
0.4 / 0.45 / 0.5 mm |
25 mm |
25 mm |
3000 mm |
|
0.6 mm |
30 mm |
30 mm |
3000 mm |
|
|
0.45 / 0.5 mm |
32 mm |
32 mm |
3000 mm |
|
|
Corner Bead (Edge Bead) |
0.4 / 0.45 / 0.5 mm |
25 mm |
25 mm |
3000 mm |
|
0.45 mm |
30 mm |
30 mm |
3000 mm |
Metal Profile
|
Ceiling System Proportion |
|
|
Gypsum Board 1200×2400×9mm |
1 m 2 |
|
Main Runner |
1 m |
|
Cross Runner |
3~3.6 m |
|
Hanger |
2~3 pcs |
|
Main Runner Connector |
0.5 pcs |
|
Cross Runner Connector |
1 pcs |
|
Leveling |
4~6 pcs |
|
Sleeve Anchor |
1 set |
|
Cross Screw |
1 set |
|
Drywall Self Tapping Screw |
25~30 pcs |
|
Paper Joint Tape / Mesh Joint Tape |
1.5~2 m |
|
Partition System Proportion |
|
|
Gypsum Board 1200×2400×12mm |
2 m 2 |
|
Metal Stud |
2.2~3.6 m |
|
Metal Track |
0.7~1.4 m |
|
Intermediate Channel |
0.8~1.4 m |
|
Support Card |
4 pcs |
|
Drywall Self Tapping Screw |
25~30 pcs |
|
Paper Joint Tape / Mesh Joint Tape |
1.5~2 m |
